Specification

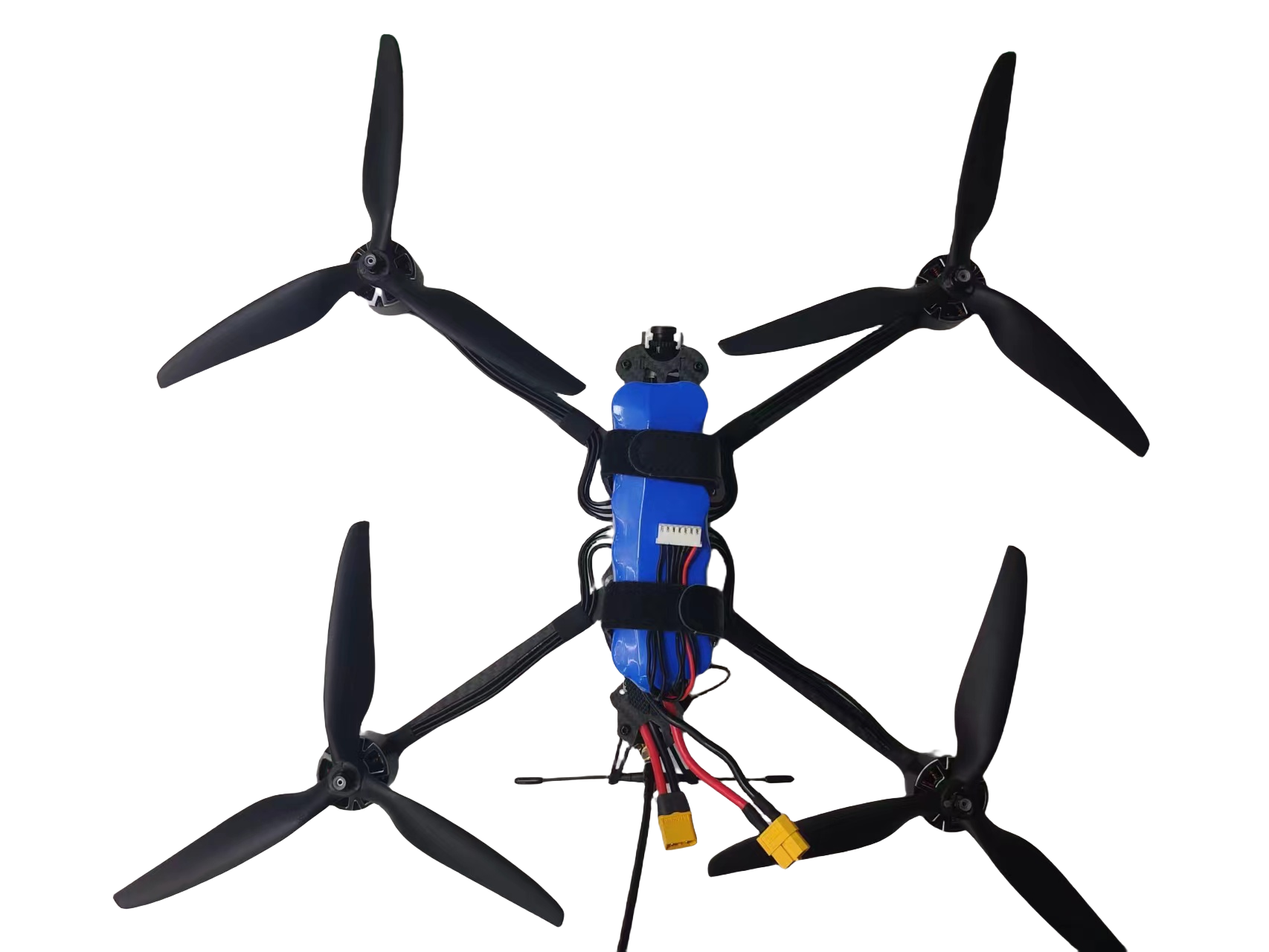

The 7-INCH COMPLETE FPV DRONE is an industrial-grade, ready-to-fly platform engineered for demanding FPV applications, including long-range reconnaissance, aerial surveying, and heavy-lift tasks. Its carbon fiber airframe integrates a high-efficiency propulsion system with a 2W video transmitter and a low-light camera, providing operators with exceptional situational awareness and control. This unit is factory-assembled and calibrated, minimizing setup time and maximizing field reliability.
| Parameter |
Specification |
| Model |
7-INCH COMPLETE FPV DRONE |
| Frame Material |
3K T300 Carbon Fiber |
| Product Dimensions (mm) |
230 x 280 x 50 |
| Product Net Weight (Drone Only) |
564 g |
| Product Weight (Single Box) |
672 g |
| Color |
Black |
| Packaging |
Box (310 x 260 x 70 mm) |
| Frame Arm Thickness |
6 mm |
| Frame Plate Thickness (Upper/Middle/Lower) |
2 mm / 3 mm / 3 mm |
| Flight Controller |
BL F405 (STM32F405 MCU, MPU6000/ICM42688-P gyro, AT7456E OSD) |
| Flight Controller Firmware |
F405 |
| Flight Controller BEC |
10V2A / 5V3A / 3.3V |
| Flight Controller Mounting Holes |
M3 x 30.5 x 30.5 mm |
| Flight Controller Weight |
8 g |
| ESC |
60A 4-in-1 (AM32 firmware) |
| ESC Continuous Current |
60A |
| ESC Peak Current |
65A (10s) |
| ESC Battery Compatibility |
3-6S LiPo |
| ESC Throttle Signal Support |
DShot300/600/1200, Standard PWM |
| Motors |
2810-1300KV |
| Motor Screw Hole Pitch |
19 mm |
| Motor Screw Holes |
M3 |
| Propellers |
7040 (Glass Fiber Nylon) |
| Video Transmitter |
5.8G 2W (48 channels) |
| VTX Input Voltage |
7-26V |
| VTX Output Power |
25 mW / 1600 mW / 2000 mW |
| FPV Camera Sensor |
1/3" CMOS |
| FPV Camera Resolution |
1800TVL |
| FPV Camera Field of View |
165° (Horizontal) |
| FPV Camera Lens |
2.1 mm |
| FPV Camera Video Format |
NTSC / PAL (adjustable) |
| FPV Camera Aspect Ratio |
16:9 |
| FPV Camera WDR |
Super WDR |
| FPV Camera Noise Reduction |
3DNR |
| FPV Camera Low Light Sensitivity |
0.0001 Lux |
| FPV Camera Video Output |
CVBS |
| FPV Camera Day/Night Mode |
External/Internal/Black & White/Color |
| FPV Camera Wide Voltage Input |
5-40V |
| FPV Camera Operating Temperature |
-20°C to +60°C |
| FPV Camera Weight |
5.9 g |
| FPV Camera Dimensions |
19 x 19 x 20 mm |
| Receiver |
ELRS915M |
| Recommended Battery |
6S 6000 mAh 50C |
| No-Load Flight Time |
21 minutes (with 6S 6000 mAh battery) |
| Payload Flight Time |
5.24 minutes (with 6S 6000 mAh battery, 3 kg load) |
| Maximum Speed |
112 km/h |
| Maximum Flight Range |
20 km |
| Maximum Payload |
3000 g |
| Maximum Takeoff Altitude |
5000 m |
| Accessories Included |
5.8G Long-Range Antenna, 20x250 Battery Straps (2 pcs), 7040 Propellers (1 CW set, 1 CCW set) |
| Optional Upgrades |
AI Locking Module, Infrared Thermal Imaging Module, Fiber-Optic Communication (3/5/10/15 km) |
