Specification

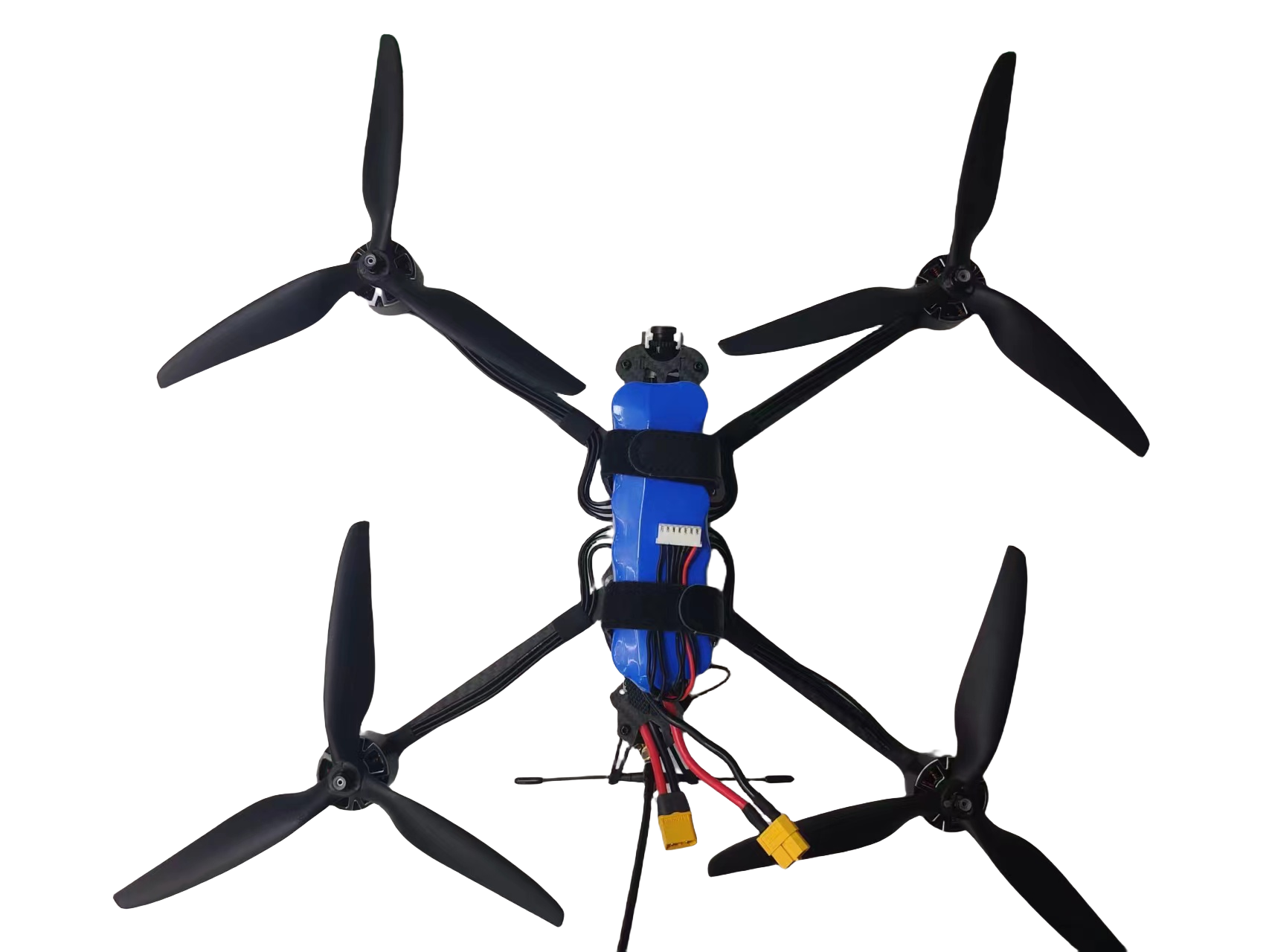

The 10-INCH COMPLETE FPV DRONE is a meticulously engineered, heavy-lift FPV platform designed for demanding aerial missions. Combining a lightweight yet incredibly strong 3K T300 carbon fiber frame with high-efficiency 3115-900KV motors and a robust 70A ESC, this drone delivers exceptional thrust-to-weight ratio and flight stability. It is equipped with a professional-grade 2W 5.8G video transmission system and a high-sensitivity 1800TVL night vision camera, ensuring superior situational awareness even in low-light conditions. With a maximum takeoff altitude of approximately 5000 meters and a no-load flight time of 24 minutes (with a 6s 8000mAh battery), this drone is the ideal choice for industrial inspection, search and rescue, and advanced FPV cinematography.
| Overall Specifications |
| Model |
10-INCH COMPLETE FPV DRONE |
| Frame Material |
3K T300 Carbon Fiber |
| Product Dimensions (mm) |
350 x 300 x 65 |
| Color Box Dimensions (mm) |
380 x 330 x 90 |
| Net Weight (Drone Only) |
791 g |
| Single Box Weight |
896 g |
| Packaging |
Box |
| Color |
Black |
| Frame Specifications |
| Arm Thickness |
7 mm |
| Upper Plate |
2 mm |
| Middle Plate |
3 mm |
| Lower Plate |
3 mm |
| Motor Specifications |
| Motor Model |
3115-900KV |
| Screw Hole Pitch |
19 mm |
| Screw Holes |
M3 |
| Electronic Speed Controller (ESC) Specifications |
| ESC Type |
70A 4-in-1 |
| Continuous Current |
70 A |
| Peak Current |
75 A (10s) |
| Lithium Battery Compatibility |
3-6S |
| Firmware |
AM32 |
| Max Throttle Signal |
DSHOT300/600/1200, Standard PWM |
| Flight Controller (FC) Specifications |
| FC Model |
BL F405 |
| MCU |
STM32F405 |
| Gyroscope |
MPU6000 / ICM42688-P |
| OSD |
AT7456E |
| BEC |
10V2A / 5V3A / 3.3V |
| Weight |
8 g |
| Mounting Holes |
M3 x 30.5 x 30.5 |
| Video Transmission (VTX) Specifications |
| Frequency |
5.8 GHz |
| Channels |
48 |
| Input Voltage |
7-26 V |
| Output Power |
25 mW / 1600 mW / 2000 mW |
| FPV Camera Specifications |
| Camera Type |
1800TVL Night Vision FPV Camera |
| Sensor |
1/3" CMOS |
| Horizontal Resolution |
1800 TVL |
| Horizontal Field of View |
165° |
| Lens |
2.1 mm |
| Video Format |
NTSC & PAL (adjustable) |
| Aspect Ratio |
16:9 |
| Wide Dynamic Range |
Super WDR |
| Noise Reduction |
3DNR |
| Low Light Sensitivity |
0.0001 Lux |
| Video Output |
CVBS |
| Day/Night Mode |
External / Internal / Black & White / Color |
| Languages |
English, Chinese, Traditional Chinese, Russian, Spanish, Italian, French, Polish, Portuguese, Japanese |
| Electronic Shutter |
PAL: 1/50 ~ 1/100,000; NTSC: 1/60 ~ 1/100,000 |
| Wide Voltage Input |
5-40 V |
| Operating Temperature |
-20°C to +60°C |
| Weight |
5.9 g |
| Dimensions (mm) |
19 x 19 x 20 |
| Receiver Specifications |
| Receiver Type |
ELRS 915M Receiver |
| Propeller Specifications |
| Propeller Size |
1050 (Carbon Fiber Nylon) |
| Recommended Battery |
| Battery Type |
6S 8000mAh 50C |
| Flight Performance |
| Max Takeoff Altitude |
~5000 m |
| Max Speed |
129 km/h |
| Flight Range |
Up to 20 km |
| Max Payload |
5000 g |
| No-Load Flight Time |
24 minutes (with 6S 8000mAh battery) |
| Payload Flight Time |
6.46 minutes (with 6S 8000mAh battery, 5 kg load) |
| Included Accessories |
| Antenna |
5.8G Long-Range Antenna |
| Battery Straps |
20 x 300 mm (2 pieces) |
| Propellers |
1050 Carbon Fiber Nylon (1 set CW, 1 set CCW) |
| Optional Accessories (Not Included) |
| Modules |
AI Locking Module, Infrared Thermal Imaging Module |
| Communication |
Fiber-Optic Communication (radio interference resistant) – 3, 5, 10, 15 km lengths available |
| Launcher |
Max capacity 7 kg |
