Specification

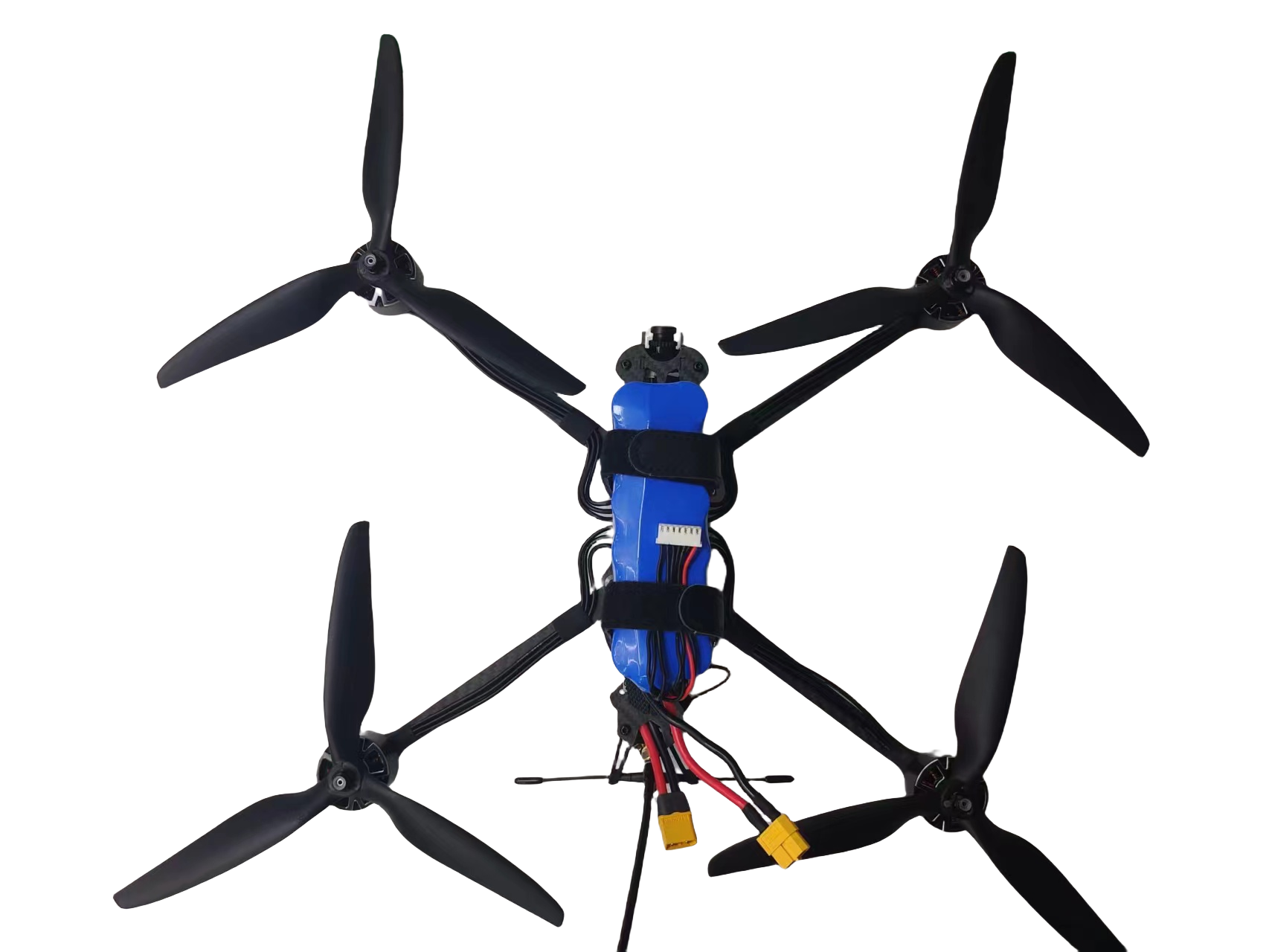

The 13-INCH COMPLETE FPV DRONE is a meticulously engineered aerial platform designed for industrial, commercial, and advanced hobbyist applications. This complete system integrates a robust carbon fiber airframe with a high-efficiency propulsion group, a sophisticated flight controller, and an advanced FPV suite, making it an ideal choice for tasks ranging from heavy payload transport to long-range reconnaissance. Every component, from the 4115 motors to the 80A ESC, is selected for maximum performance and reliability under demanding conditions.
| General Specifications |
| Product Model |
13-INCH COMPLETE FPV DRONE |
| Material |
3K T300 Carbon Fiber |
| Product Dimensions (mm) |
490 x 390 x 75 |
| Color Box Dimensions (mm) |
520 x 420 x 100 |
| Net Weight (Drone Only) |
1358 g |
| Gross Weight (Single Box) |
1524 g |
| Packaging |
Box |
| Color |
Black |
| Performance |
| Max Takeoff Altitude |
~5000 m |
| Max Speed |
74 km/h |
| Flight Range |
Up to 20 km |
| Max Payload Capacity |
7000 g |
| No-Load Flight Time (6s 12000mAh) |
32 minutes |
| Payload Flight Time (6s 12000mAh, 7kg load) |
7 minutes |
| Frame |
| Arm Thickness |
7 mm |
| Upper Plate |
2 mm |
| Middle Plate |
3 mm |
| Lower Plate |
3 mm |
| Material |
3K T300 Carbon Fiber |
| Motors |
| Motor Model |
4115 |
| KV Rating |
440 KV |
| Screw Hole Pitch |
19 mm |
| Screw Holes |
M3 |
| Electronic Speed Controller (ESC) |
| ESC Type |
80A 4-in-1 |
| Continuous Current |
80 A |
| Peak Current (10s) |
85 A |
| Lithium Battery Compatibility |
3-6S |
| Firmware |
AM32 |
| Supported Throttle Signals |
DShot300/600/1200, Standard PWM |
| Flight Controller |
| Model |
BL F405 |
| MCU |
STM32F405 |
| Gyroscope |
MPU6000 / ICM42688-P |
| OSD |
AT7456E |
| BEC |
10V 2A / 5V 3A / 3.3V |
| Weight |
8 g |
| Mounting Holes |
M3 x 30.5 x 30.5 |
| Video Transmission |
| Frequency |
5.8 GHz |
| Channels |
48 |
| Input Voltage |
7 - 26 V |
| Output Power |
25 mW / 1600 mW / 2000 mW |
| FPV Camera |
| Sensor |
1/3" CMOS |
| Horizontal Resolution |
1800 TVL |
| Horizontal Field of View |
165° |
| Lens |
2.1 mm |
| Video Format |
NTSC & PAL (adjustable) |
| Aspect Ratio |
16:9 |
| Wide Dynamic Range |
Super WDR |
| Noise Reduction |
3DNR |
| Low Light Sensitivity |
0.0001 Lux |
| Video Output |
CVBS |
| Day/Night Mode |
External/Internal/Black & White/Color |
| Wide Voltage Input |
5 - 40 V |
| Operating Temperature |
-20°C to +60°C |
| Weight |
5.9 g |
| Dimensions |
19 x 19 x 20 mm |
| Receiver |
| Receiver Type |
ELRS 915M Receiver |
| Propellers |
| Propeller Size |
1310 (Carbon Fiber Nylon) |
| Accessories Included |
| Antenna |
5.8G Long-Range Antenna |
| Battery Straps |
20 x 450 mm (2 pieces) |
| Propellers |
1310 (Carbon Fiber Nylon) - 1 CW set, 1 CCW set |
| Optional Modules |
| AI Locking Module |
Available |
| Infrared Thermal Imaging Module |
Available |
| Fiber-Optic Communication |
3, 5, 10, 15 km lengths available |
| Launcher |
Available upon request (max 7 kg) |
