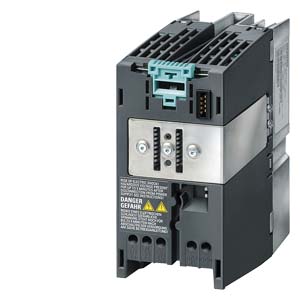

The SINAMICS G120 PM240 Power Module, identified by the article number
6SL3224-0BE17-5UA0, is a robust and reliable spare part designed for demanding industrial drive applications. This unfiltered power module integrates a braking chopper, enabling efficient energy dissipation during deceleration. Operating on a 380-480 V 3 AC supply at 47-63 Hz, it delivers 0.75 kW under high overload conditions, with a peak current capability of 200% for 3 seconds. The module is housed in a compact FSA frame size with IP20 protection, making it ideal for standard control cabinets. Below are the detailed technical specifications extracted from the original datasheet.
| Product Identification |
| Article Number |
6SL3224-0BE17-5UA0 |
| Product Description |
SINAMICS G120 PM240 Power Module, unfiltered, with integrated braking chopper |
| Product Lifecycle |
PM410: Product cancellation (effective 01.10.2019) |
| Electrical Specifications |
| Input Voltage |
380-480 V 3 AC +10/-10% |
| Input Frequency |
47-63 Hz |
| Rated Power (High Overload) |
0.75 kW |
| Overload Capability |
200% for 3 s, 150% for 57 s, 100% for 240 s |
| Braking Chopper |
Integrated |
| Mechanical Specifications |
| Frame Size |
FSA |
| Dimensions (H x W x D) |
173 x 73 x 145 mm |
| Degree of Protection |
IP20 |
| Net Weight |
1.100 kg |
| Packaging Dimensions (L x W x H) |
180 x 190 x 90 mm |
| Environmental & Compliance |
| Ambient Temperature |
-10 to +50 °C |
| RoHS Compliance |
Since 01.07.2006 |
| Country of Origin |
Great Britain |
| Export Control Regulations |
ECCN: N / AL: N |
| Logistics & Shipping |
| Estimated Dispatch Time |
1 working day |
| Packaging Quantity |
1 piece |
| Commodity Code |
85049090 |
| EAN |
4019169453585 |
| UPC |
662643434293 |
| Additional Notes |
| Spare Part Classification |
Standard product, stock item, returnable within guidelines |
| WEEE Take-Back Obligation |
Yes (2012/19/EU) |
| REACH Compliance |
Contains Lead (CAS-No. 7439-92-1 > 0.1% w/w) |
| SCIP Number |
30f0f3b7-013a-4645-9481-ff8a6c19e8fd |
