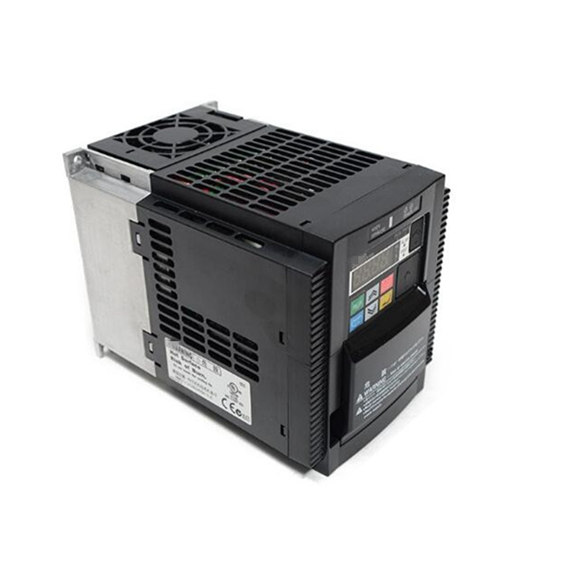

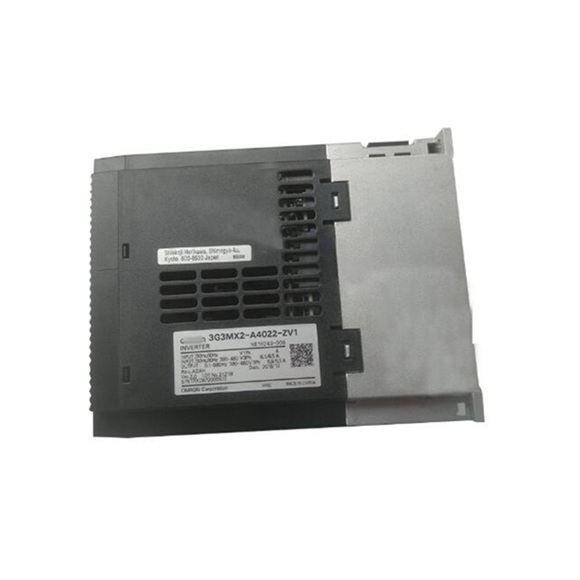

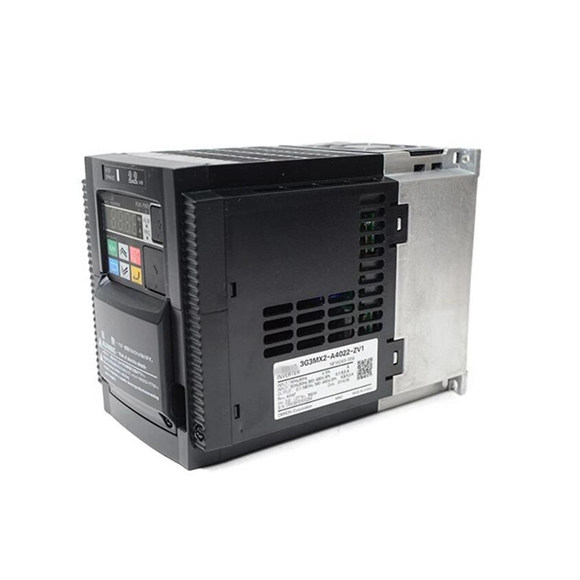

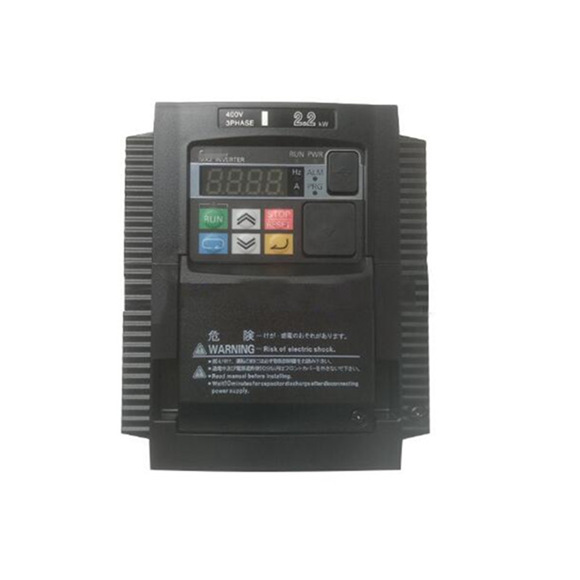

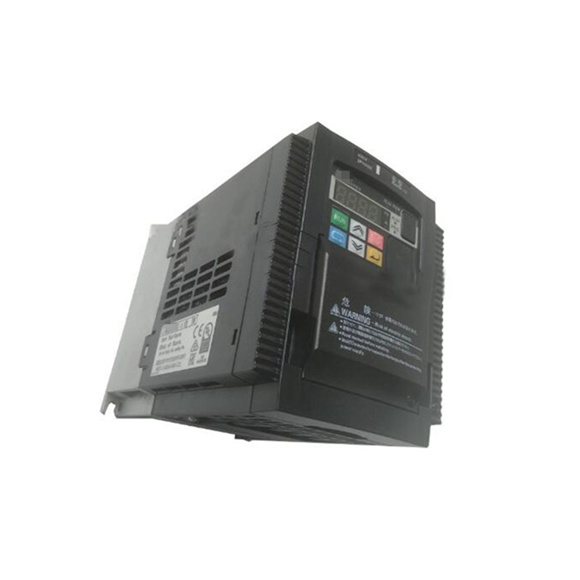

Omron Inverter 3G3MX2-A2110-V1 3G3MX2-A4110-V1

Series#: Omron

Product Details

Omron Inverter MX2 Series 3-phase 3G3MX2-A2110-V1 3G3MX2-A4110-V1 – high-performance general-purpose drive for industrial automation.
Delivers 200% starting torque at 0.5 Hz via sensorless vector control for demanding applications.
Wide output frequency range: 0.10 to 400 Hz (up to 580 Hz in high-frequency mode).
Robust overload capacity: 150% for 60 seconds (heavy duty) and 120% for 60 seconds (light duty).
Built-in Modbus-RTU (RS-485) and USB connectivity for seamless integration.
IP20 open-type enclosure, suitable for clean indoor environments.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Omron Inverter MX2 Series 3-phase 3G3MX2-A2110-V1 3G3MX2-A4110-V1 is a compact, feature-rich variable frequency drive engineered for precise motor control in a wide range of industrial applications. Combining sensorless vector control with a robust overload rating, this drive ensures reliable operation even under heavy loads. Its extensive I/O configuration, including 7 multi-function inputs and 2 analog inputs, offers exceptional flexibility for complex automation tasks. Ready for both simple and advanced systems, the MX2 series is a trusted choice for OEMs and system integrators worldwide.

Parameter	Specification
Enclosure Ratings	Open type (IP20)
Control Method	Phase-to-phase sinusoidal modulation PWM
Output Frequency Range	0.10 to 400 Hz (580 Hz max. in high-frequency mode)
Frequency Precision	Digital: ±0.01% of max. frequency; Analog: ±0.2% of max. frequency (25±10°C)
Frequency Setting Resolution	Digital: 0.01 Hz; Analog: 1/1000 of max. frequency
Voltage/Frequency Characteristics	V/f (constant/reduced torque), Sensorless vector control, V/f with speed feedback
Overload Current Rating	Heavy duty (CT): 150% for 60 s; Light duty (VT): 120% for 60 s
Instantaneous Overcurrent Protection	200% of heavy load rating (CT)
Acceleration/Deceleration Time	0.01 to 3600 s (linear/curve selection)
Carrier Frequency Adjustment Range	2 to 15 kHz (with derating)
Starting Torque	200% / 0.5 Hz (sensorless vector control)
External DC Injection Braking	Configurable via STOP command or external input
Protective Functions	Overcurrent, overvoltage, undervoltage, electronic thermal, ground fault, etc.
Frequency Settings	Digital Operator, analog input (0-10 VDC / 4-20 mA), Modbus-RTU
RUN/STOP Command	Digital Operator, external digital input, Modbus-RTU
Multi-function Input	7 points (68 selectable functions)
Analog Input	2 points (FV: 0-10 V, FI: 4-20 mA, 10-bit resolution)
Pulse Input	1 point (RP terminal, 32 kHz max., 5-24 VDC)
Multi-function Output	2 points (P1, P2, 47 selectable functions)
Relay Output	1 point (SPDT, 47 selectable functions)
Analog Output (Frequency Monitor)	1 point (AM terminal, 0-10 V, 10-bit)
Pulse Output	1 point (MP terminal, 32 kHz max., 0-10 V)
RS-422	RJ45 connector (for Digital Operator)
RS-485	Control circuit terminal block, Modbus-RTU
USB	USB 1.1, mini-B connector
Other Functions	AVR, V/f switching, 16-step speeds, PID, torque boost, USP, motor 2 control, etc.
Ambient Operating Temperature	-10 to 50°C (derating required)
Ambient Storage Temperature	-20 to 65°C
Ambient Operating Humidity	20% to 90% RH (non-condensing)
Vibration Resistance	5.9 m/s² (0.6G), 10 to 55 Hz
Application Environment	Max. altitude 1,000 m; indoors (no corrosive gases or dust)
EtherCAT Communication Unit	3G3AX-MX2-ECT
CompoNet Communication Unit	3G3AX-MX2-CRT-E
DeviceNet Communication Unit	3G3AX-MX2-DRT-E

Control & Performance: Sensorless vector control delivers 200% starting torque at 0.5 Hz, with V/f and speed feedback modes for versatile motor regulation.
Connectivity & Integration: Equipped with RS-485 (Modbus-RTU), USB, and optional fieldbus units (EtherCAT, CompoNet, DeviceNet) for seamless system networking.
Protection & Reliability: Comprehensive protective functions include overcurrent, overvoltage, ground fault, and thermal overload, ensuring long-term stability in harsh environments.
Flexible I/O: 7 multi-function inputs, 2 analog inputs, 1 pulse input, 2 multi-function outputs, and 1 relay output provide extensive customization for application-specific logic.
Environmental Tolerance: Rated for -10 to 50°C operating temperature, 20-90% RH humidity, and vibration resistance up to 5.9 m/s² at 10-55 Hz.
