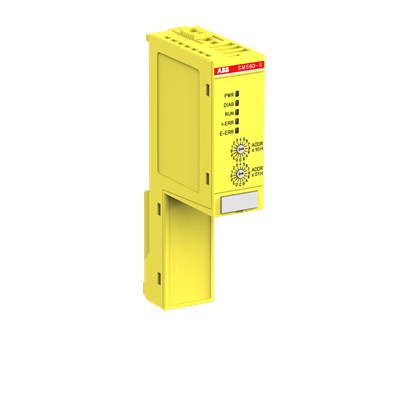

The SM560-S is a dedicated safety processor module belonging to the AC500-S family, engineered to deliver uncompromising functional safety in industrial automation environments. This SIL 3-capable module (per IEC 61508) serves as the safety logic solver for distributed control systems, ensuring fail-safe operation in applications such as emergency shutdown, burner management, and robotic cell protection. Its ultra-compact form factor (28 mm width, 135 mm height, 62 mm depth) and lightweight construction (0.087 kg net) allow for efficient panel layout, while the IP20 enclosure protects against solid objects. The SM560-S features 2000 kB of RAM for user data and achieves a controller processing time of 0.00005 ms, enabling real-time safety responses. With zero digital configurable I/Os and no hardware interfaces (Ethernet, RS-232, RS-485, USB, or wireless), it relies on the backplane bus for communication, ensuring deterministic safety data exchange. The module is classified under eClass 27-24-22-02 and ETIM 8 EC000236 (PLC CPU-module), and it is supplied as a single piece per package (gross weight 0.12 kg). Each unit is 100% original and new, shipped promptly to meet your project deadlines.
| Specification |
Value |
| Product Type |
Safety Processor Module |
| Model |
SM560-S |
| System Compatibility |
AC500-S |
| Safety Integrity Level (SIL) |
SIL 3 (IEC 61508) |
| Function |
Safety-related module up to SIL 3 |
| Memory Size (User Data) |
2000 kB |
| Memory Type |
RAM |
| Controller Processing Time |
0.00005 ms |
| Number of Digital Configurable I/Os |
0 |
| Hardware Interfaces |
Industrial Ethernet: 0, RS-232: 0, RS-422: 0, RS-485: 0, USB: 0, Wireless: 0 |
| Degree of Protection |
IP20 |
| Product Net Weight |
0.087 kg |
| Product Net Depth / Length |
62 mm |
| Product Net Height |
135 mm |
| Product Net Width |
28 mm |
| Gross Weight |
0.12 kg |
| Package Level 1 Dimensions (L x W x H) |
147 mm x 78 mm x 40 mm |
| Package Level 1 Units |
1 carton |
| Minimum Order Quantity |
1 piece |
| Order Multiple |
1 piece |
| Selling Unit of Measure |
piece |
| Made To Order |
No |
| Product Main Type |
DM560 |
| Product Name |
Distributed Automation PLCs |
| CN8 Code |
85389091 |
| eClass |
27-24-22-02 |
| ETIM 8 |
EC000236 - PLC CPU-module |
| UNSPSC |
32151802 |
| SCIP |
b627bf0c-8522-41fa-9f08-dc2ad7c05d59 (Germany) |
| WEEE B2C / B2B |
Business To Business |
| WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
