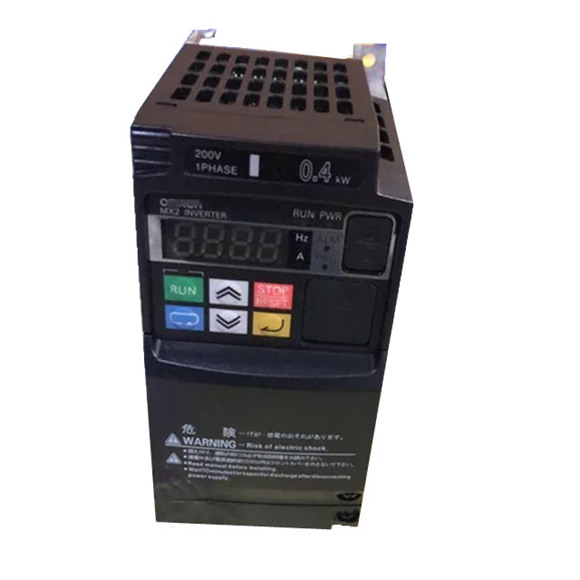

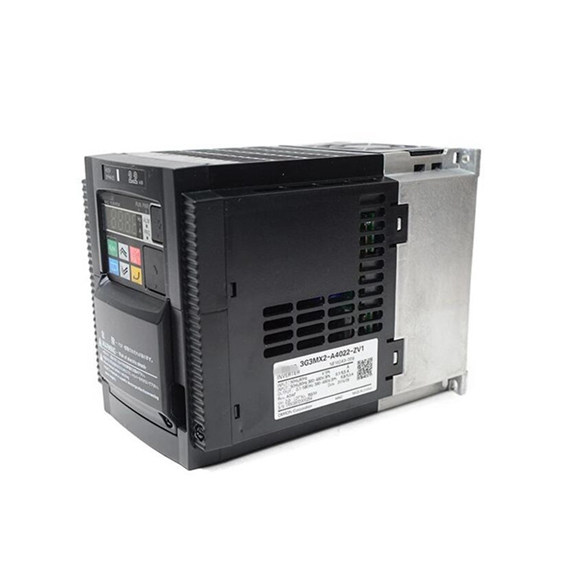

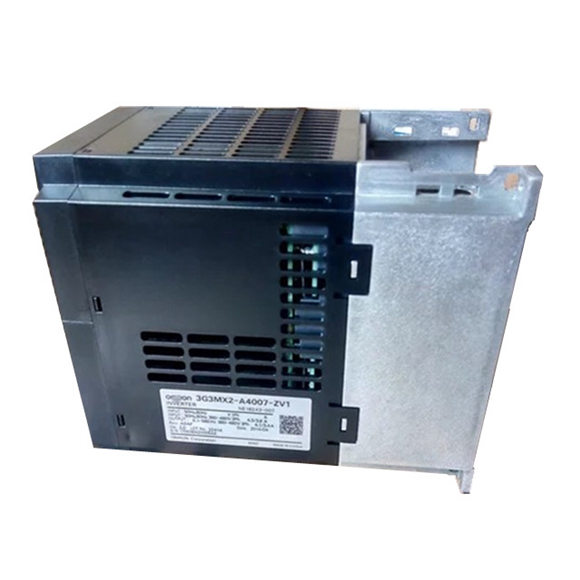

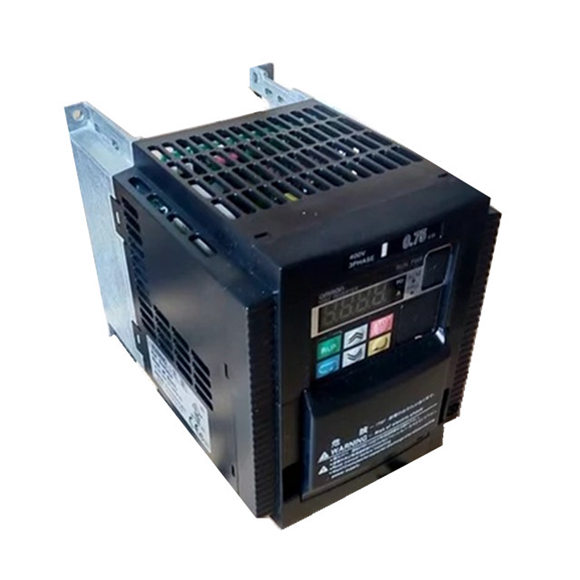

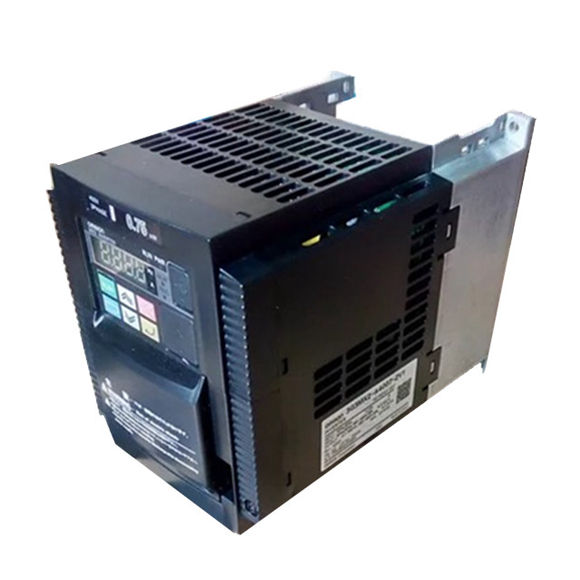

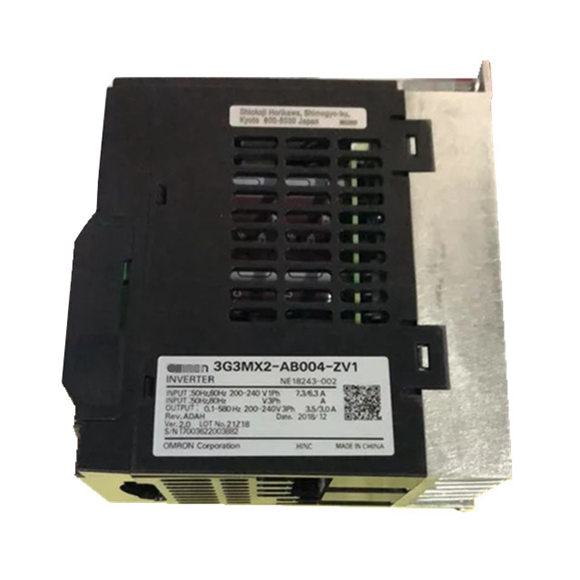

Omron Frequency Converter 3G3MX2-A4075-ZV1

Series#: Omron

Product Details

Omron 3G3MX2-A4075-ZV1 – High-performance frequency converter for 60Hz/50Hz VFD applications.
Robust IP20 open-type enclosure, ideal for cabinet integration.
Wide output frequency range: 0.10 to 400 Hz (580 Hz in high-frequency mode).
Sensorless vector control with 200% starting torque at 0.5 Hz.
Multi-protocol communication: Modbus-RTU, RS-485, USB, and optional EtherCAT/CompoNet/DeviceNet.
Comprehensive protective functions including overcurrent, overvoltage, and ground fault protection.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Omron 3G3MX2-A4075-ZV1 is a versatile frequency converter engineered for both 60Hz and 50Hz VFD applications, delivering precise motor control across a wide range of industrial automation tasks. This unit leverages advanced PWM modulation and sensorless vector control to ensure high torque at low speeds, making it suitable for heavy-duty machinery, conveyors, and pumps. With its IP20 enclosure, it is designed for reliable operation in control cabinets, while its extensive I/O and communication options allow seamless integration into existing systems. The drive supports both constant and reduced torque V/f characteristics, along with configurable acceleration/deceleration ramps, PID control, and 16-step speed presets, providing exceptional flexibility for process optimization.

Function Name	Specifications
Enclosure Ratings	Open type (IP20)
Control Method	Phase-to-phase sinusoidal modulation PWM
Output Frequency Range	0.10 to 400 Hz (or 580 Hz in high-frequency mode; restrictions apply)
Frequency Precision	Digital command: ±0.01% of max. frequency; Analog command: ±0.2% of max. frequency (25±10°C)
Frequency Setting Resolution	Digital setting: 0.01 Hz; Analog setting: one-thousandth of max. frequency
Voltage/Frequency Characteristics	V/f characteristics (constant/reduced torque), Sensorless vector control, V/f control with speed feedback
Overload Current Rating	Heavy load (CT): 150%/60 s; Light load (VT): 120%/60 s
Instantaneous Overcurrent Protection	200% of heavy load rating (CT)
Acceleration/Deceleration Time	0.01 to 3600 s (linear/curve selection), acceleration/deceleration 2 setting available
Carrier Frequency Adjustment Range	2 to 15 kHz (with derating)
Starting Torque	200%/0.5 Hz (sensorless vector control)
External DC Injection Braking	Starts at frequency lower than deceleration via STOP command, external input, or set value
Protective Functions	Overcurrent, overvoltage, undervoltage, electronic thermal, temperature error, ground fault, overcurrent at power-on, rush current prevention, overload limit, incoming overvoltage, external trip, memory error, CPU error, USP error, communication error, overvoltage suppression during deceleration, protection upon momentary power outage, emergency cutoff, etc.
Frequency Settings	Digital Operator, External analog input: 0 to 10 VDC/4 to 20 mA, Modbus communication (Modbus-RTU)
RUN/STOP Command	Digital Operator, External digital input (3-wire supported), Modbus communication (Modbus-RTU)
Multi-function Input	7 points (Functions selectable from 68)
Analog Input	2 points (Voltage FV terminal: 10 bits/0 to 10 V; Current FI terminal: 10 bits/4 to 20 mA)
Pulse Input	1 point (RP terminal: 32 kHz max., 5 to 24 VDC)
Multi-function Output	2 points (P1 and P2, Functions selectable from 47)
Relay Output	1 point (SPDT contact MC, MA, MB; Functions selectable from 47)
Analog Output (Frequency Monitor)	1 point (AM terminal: Voltage 10 bits/0 to 10 V; Frequency/current selectable)
Pulse Output	1 point (MP terminal: 32 kHz max., 0 to 10 V)
RS-422	RJ45 connector (for Digital Operator)
RS-485	Control circuit terminal block, Modbus communication (Modbus-RTU)
USB	USB 1.1, mini-B connector
Other Functions	AVR function, V/f characteristics switching, upper/lower limit, 16-step speeds, starting frequency adjustment, jogging operation, carrier frequency adjustment, PID control, frequency jump, analog gain/bias adjustment, S shape acceleration/deceleration, electronic thermal characteristics, level adjustment, restart function, torque boost function, fault monitor, soft lock function, frequency conversion display, USP function, motor 2 control function, UP/DWN, overcurrent control function, etc.
Ambient Operating Temperature	-10 to 50°C (derating required)
Ambient Storage Temperature	-20°C to 65°C
Ambient Operating Humidity	20% to 90% RH (no condensation)
Vibration Resistance	5.9 m/s² (0.6G), 10 to 55 Hz
Application Environment	Max altitude 1,000 m; indoors (without corrosive gases or dust)
EtherCAT Communication Unit	3G3AX-MX2-ECT
CompoNet Communication Unit	3G3AX-MX2-CRT-E
DeviceNet Communication Unit	3G3AX-MX2-DRT-E

Advanced Motor Control: Sensorless vector control delivers 200% starting torque at 0.5 Hz, ensuring reliable startup under heavy loads.
Flexible Frequency Operation: Supports both 50 Hz and 60 Hz input/output, with adjustable range up to 400 Hz (580 Hz high-frequency mode) for diverse applications.
Comprehensive Protection Suite: Over 20 protective functions including overcurrent, overvoltage, ground fault, and thermal management for robust system safety.
Extensive I/O Configuration: 7 multi-function inputs, 2 analog inputs, 2 multi-function outputs, 1 relay output, plus pulse and analog outputs for versatile monitoring.
Multi-Protocol Communication: Built-in RS-485 Modbus-RTU, USB mini-B, and optional EtherCAT, CompoNet, or DeviceNet communication units for seamless integration.
Environmental Durability: Rated for -10°C to 50°C operation, 20-90% RH humidity, and 5.9 m/s² vibration resistance, suitable for demanding industrial environments.
