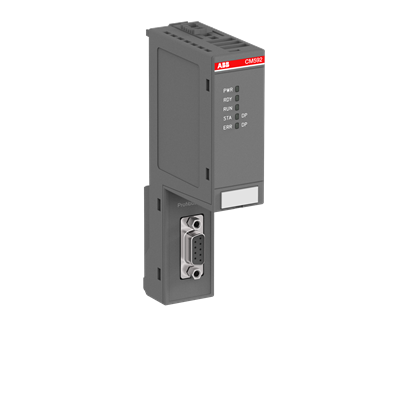

The ABB CM592-DP is a dedicated PROFIBUS master communication module designed for the AC500 programmable logic controller family. This module provides a robust and reliable interface for connecting AC500 CPUs to PROFIBUS DP networks, enabling high-speed data exchange with remote I/O, drives, and other field devices. With its RS-485 serial interface and support for baud rates up to 12 Mbit/s, the CM592-DP ensures deterministic and efficient communication in demanding industrial environments. Its compact form factor (135 mm height, 28 mm width, 62 mm depth) and low power consumption make it an ideal choice for space-constrained control cabinets. The module is fully compliant with PROFIBUS DP-V0/V1 standards, offering seamless integration into existing infrastructure. Each unit is factory-tested to guarantee 100% original and new condition, and is available for rapid delivery worldwide.
| Specification |
Details |
| Product Type |
PROFIBUS Master Communication Module |
| Model Number |
CM592-DP |
| Compatible System |
ABB AC500 PLC Series |
| Communication Protocol |
PROFIBUS DP (Master) |
| Physical Interface |
RS-485 (1 port) |
| Max Data Transmission Rate |
12,000 kbit/s (12 Mbit/s) |
| Degree of Protection |
IP20 |
| Product Net Weight |
0.092 kg |
| Product Net Depth / Length |
62 mm |
| Product Net Height |
135 mm |
| Product Net Width |
28 mm |
| Gross Weight (packaged) |
0.125 kg |
| Package Level 1 Dimensions (L x W x H) |
147 x 78 x 40 mm |
| Package Level 1 Units |
1 carton |
| Minimum Order Quantity |
1 piece |
| Order Multiple |
1 piece |
| Selling Unit of Measure |
Piece |
| Made To Order |
No (standard stock item) |
| eClass (V11) |
27-24-22-08 |
| ETIM 8.0 |
EC001423 – PLC communication module |
| UNSPSC |
32151705 |
| CN8 (Customs Tariff) |
85389091 |
| SCIP Number |
6bc87e4e-31f4-41df-b4ee-46080855c0d8 Germany (DE) |
| WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B |
Business To Business |
