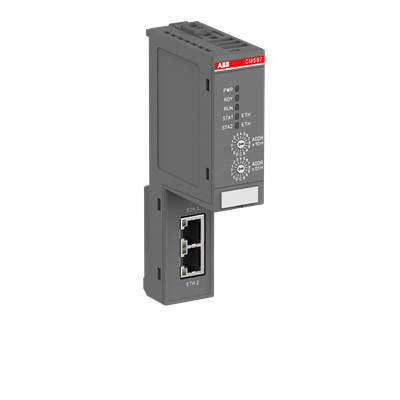

ABB CM597-ETH AC500 Communication Module

Series#: ABB

Product Details

ABB CM597-ETH AC500 Communication Module for high-performance Ethernet connectivity in distributed automation systems.
Supports TCP/IP, UDP, and Modbus TCP protocols for seamless integration with industrial networks.
Equipped with 2 Industrial Ethernet interfaces for redundant or multi-device communication at 100 Mbit/s.
Compact design: 28 x 135 x 62 mm, net weight only 0.101 kg, ideal for space-constrained control cabinets.
Rated IP20 protection for indoor use in clean industrial environments.
Easy plug-and-play integration with ABB AC500 PLC series for enhanced automation capabilities.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The ABB CM597-ETH is a dedicated communication module designed for the AC500 PLC platform, enabling robust Ethernet-based data exchange in distributed automation architectures. This module supports standard protocols including TCP/IP, UDP, and Modbus TCP, making it suitable for connecting to SCADA systems, HMIs, drives, and other field devices. With two Industrial Ethernet ports operating at 100 Mbit/s, the CM597-ETH provides flexibility for daisy-chaining or redundant network topologies. Its compact footprint (28 mm width) and lightweight design (0.101 kg) allow for efficient installation in tight panel spaces. The module is classified under ETIM EC001423 as a PLC communication module and is built for reliable operation in industrial environments rated IP20. As a standard, non-customizable product, it is available off-the-shelf for immediate deployment.

Attribute	Specification
Product Model	CM597-ETH
Product Type	AC500 Communication Module
Protocols Supported	TCP/IP, UDP, Modbus TCP
Communication Interface	Serial (Ethernet)
Number of Hardware Interfaces	Industrial Ethernet: 2; Others: 0
Data Transmission Rate	100 Mbit/s (100,000 kbit/s)
Degree of Protection	IP20
Product Net Weight	0.101 kg
Product Net Depth / Length	62 mm
Product Net Height	135 mm
Product Net Width	28 mm
Gross Weight	0.134 kg
Package Level 1 Dimensions (L x W x H)	147 x 78 x 40 mm
Package Level 1 Units	1 carton
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit of Measure	piece
Made To Order	No
CN8 Code	85389091
eClass	27-24-22-08
ETIM 8	EC001423 - PLC communication module
UNSPSC	32151705
SCIP	30ee6bb1-24de-4866-be37-4a857c1c51cf Germany (DE)
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
