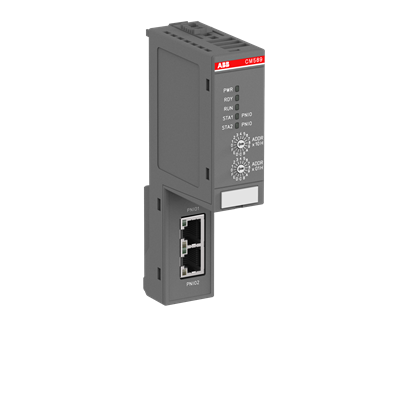

ABB CM589-PNIO-4 AC500 Communication Module

Series#: ABB

Product Details

ABB CM589-PNIO-4 – High-performance PROFINET IO RT communication module for AC500 PLC platforms.
Supports up to 4 PROFINET IO devices with real-time (RT) data exchange.
Features 2 Industrial Ethernet ports for daisy-chain or star topology networking.
Data transmission rate of 100 Mbit/s for fast and deterministic control.
Compact design: IP20 protection, net weight only 0.1 kg, dimensions 28 x 135 x 62 mm.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The ABB CM589-PNIO-4 is a dedicated communication module designed to integrate the AC500 PLC family into PROFINET IO networks, acting as a real-time (RT) device. This module is engineered for high-speed data exchange with up to four PROFINET IO devices, offering a robust and reliable interface for distributed automation systems. With its dual Industrial Ethernet ports and a data rate of 100 Mbit/s, the CM589-PNIO-4 ensures seamless connectivity and deterministic communication in demanding industrial environments. Its compact, IP20-rated housing makes it ideal for control cabinet installation, while the lightweight design (0.1 kg) simplifies handling and logistics.

Attribute	Specification
Product Type	Communication Module
Model	CM589-PNIO-4
Product Main Type	CM589
Function	PROFINET IO RT device, supports up to 4 devices
Communication Interface	Serial (PROFINET IO)
Number of Hardware Interfaces	Industrial Ethernet: 2 Other: 0 Parallel: 0 RS-232: 0 RS-422: 0 RS-485: 0 Serial TTY: 0 USB: 0 Wireless: 0
Data Transmission Rate	100 Mbit/s (100000 kbit/s)
Degree of Protection	IP20
Product Net Weight	0.1 kg
Product Net Depth / Length	62 mm
Product Net Height	135 mm
Product Net Width	28 mm
Gross Weight	0.133 kg
Package Level 1 Dimensions (L x W x H)	147 mm x 78 mm x 40 mm
Package Level 1 Units	1 carton
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit of Measure	piece
Made To Order	No
CN8 Code	85389091
Invoice Description	Communication module. PROFINET IO RT device. 4 devices (CM589-PNIO-4)
Product Name	Distributed Automation PLCs
eClass	27-24-22-08
ETIM 8	EC001423 - PLC communication module
UNSPSC	32151705
SCIP	c4557458-7f67-4848-b6e4-116e9ed78d4e Germany (DE)
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
