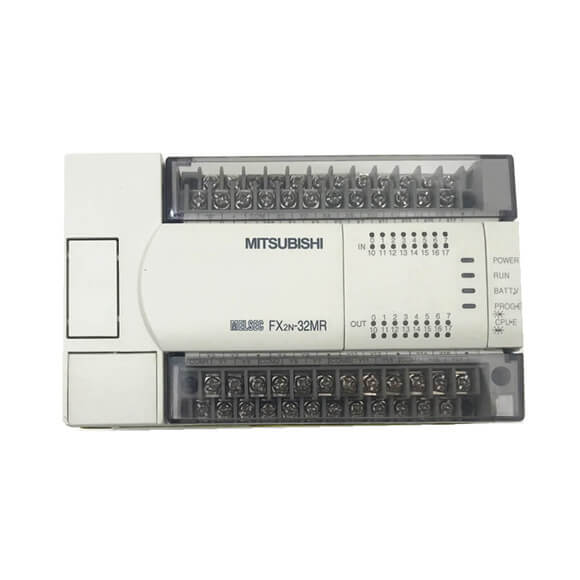

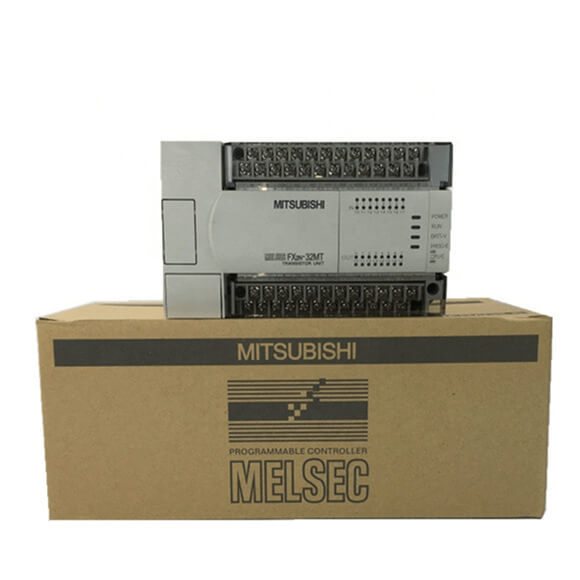

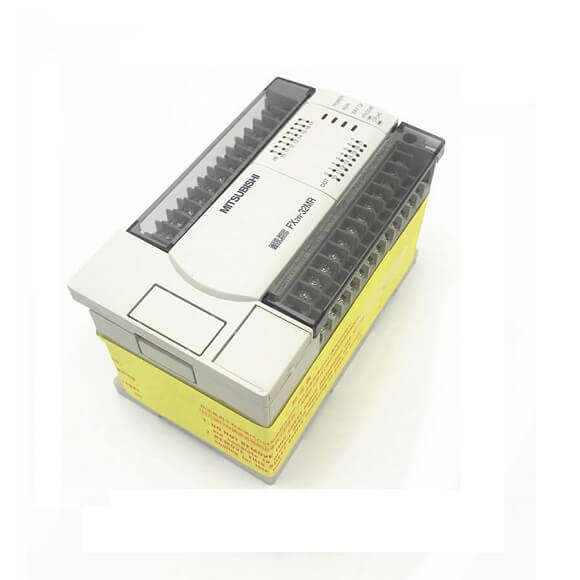

Mitsubishi PLC Module FX2N-32MR-001/FX2N-32MT-001

Series#: Mitsubishi

Product Details

Mitsubishi FX2N-32MR-001 / FX2N-32MT-001 – High-performance compact PLC module for industrial automation.
Reliable 16-input / 16-output configuration (relay or transistor) for versatile control applications.
Built-in 8000-step program capacity, expandable to 16000 steps via memory cassette.
Ultra-fast processing: basic instructions in 0.08 µs, applied instructions in 1.52 µs.
Supports relay symbolic language + step ladder (SFC-style) programming for flexible logic design.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Mitsubishi FX2N-32MR-001 / FX2N-32MT-001 is a compact yet powerful PLC module from the renowned FX2N series, designed to deliver exceptional performance in demanding industrial environments. With its 16-point input and 16-point output configuration (relay for MR version, transistor for MT version), this module offers precise I/O control and seamless integration into existing automation systems. Ideal for machine control, process automation, and discrete manufacturing, it combines high-speed processing with extensive programming flexibility, ensuring reliable operation across a wide range of applications.

Parameter	Specification	Remarks
Operation Control Method	Cyclic operation by stored program	Standard PLC execution
I/O Control Method	Batch processing method (when END instruction is executed)	I/O refresh instruction available
Operation Processing Time	Basic instructions: 0.08 µs; Applied instructions: 1.52 to several 100 µs	High-speed logic execution
Programming Language	Relay symbolic language + Step ladder	Step ladder supports SFC-style programming
Program Capacity	8000 steps built in	Expandable to 16000 steps via memory cassette
Number of Instructions	Basic sequence: 20; Step ladder: 2; Applied: 125	Maximum 125 applied instructions available
I/O Configuration	Max hardware I/O points: 255 (Inputs 255, Outputs 255)	User-selectable expansion
Auxiliary Relay (M coils) General	3072 points	M0 to M3071
Auxiliary Relay (M coils) Latched	2572 points (subset)	M500 to M3071
Auxiliary Relay (M coils) Special	256 points	M8000 to M8255
State Relays (S coils) General	1000 points	S0 to S999
State Relays (S coils) Latched	500 points (subset)	S500 to S999
State Relays (S coils) Initial	10 points (subset)	S0 to S9
State Relays (S coils) Annunciator	100 points	S900 to S999
Timers (T) 100 msec	Range: 0 to 3276.7 sec; 200 points	T0 to T199
Timers (T) 10 msec	Range: 0 to 327.67 sec; 46 points	T200 to T245
Timers (T) 1 msec retentive	Range: 0 to 32.767 sec; 4 points	T246 to T249
Timers (T) 100 msec retentive	Range: 0 to 3276.7 sec; 6 points	T250 to T255
Counters (C) General 16-bit	Range: 1 to 32767 counts; 200 points	C0 to C199; 16-bit up counter
Counters (C) Latched 16-bit	100 points (subset)	C100 to C199; 16-bit up counter
Counters (C) General 32-bit	Range: -2,147,483,648 to 2,147,483,647; 35 points	C200 to C234; 32-bit up/down counter
Counters (C) Latched 32-bit	15 points (subset)	C219 to C234; 32-bit up/down counter

Power Supply: 24V DC (typical for FX2N series) – ensure proper voltage for module operation.
Output Type: Relay (MR) for AC/DC loads up to 2A; Transistor (MT) for high-speed DC switching up to 0.5A.
Mounting: DIN rail or direct panel mount – compact footprint saves cabinet space.
Communication: Supports optional RS-232, RS-485, and CC-Link modules for network integration.
Environmental Rating: Operating temperature 0°C to 55°C; storage temperature -20°C to 70°C; humidity 10-90% non-condensing.
Certification: Complies with CE, UL, and RoHS standards for global industrial use.
