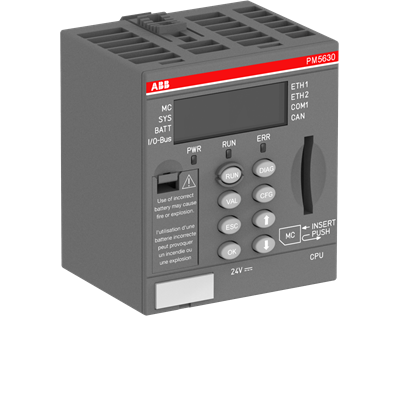

The PM5630-2ETH is a flagship AC500 processor module engineered for high-speed control in distributed automation systems. With a robust 8 MB memory and an exceptional processing time of 0.00002 ms per instruction, this CPU delivers real-time performance for complex PLC applications. It features dual Ethernet ports for redundancy, an RS232/485 serial interface, and a CAN bus for seamless integration with drives, I/O, and field devices. The integrated LCD display provides instant access to status and diagnostics, reducing downtime. Backed by a 24 V DC power supply (20.4–28.8 V range), the PM5630-2ETH is built for reliability in harsh industrial environments.
| Specification |
Details |
| Model |
PM5630-2ETH |
| Product Type |
AC500 Processor Module |
| Function |
Memory 8 MB, Interfaces: 2 Ethernet, RS232/485, CAN, Display |
| Memory Size (User Data) |
39256 kB (RAM) |
| Controller Processing Time |
0.00002 ms |
| Number of Digital Configurable I/Os |
0 (Expandable via I/O modules) |
| Rated Voltage (Ur) |
24 V DC |
| Supply Voltage Range |
20.4 … 28.8 V DC |
| Product Net Weight |
0.134 kg |
| Product Net Depth / Length |
62 mm |
| Product Net Height |
76 mm |
| Product Net Width |
67.5 mm |
| Gross Weight (packaged) |
0.157 kg |
| Package Level 1 Dimensions (L x W x H) |
84 mm x 71 mm x 72 mm |
| Package Level 1 Units |
1 carton |
| Minimum Order Quantity |
1 piece |
| Selling Unit of Measure |
piece |
| CN8 (Customs Code) |
85389091 |
| eClass |
27-24-22-07 |
| ETIM 8 |
EC000236 - PLC CPU-module |
| UNSPSC |
32151705 |
| SCIP |
ceb0675a-2092-47d2-9d77-448c041a7b95 Germany (DE) |
| WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B |
Business To Business |
| Made To Order |
No |
| Order Multiple |
1 piece |
