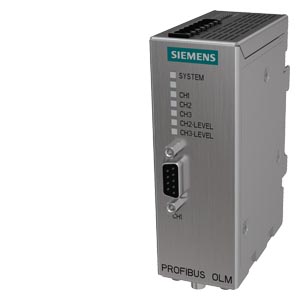

The SIEMENS 6GK1503-3CB00 is the PROFIBUS OLM/G12 V4.0 Optical Link Module, a cornerstone component for expanding and hardening PROFIBUS DP networks in demanding industrial environments. This active module acts as a repeater and media converter, allowing you to bridge electrical RS-485 segments with long-haul fiber optic links. With two BFOC glass fiber interfaces and one RS-485 port, it supports point-to-point, star, or ring topologies, ensuring reliable data transmission over distances up to 2850 meters. The integrated signaling contact and measuring output enable real-time status monitoring and fault detection, making it indispensable for critical infrastructure in manufacturing, energy, and process industries. Below are the comprehensive technical specifications derived from the original Siemens datasheet.
| Parameter |
Specification |
| Article Number |
6GK1503-3CB00 |
| Product Type |
PROFIBUS OLM/G12 V4.0 Optical Link Module |
| Interfaces |
1 x RS-485 (electrical), 2 x BFOC glass fiber (optical) |
| Fiber Optic Connector Type |
BFOC (ST-compatible) sockets |
| Maximum Distance (Standard) |
Up to 2850 m per segment (glass fiber) |
| Signaling Contact |
Yes, for fault alarm relay |
| Measuring Output |
Yes, for optical power monitoring |
| Data Rate |
PROFIBUS DP up to 12 Mbps (automatic detection) |
| Product Lifecycle |
PM300: Active Product |
| Net Weight |
0.415 kg |
| Packaging Dimensions (H x W x D) |
39.50 x 74.50 x 112.00 mm |
| Packaging Quantity |
1 piece |
| Country of Origin |
Germany |
| RoHS Compliance |
Given |
| Export Control (AL / ECCN) |
N / N |
| Estimated Dispatch Time |
1 working day |
| EAN |
4.01917E+12 |
| UPC |
6.62643E+11 |
| Commodity Code |
85176200 |
| Product Group |
2449 |
| Group Code |
R320 |
| SCIP Number |
e67487e2-a002-4cce-a6d6-79ddba146b57 |
| REACH Compliance |
Lead CAS-No. 7439-92-1 > 0.1% (w/w) |
| eClass (v12.0 / v14.0 / v6.0 / v7.1 / v8.0 / v9.0 / v9.1) |
19-17-01-32 / 19-17-01-32 / 19-17-01-90 / 19-17-01-14 / 19-17-01-14 / 19-17-01-14 / 19-17-01-14 |
| ETIM (v7.0 / v8.0 / v9.0) |
EC001467 |
| UNSPSC |
43-20-15-44 |
