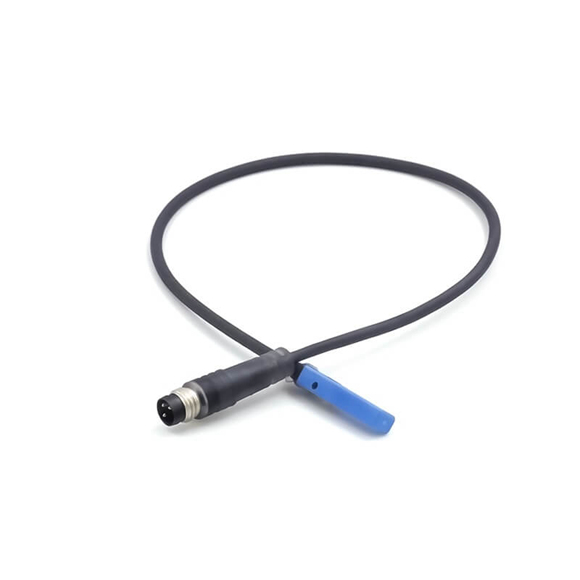

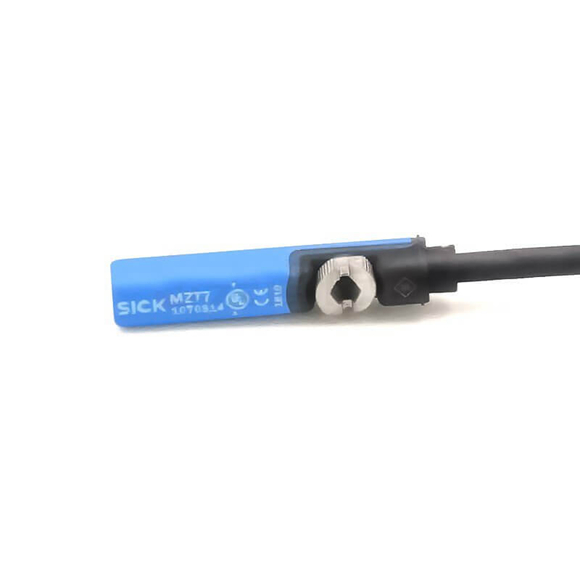

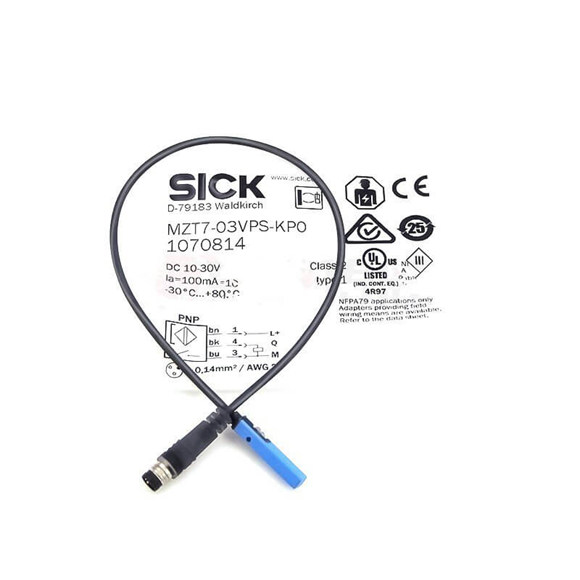

The SICK CYLINDERS SENSORS MZT7-03VPS-KP0/KW0/KUB/KWB/KU0/KR0 is a state-of-the-art magnetic cylinder sensor designed for precise position detection in T-slot pneumatic cylinders. Engineered for demanding automation tasks, this sensor features a PNP normally open output with a switching frequency of 1,000 Hz, ensuring fast and accurate response. Its rugged design meets IP65 and IP67 standards, making it ideal for wet or dusty conditions. The sensor supports a wide supply voltage range of 10 V DC to 30 V DC and includes comprehensive protection features such as reverse polarity and short-circuit protection. With an MTTFd of 1,600 years, it guarantees long-term reliability in continuous operation. The MZT7 series is compatible with various cylinder types, including profile, tie rod, round body, and dovetail groove cylinders, as well as SMC rails CDQ2 and ECDQ2, offering exceptional flexibility for integration into existing systems.
| Parameter |
Specification |
| Cylinder type |
T-slot |
| Cylinder types with adapter |
Profile cylinder, Tie rod cylinder, Round body cylinder, Dovetail groove cylinder, SMC rail CDQ2, SMC rail ECDQ2 |
| Housing length |
29.5 mm |
| Switching output |
PNP |
| Switching frequency |
1,000 Hz |
| Output function |
NO |
| Electrical wiring |
DC 3-wire |
| Enclosure rating |
IP65, IP67 |
| Supply voltage |
10 V DC ... 30 V DC |
| Power consumption |
8 mA |
| Voltage drop |
≤ 2 V |
| Continuous current Ia |
≤ 100 mA |
| Protection class |
III |
| Response sensitivity, typ. |
3 mT |
| Overrun distance, typ. |
10 mm |
| Hysteresis, typ. |
< 0.8 mT |
| Reproducibility |
≤ 0.1 mT |
| Status indicator LED |
✔ |
| Reverse polarity protection |
✔ |
| Short-circuit protection |
✔ |
| Ambient operating temperature |
–30 °C ... +80 °C |
| MTTFd: mean time to dangerous failure |
1,600 years |
| Shock and vibration resistance |
30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC |
According to EN 60947-5-2 |
| Connection type |

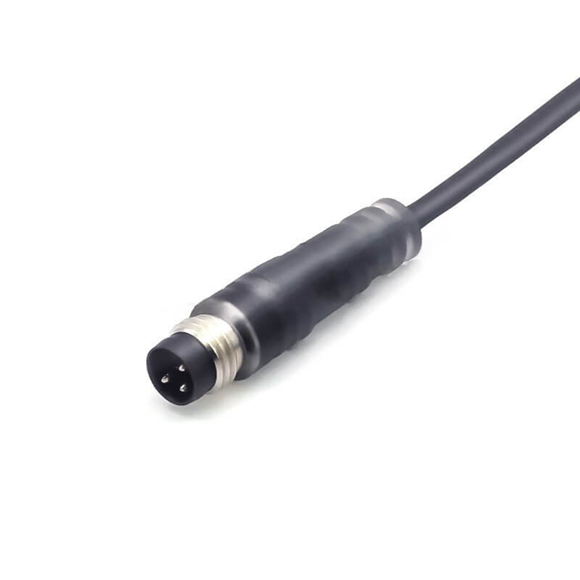

Cable with connector M8, 3-pin, drag chain use, 0.3 m |
