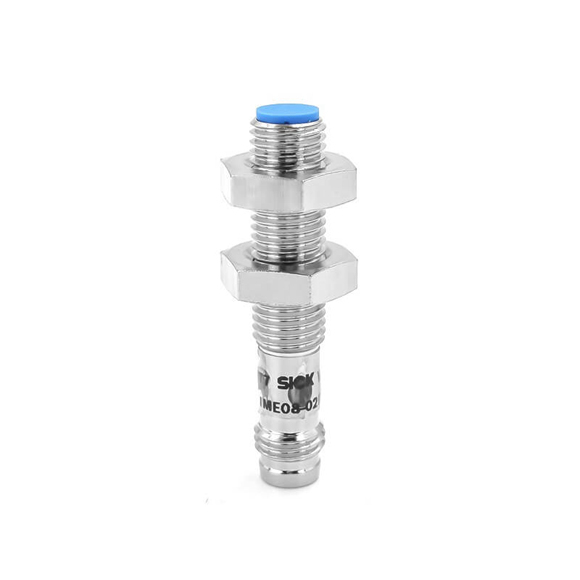

Sick IME08-02BPOZT0K Magnetic Proximity Sensor

Series#: Sick

Product Details

Model: SICK IME08-02BPOZT0K and IME08-02BPSZT0K – Precision M8 x 1 inductive proximity sensors for reliable metal detection.
Flush-mountable, 2 mm sensing range (Sn) for tight installation spaces.
High-speed switching up to 4,000 Hz for dynamic automation lines.
Robust IP67-rated, nickel-plated brass housing for harsh industrial environments.
PNP NC output with M8 3-pin connector for simple DC 3-wire integration.
Built-in protection: short-circuit, reverse polarity, and power-up pulse immunity.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The SICK IME08-02BPOZT0K and IME08-02BPSZT0K are high-performance cylindrical inductive proximity sensors designed for precise metal object detection in automated manufacturing. With an M8 x 1 thread, short-body housing, and flush-mountable design, these sensors fit seamlessly into confined spaces while delivering a 2 mm sensing range and a safe sensing distance of 1.62 mm. Engineered for high-speed applications, they switch at up to 4,000 Hz and feature a PNP normally closed (NC) output via an M8 3-pin connector. The nickel-plated brass housing and PA66 sensing face ensure durability against shock, vibration, and moisture, with an IP67 enclosure rating. Equipped with comprehensive electrical protections and EMC compliance per EN 60947-5-2, these sensors are ideal for packaging, robotics, and assembly lines.

Parameter	Specification
Housing Type	Cylindrical thread design, short-body
Thread Size	M8 x 1
Diameter	8 mm
Sensing Range (Sn)	2 mm
Safe Sensing Range (Sa)	1.62 mm
Installation Type	Flush
Switching Frequency	4,000 Hz
Connection Type	Connector M8, 3-pin
Switching Output	PNP
Output Function	NC (Normally Closed)
Electrical Wiring	DC 3-wire
Enclosure Rating	IP67
Supply Voltage	10 V DC … 30 V DC
Ripple	≤ 10%
Voltage Drop	≤ 2 V
Current Consumption	10 mA
Time Delay Before Availability	≤ 100 ms
Hysteresis	5% … 15%
Reproducibility	≤ 2%
Temperature Drift (of Sr)	± 10%
EMC	According to EN 60947-5-2
Continuous Current (Ia)	≤ 200 mA
Short-Circuit Protection	✔
Reverse Polarity Protection	✔
Power-Up Pulse Protection	✔
Shock and Vibration Resistance	30 g, 11 ms / 10 Hz … 55 Hz, 1 mm
Ambient Operating Temperature	–25 °C … +75 °C
Housing Material	Brass, nickel-plated
Sensing Face Material	Plastic, PA 66
Housing Length	41 mm
Thread Length	25 mm
Tightening Torque, Max.	≤ 5 Nm

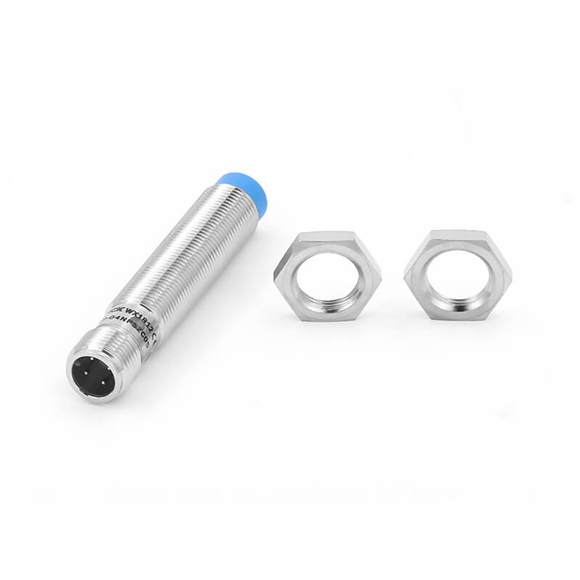

Items Supplied	Mounting nut, brass, nickel-plated (2x)
UL File No.	NRKH.E181493
