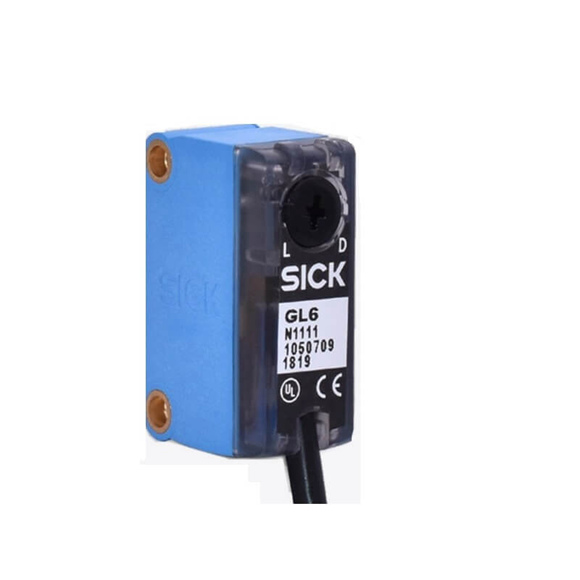

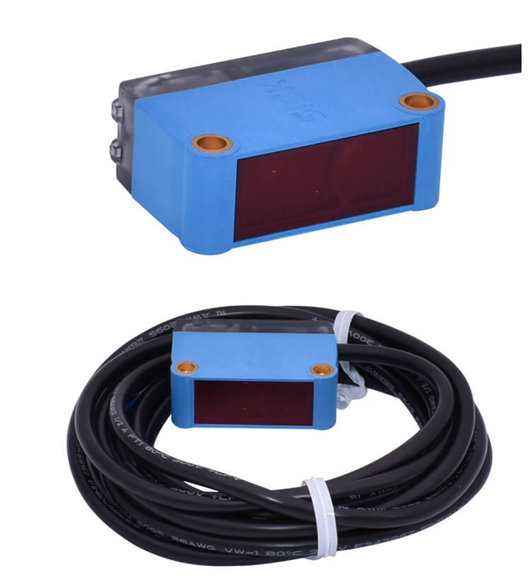

The SICK GL6G-P1212 is a cutting-edge photoelectric retro-reflective sensor engineered for precision and reliability in modern industrial automation. This dual-lens sensor leverages a PinPoint LED light source with a wavelength of 650 nm, delivering a focused light spot of Ø 8 mm at 350 mm distance. With a maximum sensing range of 6 m (5 m typical), it excels in detecting transparent objects such as glass and plastic films, making it indispensable for packaging, beverage, and material handling lines. The sensor features a PNP switching output with selectable light/dark switching modes, ensuring flexibility in diverse control systems. Its robust plastic housing (ABS/PC) with IP67 rating withstands dust and water ingress, while the integrated polarization filter enhances performance on reflective targets. Supplied with a stainless steel mounting bracket (BEF-W100-A) and reflector P250, the GL6G-P1212 is a turnkey solution for demanding tasks. Backed by UL certification (NRKH.E348498), it operates reliably from –25°C to +55°C, with a storage range of –40°C to +70°C.
| Parameter |
Specification |
| Sensor / Detection Principle |
Photoelectric retro-reflective sensor, Dual lens |
| Dimensions (W x H x D) |
12 mm x 31.5 mm x 21 mm |
| Housing Design (Light Emission) |
Rectangular |
| Sensing Range Max. |
≤ 6 m |
| Sensing Range |
≤ 5 m |
| Type of Light |
Visible red light |
| Light Source |
PinPoint LED |
| Light Spot Size (Distance) |
Ø 8 mm (350 mm) |
| Wavelength |
650 nm |
| Adjustment |
Potentiometer, 270° |
| Special Applications |
Detecting transparent objects |
| Supply Voltage |
10 V DC … 30 V DC |
| Ripple |
± 10% |
| Current Consumption |
30 mA |
| Switching Output |
PNP |
| Switching Mode |
Light/dark switching |
| Switching Mode Selector |
Selectable via light/dark selector |
| Signal Voltage PNP HIGH/LOW |
VS – (≤ 3 V) / approx. 0 V |
| Output Current Imax. |
≤ 100 mA |
| Response Time |
< 625 µs |
| Switching Frequency |
1,000 Hz |
| Attenuation Along Light Beam |
> 20% |
| Connection Type |
Cable, 3-wire, 2 m |
| Cable Material |
PVC |
| Conductor Cross-Section |
0.14 mm² |
| Circuit Protection |
A, B, D |
| Protection Class |
III |
| Weight |
60 g |
| Polarisation Filter |
✔ |
| Housing Material |
Plastic, ABS/PC |
| Optics Material |
Plastic, PMMA |
| Enclosure Rating |
IP67 |
| Items Supplied |
Stainless steel mounting bracket (1.4301/304) BEF-W100-A, Reflector P250 |
| Special Feature |
Detecting transparent objects |
| Ambient Operating Temperature |
–25°C … +55°C |
| Ambient Storage Temperature |
–40°C … +70°C |
| UL File No. |
NRKH.E348498 & NRKH7.E348498 |
