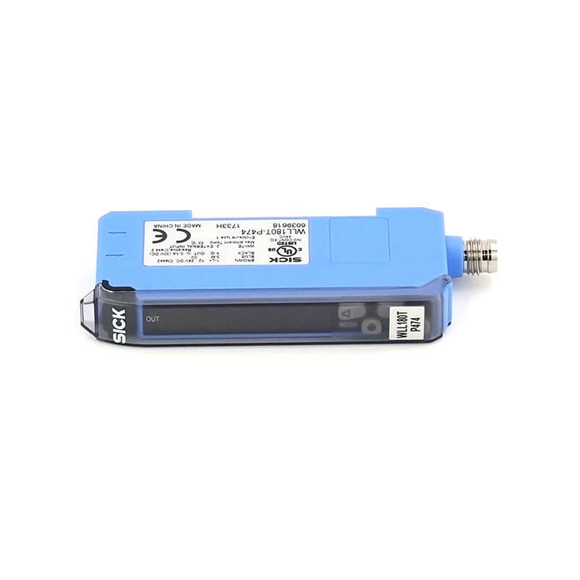

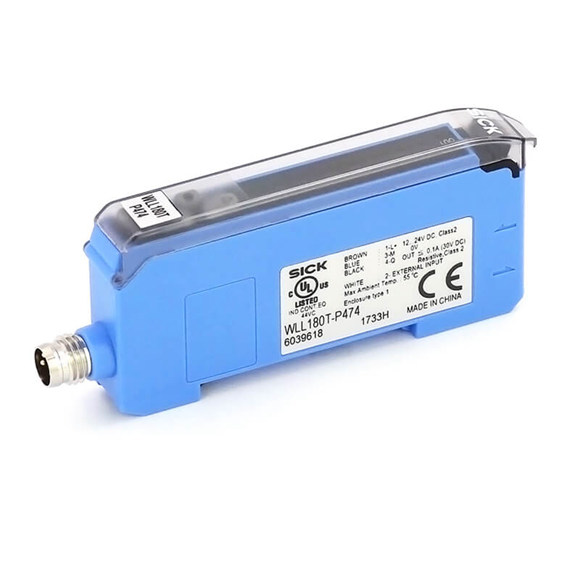

Sick Fiber Optic Sensor WLL180T-N474

Series#: Sick

Product Details

High-performance SICK WLL180T-N474, WLL180T-N473, and WLL180T-N432 fiber-optic sensors, engineered for precision detection in demanding industrial automation applications.
Menu-controlled adjustment with single teach-in button and intuitive dual 4-character digital display for real-time set value and actual value monitoring.
Ultra-fast response times down to ≤ 16 µs and switching frequencies up to 31.2 kHz, ideal for high-speed object counting and positioning tasks.
Versatile programmable delay times from 0 ms to 9,999 ms, with multiple time functions including on-delay, off-delay, and one-shot modes.
Compact rectangular housing (10.5 mm x 34.6 mm x 71.9 mm) with M8 4-pin male connector and IP50 enclosure rating for reliable performance in controlled environments.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The SICK WLL180T series, including models WLL180T-N474, WLL180T-N473, and WLL180T-N432, represents a standalone fiber-optic amplifier solution designed for use with glass fiber optics. These sensors leverage infrared LED light at 1450 nm wavelength to deliver exceptional sensing performance in both through-beam and proximity configurations. With a maximum sensing range of 1000 mm for through-beam systems and 400 mm for proximity systems, the WLL180T is ideal for precise object detection in packaging, material handling, and assembly applications. The menu-driven interface, combined with a single teach-in button and a dual 4-character digital display, simplifies setup and real-time monitoring. The NPN switching output supports light/dark switching modes, and the programmable delay times offer flexibility for complex timing requirements. Built with a durable ABS/PC plastic housing and rated IP50, these sensors are designed for long-term reliability in industrial environments.

Parameter	Specification
Type	Stand-alone
Dimensions (W x H x D)	10.5 mm x 34.6 mm x 71.9 mm
Housing design (light emission)	Rectangular
Sensing range max.	0 mm … 1,000 mm, Through-beam system
Sensing range	0 mm … 400 mm, Proximity system; 0 m … 850 mm, Through-beam system
Focus	5)
Type of light	Infrared light
Light source	LED
Angle of dispersion	Approx. 65°
Wave length	1,450 nm
Adjustment	Menu-controlled; Single teach-in button; Cable
Delay time	Programmable, 0 ms … 9,999 ms
Time functions	Without time delay; Off delay; On delay; ON and OFF delay; One shot
Indication	Display
Display	LED status display / 2x 4-character digital dual displays, Set value (green indicator) and actual value (red indicator) are displayed simultaneously, display of parameters
Special features	Glass fibers necessary
Supply voltage	12 V DC … 24 V DC
Ripple	≤ 10 %
Power consumption	50 mA
Switching output	NPN
Number of switching outputs	1
Switching mode	Light/dark switching
Switching mode selector	Manually selectable
Output current Imax.	≤ 100 mA
Response time	≤ 16 µs, ≤ 70 µs, ≤ 250 µs, ≤ 2,000 µs, ≤ 8,000 µs
Switching frequency	31.2 kHz; 7.1 kHz; 2 kHz; 250 Hz; 62.5 Hz
Input	Multifunctional input MF
Connection type	Male connector M8, 4-pin
Circuit protection	A; B; C; D
Protection class	III
Weight	20 g
Housing material	Plastic, ABS/PC
Enclosure rating	IP50
Items supplied	BEF-WLL180 mounting bracket
Ambient operating temperature	–25 °C … +55 °C
Ambient storage temperature	–40 °C … +70 °C
UL File No.	NRKH.E300503 & NRKH7.E300503
