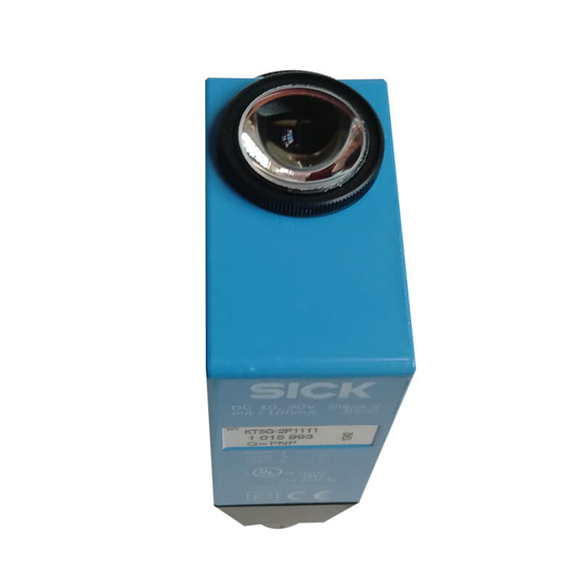

Sick Contrast Sensor KT5G-2P1111

Series#: Sick

Product Details

High-performance SICK CONTRAST SENSOR KT5G-2P1111, ideal for precise mark and contrast detection in industrial automation.
Green LED light source with 520 nm wavelength ensures stable detection on various surfaces.
Ultra-fast 10 kHz switching frequency and 50 µs response time for high-speed applications.

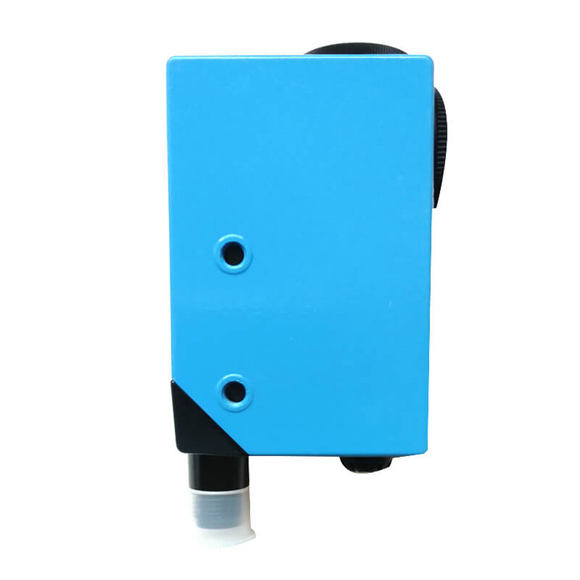

Compact rectangular metal housing (zinc diecast) with IP67 rating for harsh environments.
Adjustable light/dark switching output (PNP) with M12 4-pin connector for easy integration.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The SICK CONTRAST SENSOR KT5G-2P1111 is a robust and versatile industrial sensor engineered for reliable contrast and mark detection in challenging production lines. With a green LED light source and a precision light spot of just 1.2 mm x 4.2 mm, this sensor excels at detecting subtle differences in color and contrast, making it essential for packaging, labeling, and printing machinery. Its metal zinc diecast housing and IP67 protection ensure durability in dusty and wet environments, while the 10 kHz switching frequency and 50 µs response time meet the demands of high-speed automation. The sensor's PNP output with light/dark switching flexibility, combined with a 10-30 V DC supply range, simplifies integration into existing control systems. Whether used for registration mark detection or edge guiding, the KT5G-2P1111 delivers consistent performance with long service life.

Parameter	Specification
Dimensions (W x H x D)	30.4 mm x 53 mm x 80 mm
Sensing distance	10 mm
Housing design (light emission)	Rectangular
Light source	LED, green
Wave length	520 nm
Light emission	Long and short side of housing, exchangeable
Light spot size	1.2 mm x 4.2 mm
Light spot direction	Vertical

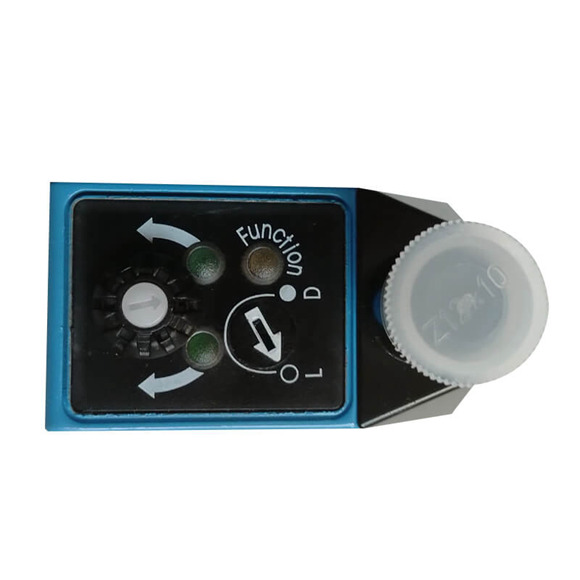

Adjustment	Potentiometer
Output function	Light/dark switching
Supply voltage	10 V DC … 30 V DC
Ripple	≤ 5 Vpp
Power consumption	< 80 mA
Switching frequency	10 kHz
Response time	50 µs
Switching output	PNP
Switching output (voltage)	PNP: HIGH = VS– ≤ 2 V / LOW approx. 0 V
Output current Imax.	100 mA
Connection type	Male connector M12, 4-pin
Protection class	II
Circuit protection	UV connections, reverse polarity protected
Circuit protection	Output Q short-circuit protected
Circuit protection	Interference pulse suppression
Enclosure rating	IP67
Weight	400 g
Housing material	Metal, Zinc diecast
