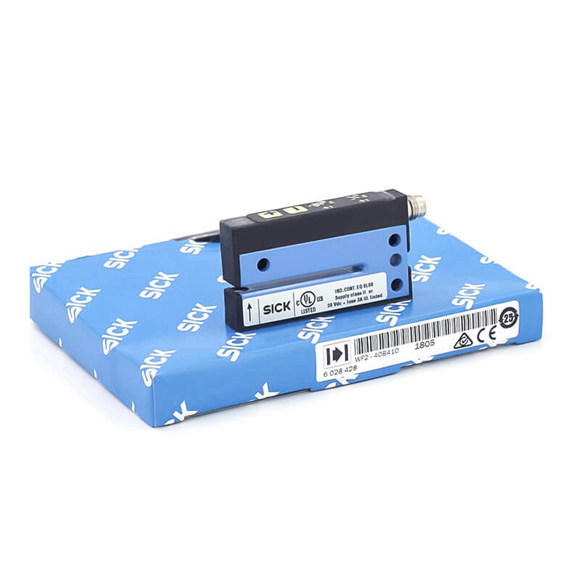

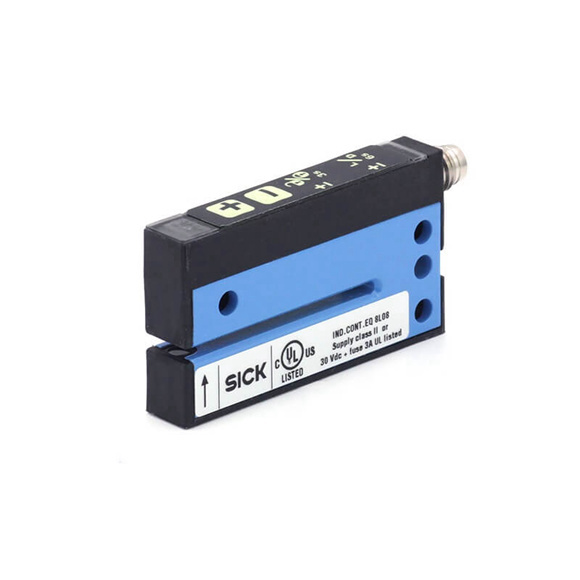

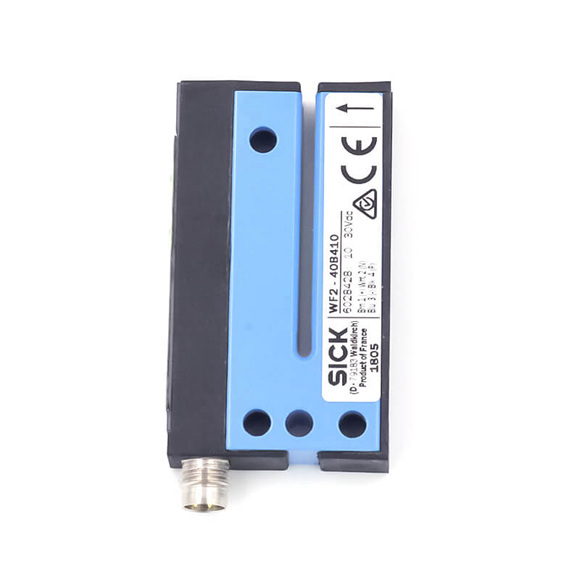

The SICK FORK SENSORS WF15-40B410, WF5-40B410, WF15-40B416, and WF50-40B410 represent a family of high-performance fork sensors designed for precise optical detection in automation tasks. These sensors leverage an infrared LED (850 nm) light source and a fork-shaped housing to deliver reliable label detection and small-object sensing. With a fork width of 50 mm and depth of 42 mm, they are ideal for applications requiring consistent monitoring of transparent or opaque materials. Their robust aluminum construction and IP65 rating ensure durability in demanding settings, while the 10 kHz switching frequency and 100 µs response time enable high-speed counting and positioning. The sensors feature intuitive push-button adjustment for sensitivity and light/dark switching, along with PNP/NPN output options for seamless integration into control systems. Below is the detailed technical specification:
| Parameter |
Specification |
| Functional Principle |
Optical detection principle |
| Dimensions (W x H x D) |
10 mm x 80 mm x 57 mm |
| Housing Design (Light Emission) |
Fork shaped |
| Fork Width |
50 mm |
| Fork Depth |
42 mm |
| Minimum Detectable Object (MDO) |
0.2 mm |
| Label Detection |
✔ |
| Light Source |
LED, Infrared light |
| Wavelength |
850 nm |
| Adjustment |
Plus/minus button (Sensitivity, light/dark switching, key lock) |
| Teach-in Mode |
— |
| Output Function |
Light/dark switching, selectable via button |
| Supply Voltage |
10 V DC … 30 V DC |
| Ripple |
< 10 % |
| Current Consumption |
40 mA |
| Switching Frequency |
10 kHz |
| Response Time |
100 µs |
| Stability of Response Time |
± 20 µs |
| Jitter |
40 µs |
| Switching Output |
PNP/NPN |
| Switching Output (Voltage) |
PNP: HIGH = VS– ≤ 2 V / LOW approx. 0 V; NPN: HIGH = approx. VS / LOW ≤ 2 V |
| Switching Output |
Light/dark switching |
| Output Current Imax |
100 mA |
| Initialization Time |
100 ms |
| Connection Type |
Male connector M8, 4-pin |
| Ambient Light Immunity |
Sunlight: ≤ 10,000 lx |
| Protection Class |
III |
| Circuit Protection |
UV connections, reverse polarity protected; Output Q short-circuit protected; Interference pulse suppression |
| Enclosure Rating |
IP65 |
| Weight |
Approx. 36 g … 160 g |
| Housing Material |
Metal, Aluminum |
