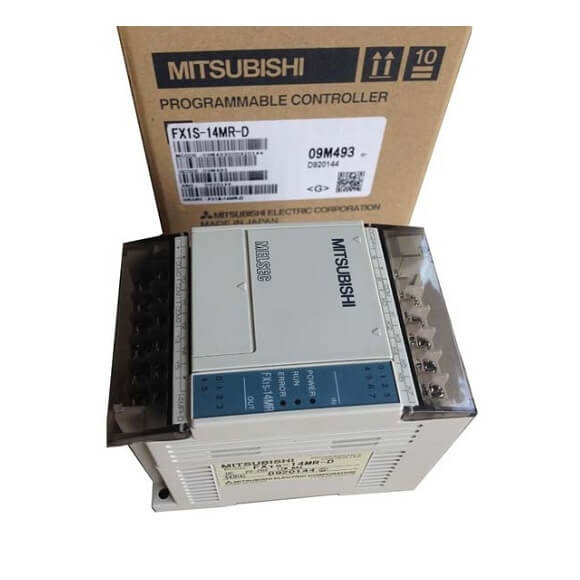

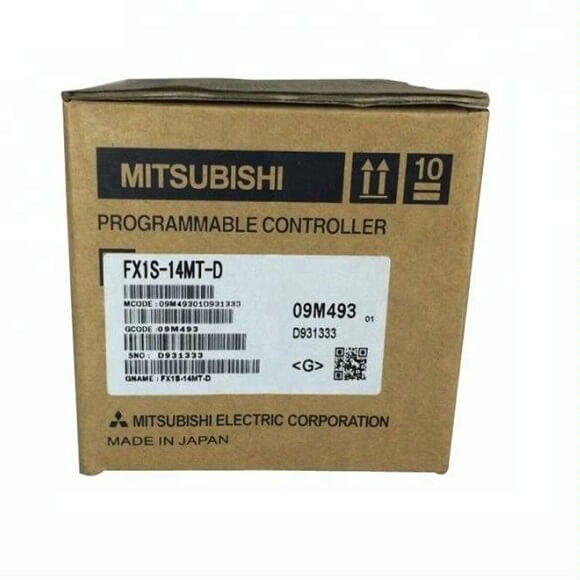

The Mitsubishi PLC Module FX1S-14MR-D/FX1S-14MT-D is a highly reliable, compact micro programmable logic controller designed for cost-effective automation of small machines and processes. This model features a built-in power supply, 14 I/O points (8 inputs and 6 outputs), and supports both relay (MR) and transistor (MT) output variants. With a program capacity of 2K steps stored in non-volatile EEPROM, it offers fast execution speeds and a rich instruction set including 29 basic, 2 step ladder, and up to 116 applied instructions. The FX1S series is renowned for its ease of programming, robust construction, and seamless integration into existing Mitsubishi automation networks.
| Parameter |
Specification |
Remarks |
| Operation control method |
Cyclic operation by stored program |
| I/O control method |
Batch processing method (when END instruction is executed) |
I/O refresh instruction is available |
| Operation processing time |
Basic instructions: 0.55 to 0.7 µs; Applied instructions: 1.65 to several 100 µs |
| Programming language |
Relay symbolic language + step ladder |
Step ladder can be used to produce an SFC style program |
| Program capacity |
2K steps |
Provided by built-in EEPROM memory |
| Number of instructions |
Basic sequence: 29; Step ladder: 2; Applied: 85 |
Maximum 116 applied instructions including all variations |
| I/O configuration |
Max total I/O set by Main Processing Unit |
| General (M) |
384 points |
M0 to M383 |
| Latched (M) |
128 points (subset) |
M384 to M511 |
| Special (M) |
256 points |
From M8000 to M8255 |
| General (S) |
128 points |
S0 to S127 |
| Initial (S) |
10 points (subset) |
S0 to S9 |
- Power Supply: Built-in 24V DC or 100-240V AC (depending on variant), with integrated power for I/O
- Output Type: Relay (MR) rated 2A/point or Transistor (MT) rated 0.5A/point, sink/source configurable
- Communication: Built-in RS-422 programming port; expandable via optional FX1N-232-BD or FX1N-485-BD boards
- Environmental: Operating temperature 0–55°C; humidity 35–85% RH (non-condensing); IP10 protection
- Mounting: Direct panel mounting or DIN rail (35mm) with optional adapter
- Dimensions: Compact footprint: 90mm (W) x 90mm (H) x 75mm (D) – ideal for space-constrained panels
- Compliance: CE, UL, cUL certified for global industrial use
