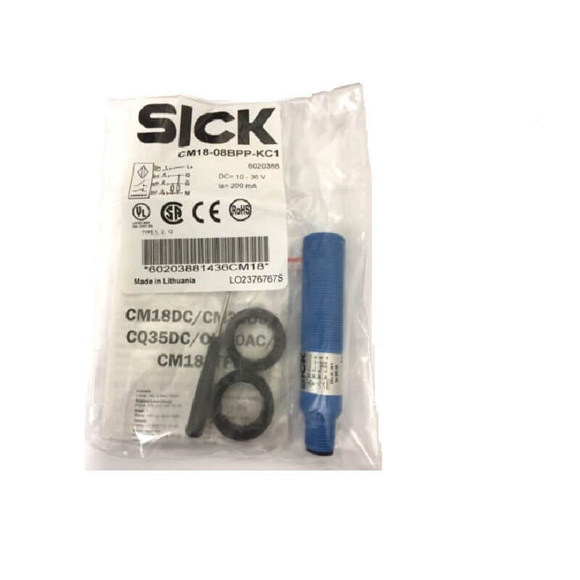

Sick Capacitive Proximity Sensor CM18-08BPP-TW0

Series#: Sick

Product Details

Model: SICK CM18-08BPP-TW0 / CM18-08BPP-KC1 — High-performance capacitive proximity sensors for demanding industrial applications.
Flush mountable M18 x 1 cylindrical housing with PTFE coating for exceptional chemical and wear resistance.
Adjustable sensing range from 3 mm to 8 mm with 270° potentiometer sensitivity adjustment.
PNP complementary output with 4-wire DC connection, ideal for complex control logic.
Rugged IP67 enclosure rating, shock and vibration resistant for harsh environments.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The SICK CM18-08BPP-TW0 and CM18-08BPP-KC1 capacitive proximity sensors are engineered for reliable non-contact detection of both conductive and non-conductive materials, including liquids, powders, and granular media. Featuring a compact M18 x 1 threaded housing with a robust PTFE coating, these sensors deliver superior performance in corrosive or sticky environments. With a flush installation design and a sensing range up to 8 mm, they are ideal for level monitoring, object detection, and position sensing in packaging, food processing, and chemical industries. The PNP complementary output and adjustable sensitivity via a 270° potentiometer provide flexibility for diverse control system integration. Backed by an IP67 rating and wide operating temperature range, these sensors ensure long-term reliability in the most demanding conditions.

Parameter	Specification
Housing	Cylindrical thread design
Thread size	M18 x 1
Diameter	Ø 18 mm
Sensing range Sn	3 mm … 8 mm
Safe sensing range Sa	5.76 mm
Installation type	Flush
Switching frequency	30 Hz
Connection type	Cable, 4-wire, 2 m (PVC)
Switching output	PNP
Output function	Complementary
Electrical wiring	DC 4-wire
Adjustment	Potentiometer, 270° (Sensitivity)
Enclosure rating	IP67
Supply voltage	10 V DC … 36 V DC
Ripple	≤ 10 %
Voltage drop	≤ 2.5 V DC
Current consumption	10 mA
Time delay before availability	≤ 100 ms
Hysteresis	4 % … 20 %
Reproducibility	≤ 5 %
Temperature drift (of Sr)	± 10 %
EMC	According to EN 60947-5-2
Continuous current Ia	≤ 200 mA
Cable material	PVC
Conductor size	0.34 mm²
Short-circuit protection	✔
Reverse polarity protection	✔
Power-up pulse protection	✔
Shock and vibration resistance	30 g, 11 ms / 10 … 55 Hz, 1 mm
Ambient operating temperature	–25 °C … +60 °C
Housing material	PTFE coating, PTFE
Housing length	71.5 mm
Thread length	46.5 mm
Tightening torque, max.	≤ 2.6 Nm
Items supplied	Mounting nut, PTFE plastic (2x); Screwdriver for potentiometer adjustment (1x)
