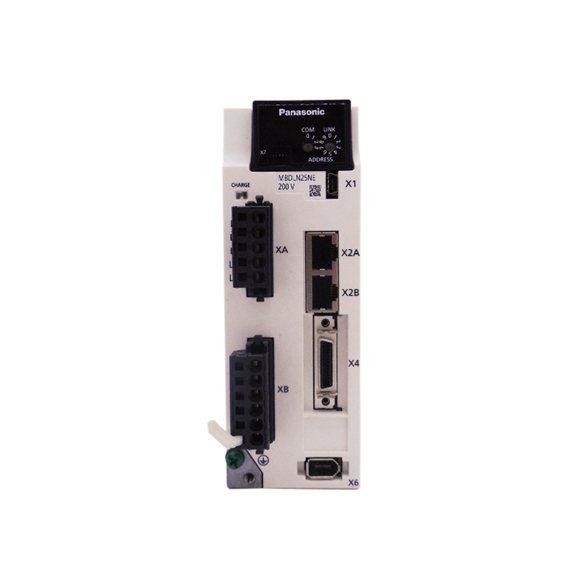

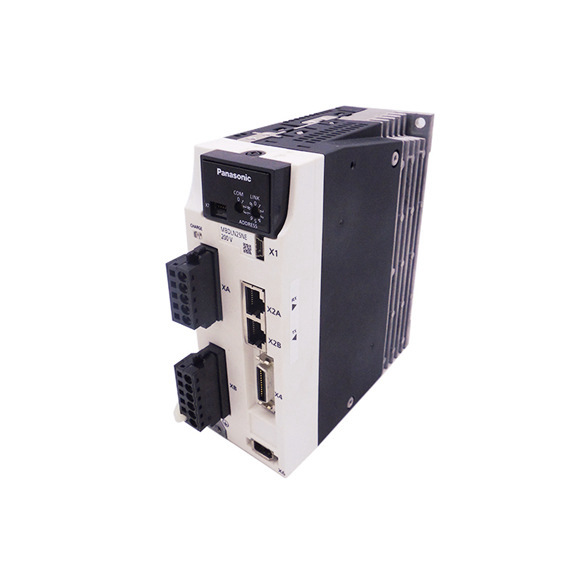

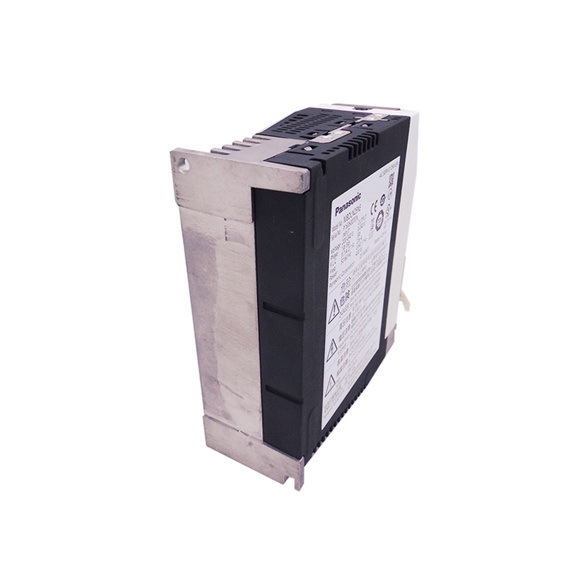

Panasonic Servo Driver MINAS A4 3KW MDDDT3530003

Series#: Panasonic

Product Details

Panasonic MINAS A4 Servo Driver, 3KW models MDDDT3530003, MDDDT3530053, and 052, engineered for high-precision motion control.
Supports 17-bit (131072 resolution) absolute/incremental encoder feedback for ultra-smooth positioning.
Versatile control modes: Position, Velocity, Torque, and Full-closed control with seamless switching.
Robust IGBT PWM sinusoidal wave drive with multi-voltage input options (100V, 200V single/3-phase).
Integrated RS232/RS485 communication for up to 15-axis network control via host interface.
Built-in dynamic brake and regenerative resistor (C to F-frame) for enhanced safety and reliability.

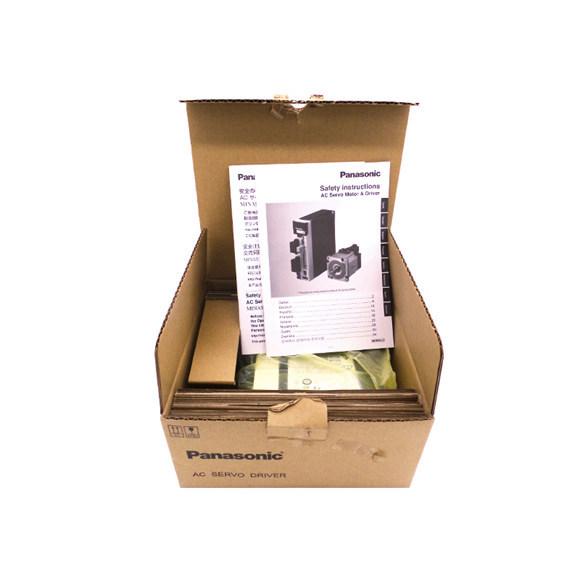

100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Panasonic MINAS A4 series servo drivers, including the high-power 3KW models MDDDT3530003, MDDDT3530053, and 052, are industrial-grade motion controllers designed for demanding automation applications. These drives deliver exceptional performance with advanced encoder feedback, flexible control modes, and robust communication capabilities, ensuring precise and reliable operation in machine tools, robotics, and packaging systems. Below are the comprehensive technical specifications for these models.

Specification	Details
Model Series	Panasonic Servo Driver MINAS A4 (3KW, MDDDT3530003, MDDDT3530053, 052)
Main Circuit Voltage (100V)	Single phase, 100 – 115V + 10% 50/60Hz –15%
Control Circuit Voltage (100V)	Single phase, 100 – 115V + 10% 50/60Hz –15%
Main Circuit Voltage (200V A/B-frame)	Single phase, 200 – 240V + 10% 50/60Hz –15%
Main Circuit Voltage (200V C/D-frame)	Single/3-phase, 200 – 240V + 10% 50/60Hz –15%
Main Circuit Voltage (200V E/F-frame)	3-phase, 200 – 230V + 10% 50/60Hz –15%
Control Circuit Voltage (A to D-frame)	Single phase, 200 – 240V + 10% 50/60Hz –15%
Control Circuit Voltage (E/F-frame)	Single phase, 200 – 230V + 10% 50/60Hz –15%
Operating Temperature	0 to 55°C
Storage Temperature	–20 to +80°C
Humidity	Operating & Storage: 90%RH or less (no condensation)
Altitude	1000m or lower
Vibration Resistance	5.88 m/s² or less, 10 to 60Hz (no continuous use at resonance)
Control Method	IGBT PWM Sinusoidal wave drive
Encoder Feedback	17-bit (131072 resolution) absolute/incremental encoder; 2500 P/r (10000 resolution) incremental encoder
External Scale Feedback	Mitutoyo AT500 series (0.05mm res., max 2 m/s); Mitutoyo ST771 (0.5mm res., max 2 m/s)
Control Signal Inputs	10 inputs: Servo-ON, Control mode switching, Gain/Torque limit switching, Alarm clear (others vary by mode)
Control Signal Outputs	6 outputs: Servo alarm, Servo ready, External brake release, Zero speed detection, Torque in-limit (others vary)
Analog Signal Inputs	3 inputs (16-bit A/D: 1 input, 10-bit A/D: 2 inputs)
Analog Signal Outputs	2 outputs (monitoring): Velocity monitor (actual speed or command), Torque monitor (approx. 3V/rated torque)
Pulse Signal Inputs	4 inputs (selectable line driver or photo-coupler via parameter)
Pulse Signal Outputs	4 outputs: Encoder pulse (A, B, Z-phase) or external scale pulse (EXA, EXB, EXZ-phase) in line driver; Z/EXZ-phase via open collector
Communication RS232	1:1 communication to host via RS232 interface
Communication RS485	1:n communication up to 15 axes via RS485 interface
Front Panel	5 keys (MODE, SET, UP, DOWN, SHIFT); 6-digit LED display
Regeneration	A/B-frame: external resistor only; C to F-frame: built-in regenerative resistor (external also supported)
Dynamic Brake	Setup for Power-OFF, Servo-OFF, protective function activation, and over-travel inhibit
Control Modes	7 modes: Position, Velocity, Torque, Position/Velocity, Position/Torque, Velocity/Torque, Full-closed control
