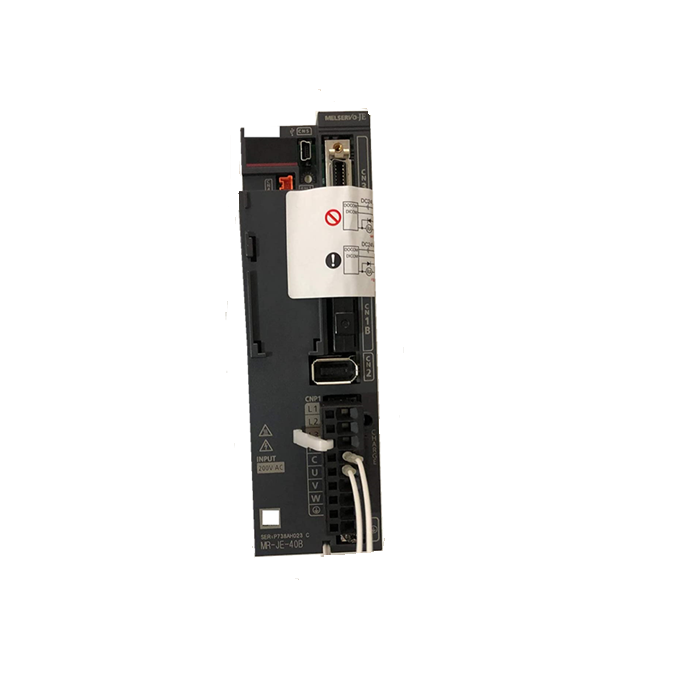

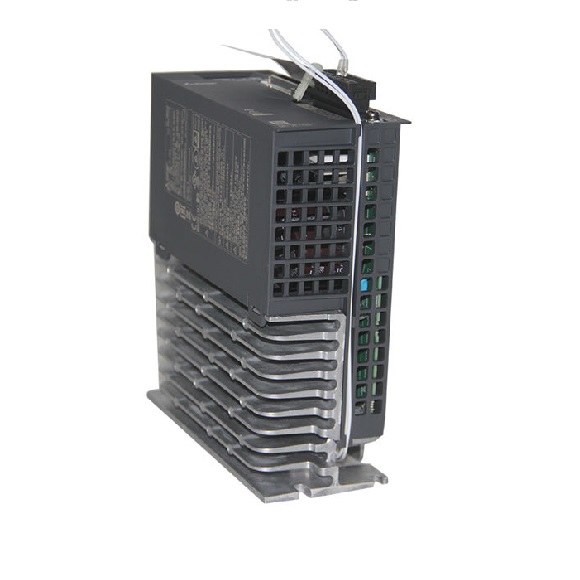

Mitsubishi MR-JE-40B Servo Drive

Series#: Mitsubishi

Product Details

High-performance Mitsubishi Servo Drive MR-JE-40B, 400W rated output for precision motion control.
Advanced Sine-wave PWM control with current control method for smooth, efficient operation.
Built-in dynamic brake and regenerative resistor (20W) for enhanced safety and energy recovery.
Supports SSCNET III/H communication with 0.444 ms or 0.888 ms cycle for high-speed command response.
Equipped with advanced vibration suppression, auto tuning, and tough drive function for robust performance.
Rugged IP20 natural cooling design, suitable for 3-phase 170V AC or 1-phase/3-phase 200-240V AC operation.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Mitsubishi Servo Drive MR-JE-40B is a compact and reliable servo amplifier designed for high-performance motion control applications. As part of the MR-JE-B Series, this 400W drive delivers exceptional accuracy and responsiveness, making it ideal for packaging, robotics, and general automation tasks. The MR-JE-40B features a versatile power supply input, supporting both 3-phase 170V AC and 3-phase or 1-phase 200V AC to 240V AC, ensuring compatibility with diverse industrial systems. With advanced control algorithms including adaptive filter II and one-touch tuning, it simplifies setup while maximizing machine throughput and precision.

Parameter	Specification (MR-JE-40B)	Notes
Model	MR-JE-40B (400W)	Part of MR-JE-B Series
Power Supply Input	3-phase 170V AC; 3-phase or 1-phase 200V AC to 240V AC, 50/60 Hz	Permissible voltage fluctuation: 170V AC to 264V AC
Rated Current (Main Circuit)	6.0 A	At 3-phase 170V AC
Rated Current (Control Circuit)	5.0 A	At 3-phase 200-240V AC
Interface Power Supply	24V DC ±10%, 0.1A	Required for control logic
Control Method	Sine-wave PWM control / Current control	High-precision torque and speed regulation
Communication Protocol	SSCNET III/H	Communication cycle: 0.444 ms or 0.888 ms
Built-in Regenerative Resistor	20W (tolerable)	For energy dissipation during deceleration
Dynamic Brake	Built-in	Emergency stop protection
Protective Functions	Overcurrent, regenerative overvoltage, overload, motor overheat, encoder error, undervoltage, overspeed, etc.	Includes hotline forced stop
Servo Functions	Advanced vibration suppression II, adaptive filter II, auto tuning, one-touch tuning, tough drive, drive recorder, tightening & press-fit, machine diagnosis, power monitoring, lost motion compensation	Comprehensive suite for complex applications
Communication Interface	USB (MR Configurator2 compatible)	For PC-based setup and diagnostics
Ambient Temperature	Operation: 0°C to 55°C; Storage: -20°C to 65°C	Non-freezing
Ambient Humidity	90% RH max (non-condensing)	Operation and storage
Structure (IP Rating)	Natural cooling, open type (IP20)	Indoor use only
Vibration Resistance	5.9 m/s² at 10 Hz to 55 Hz (X, Y, Z axes)	Reliable under industrial conditions
Mass	1.5 kg	Lightweight and compact
Compliance	Refer to catalog for global standards	CE, UL, etc. (varies by region)
