Mitsubishi MR-J3-350B Servo Drive

Series#: Mitsubishi

Product Details

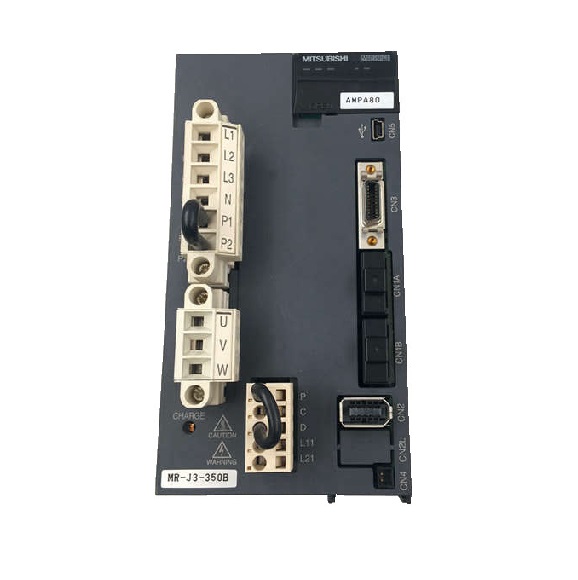

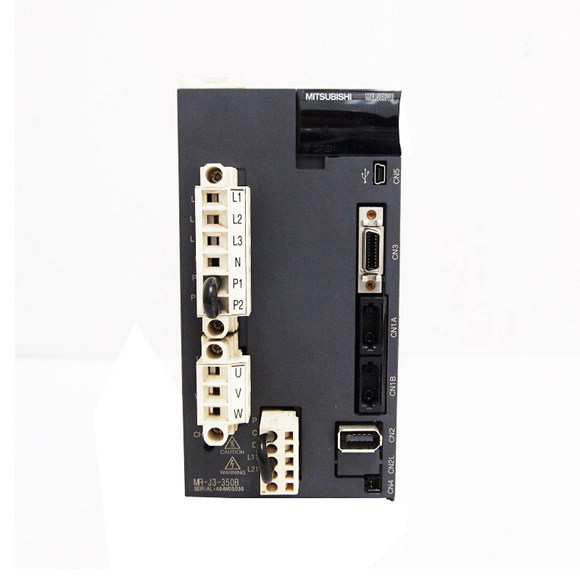

Product Model: MITSUBISHI SERVO DRIVE MR-J3-350B – High-performance 3.5kW AC servo amplifier for precision motion control.
Advanced Sine-wave PWM Control – Ensures smooth, low-torque ripple operation for demanding industrial applications.
Built-in Dynamic Brake – Integrated for safe and rapid deceleration, enhancing system reliability.
High-Resolution Feedback – 262,144 pulses/rev encoder support for ultra-precise positioning.
Multi-Mode Flexibility – Supports position, speed, and torque control modes with extensive parameter tuning.
Robust Protection Suite – Overcurrent, overvoltage, overload, and encoder fault protection for long service life.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Mitsubishi Servo Drive MR-J3-350B is a 3.5 kW AC servo amplifier designed to deliver exceptional performance in high-speed, high-precision automation systems. Part of the renowned MR-J3 series, this unit features advanced sine-wave PWM current control, ensuring minimal torque ripple and superior energy efficiency. With a wide input voltage range (3-phase 200-230 VAC, 50/60 Hz) and a permissible fluctuation of 170-253 VAC, it is built for stable operation in industrial environments. The drive integrates a built-in regenerative resistor (130 W) and dynamic brake, while supporting multiple control modes—position, speed, and torque—via electronic gearing and analog inputs. Its safety features include overcurrent, overvoltage, overload, encoder fault, and undervoltage protection, making it a reliable choice for CNC machinery, robotics, and packaging lines.

Parameter	Specification
Servo Amplifier Model	MR-J3-350B
Rated Output Power	3.5 kW
Main Power Supply	3-phase 200 to 230 VAC, 50/60 Hz
Permissible Voltage Fluctuation	3-phase 170 to 253 VAC
Permissible Frequency Fluctuation	±5% maximum
Power Consumption (W)	45 W
Interface Power Supply	24 VDC ±10%, 300 mA required
Built-in Regenerative Resistor	130 W
Control System	Sine-wave PWM control / current control system
Dynamic Brake	Built-in
Maximum Input Pulse Frequency	1 Mpps (differential receiver), 200 kpps (open collector)
Positioning Feedback Pulse	262,144 pulses/rev (encoder resolution)
Command Pulse Multiple (Electronic Gear)	A: 1 to 1,048,576; B: 1 to 1,048,576; 1/10 < A/B < 2000
Positioning Complete Width	0 to ±10,000 pulses (command pulse unit)
Excess Error	±3 rotations
Torque Limit	Set by parameters or external analog input (0 to +10 VDC)
Speed Control Range (Analog/Internal)	1:2000 (analog), 1:5000 (internal)
Analog Speed Command Input	0 to ±10 VDC / rated speed
Speed Fluctuation Rate	±0.01% max (load 0-100%), ±0.2% max (temp 25°C±10°C)
Analog Torque Command Input	0 to ±8 VDC / maximum torque
Speed Limit (Torque Mode)	Set by parameters or analog input (0 to ±10 VDC)
Structure	Fan cooling open (IP00)
Ambient Temperature	0 to 55°C (operation), -20 to 65°C (storage)
Ambient Humidity	90% RH max (non-condensing)
Atmosphere	Indoors, no corrosive/inflammable gas, oil mist or dust
Elevation	1000 m or less above sea level
Vibration	5.9 m/s² maximum
Weight	Approx. 2.3 kg (5.1 lb)
