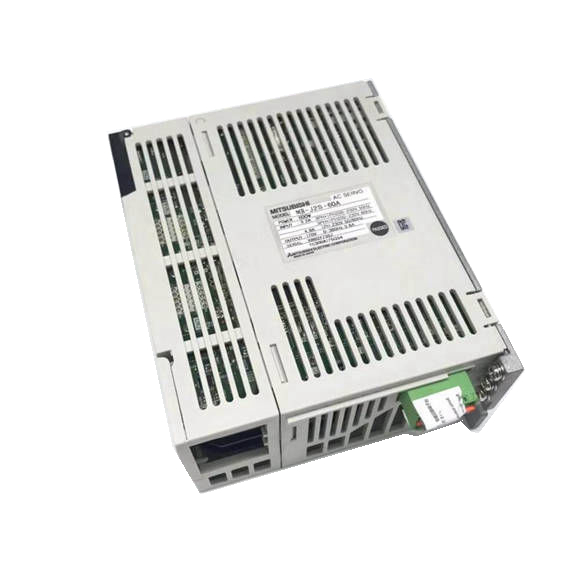

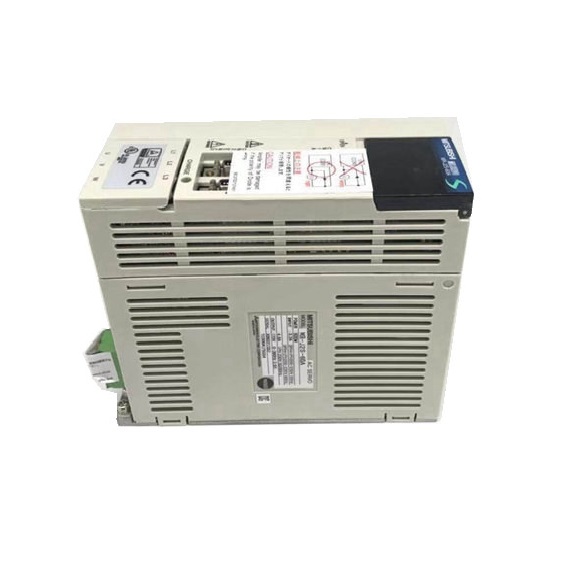

Mitsubishi MR-J2S-60A Servo Drive

Series#: Mitsubishi

Product Details

MITSUBISHI SERVO DRIVE MR-J2S-60A – High-performance, 600W servo amplifier for precision motion control applications.
Advanced Sine-wave PWM control with current control system for smooth, accurate torque and speed regulation.
Built-in dynamic brake (for AC models) and comprehensive safety features including overcurrent, overload, and encoder fault protection.
Wide speed control range: 1:2000 with analog command, 1:5000 with internal command, ideal for demanding automation tasks.
High-resolution encoder feedback: 131,072 pulses per revolution for precise positioning and repeatability.
Compact, self-cooling IP00 enclosure (MR-J2S-60A) rated for 0 to 55°C ambient temperature, ensuring reliable operation in industrial environments.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

WhatsApp Inquiry

Specification

Datasheet (PDF)

Product Overview

The MITSUBISHI SERVO DRIVE MR-J2S-60A is a robust 600W servo amplifier from the renowned MR-J2S series, designed to deliver exceptional performance in high-precision motion control systems. This unit features a sophisticated sine-wave PWM current control system, ensuring smooth torque output and minimal ripple. With its wide input voltage tolerance (1-phase or 3-phase 200-230VAC) and built-in protection mechanisms, the MR-J2S-60A is ideal for applications such as CNC machinery, robotics, packaging equipment, and automated assembly lines. The drive supports both position and speed control modes, with an electronic gear function for flexible command scaling. Each unit is 100% original and new, shipped directly from our global warehouse to minimize lead times for your projects.

Detailed Technical Specifications

Parameter	MR-J2S-60A (AC Models)	Other AC Models (e.g., MR-J2S-10A to 30KA)	DC Models (e.g., MR-J2S-10A1 to 40A1)
Rated Output Power	600W (0.6 kW)	Varies per model (e.g., 100W to 30kW)	Varies per model (e.g., 100W to 400W)
Main Circuit Power Supply	1-phase 230VAC 50/60Hz or 3-phase 200-230VAC 50/60Hz	1-phase 230VAC (smaller models) or 3-phase 200-230VAC (larger models)	1-phase 100-120VAC 50/60Hz
Control Circuit Power Supply	1-phase 200-230VAC 50/60Hz	1-phase 200-230VAC 50/60Hz	1-phase 100-120VAC 50/60Hz
Permissible Voltage Fluctuation (Main Circuit)	3-phase: 170-253VAC; 1-phase: 207-253VAC	3-phase: 170-253VAC; 1-phase: 207-253VAC (where applicable)	1-phase: 85-127VAC
Permissible Frequency Fluctuation	±5% max	±5% max	±5% max
Control System	Sine-wave PWM current control	Sine-wave PWM current control	Sine-wave PWM current control
Dynamic Brake	Built-in	Built-in (models up to 700A); External option for 11KA to 30KA	Built-in
Safety Features	Overcurrent, regeneration overvoltage, overload (electronic thermal), motor overheat, encoder fault, regeneration fault, undervoltage, overspeed, excess error protection	Same as MR-J2S-60A	Same as MR-J2S-60A
Max Input Pulse Frequency	500 kpps (differential receiver); 200 kpps (open collector)	500 kpps (differential receiver); 200 kpps (open collector)	500 kpps (differential receiver); 200 kpps (open collector)
Positioning Feedback Pulse	131,072 p/rev (encoder resolution)	131,072 p/rev (encoder resolution)	131,072 p/rev (encoder resolution)
Electronic Gear (Position Command Multiple)	A/B multiple: A = 1 to 65535 or 131072; B = 1 to 65535; 1/50 < A/B < 500	Same as MR-J2S-60A	Same as MR-J2S-60A
Torque Limit	Set via parameters or external analog input (0 to +10VDC / max torque)	Set via parameters or external analog input (0 to +10VDC / max torque)	Set via parameters or external analog input (0 to +10VDC / max torque)
Speed Control Range	Analog command: 1:2000; Internal command: 1:5000	Analog command: 1:2000; Internal command: 1:5000	Analog command: 1:2000; Internal command: 1:5000
Structure (Enclosure)	Self-cooling, open (IP00)	Self-cooling (smaller models) or fan-cooled (larger models), open (IP00)	Self-cooling, open (IP00)
Ambient Temperature	0 to 55°C (32 to 131°F), non-freezing; Storage: -20 to 65°C (-4 to 149°F)	0 to 55°C (32 to 131°F), non-freezing; Storage: -20 to 65°C (-4 to 149°F)	0 to 55°C (32 to 131°F), non-freezing; Storage: -20 to 65°C (-4 to 149°F)
Ambient Humidity	90% RH max, non-condensing; Storage: 90% RH max	90% RH max, non-condensing; Storage: 90% RH max	90% RH max, non-condensing; Storage: 90% RH max
Atmosphere	Indoors, no direct sunlight; free from corrosive gas, inflammable gas, oil mist, or dust	Same as MR-J2S-60A	Same as MR-J2S-60A
Elevation	1000m (3280 ft) max above sea level	1000m (3280 ft) max above sea level	1000m (3280 ft) max above sea level
Vibration Resistance	5.9 m/s² max	5.9 m/s² max	5.9 m/s² max
