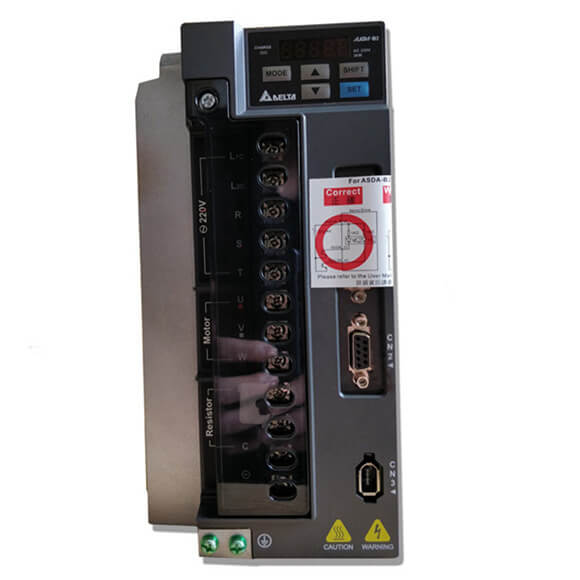

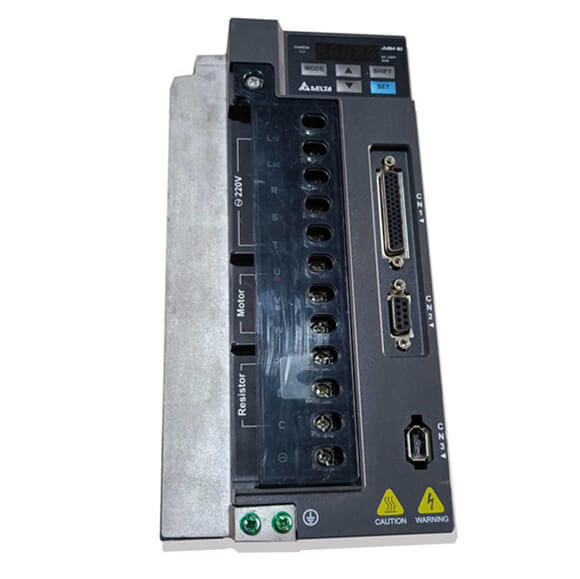

Delta ASDA-B2 Servo Drive 2kW ASD-B2-2023-B

Series#: Delta

Product Details

Model: DELTA ASDA-B2 SERVO DRIVE 2KW ASD-B2-2023-B – High-performance servo drive for precision motion control.
17-bit (160,000 p/rev) high-resolution encoder feedback for ultra-smooth, accurate positioning.
Wide power range from 100W to 3kW, with the 2kW model supporting three-phase 170~255VAC input.
Advanced tuning modes: Auto/Manual tuning with built-in dynamic brake (for 750W and above models).
Versatile command sources: External pulse train, analog signals, or internal parameters for flexible control.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The DELTA ASDA-B2 SERVO DRIVE 2KW ASD-B2-2023-B is a robust and reliable solution for demanding industrial automation applications, offering exceptional torque and speed control. This drive integrates SVPWM (Space Vector Pulse Width Modulation) control technology, ensuring efficient motor operation with minimal harmonics. With a maximum input pulse frequency of 4Mpps in high-speed mode and support for multiple pulse types (Pulse + Direction, A+B phase, CCW+CW), it seamlessly interfaces with a wide range of CNC controllers and PLCs. The built-in electronic gear function (N/M ratio from 1/50 to 25600) simplifies system integration, while the low-pass and S-curve filters enhance motion smoothness. The unit's continuous output current is rated at 13.4 Arms, and its speed control range extends to an impressive 550Hz responsiveness. For models from 750W and above, the integrated dynamic brake ensures safe deceleration during emergency stops. The drive is designed for easy setup via auto-tuning or manual parameter configuration, and it supports external analog torque limits for advanced process control. All components are 100% Original and New, with worldwide shipping available from stock.

Parameter	100W Models	200W Models	400W Models	750W Models	1kW Models	1.5kW Models	2kW Models (ASD-B2-2023-B)	3kW Models
Power Rating	100W	200W	400W	750W	1kW	1.5kW	2kW	3kW
Phase / Voltage	Three-phase: 170~255VAC, 50/60Hz ±5% Single-phase: 200~255VAC, 50/60Hz ±5%	Three-phase: 170~255VAC, 50/60Hz ±5%
Continuous Output Current	0.9 Arms	1.55 Arms	2.6 Arms	5.1 Arms	7.3 Arms	8.3 Arms	13.4 Arms	19.4 Arms

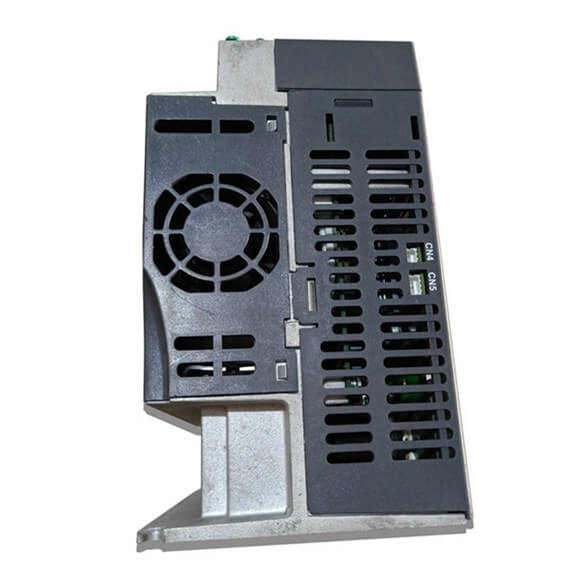

Cooling System	Natural Air Circulation	Fan Cooling
Encoder Resolution / Feedback Resolution	17-bit (160,000 p/rev)
Control of Main Circuit	SVPWM Control
Tuning Modes	Auto / Manual
Dynamic Brake	–	Built-in
Max. Input Pulse Frequency	Line driver: Max. 500Kpps (low speed) / Max. 4Mpps (high speed) Open collector: Max. 200Kpps
Pulse Type	Pulse + Direction, A phase + B phase, CCW pulse + CW pulse
Command Source	External pulse train / Internal parameters
Smoothing Strategy	Low-pass filter
Electronic Gear	N/M multiple: N: 1 ~ (2^26-1) / M: 1 ~ (2^31-1) 1/50 < N/M < 25600
Torque Limit Operation	Set by parameters
Feed Forward Compensation	Set by parameters
Analog Input Command Voltage Range	0 ~ ±10 VDC
Input Resistance	10 kΩ
Time Constant	2.2 μs
Speed Control Range	1:5000
Command Source (Speed)	External analog signal / Internal parameters
Smoothing Strategy (Speed)	Low-pass and S-curve filter
Torque Limit Operation (Speed)	Set by parameters or via Analog input
Responsiveness Characteristic	Maximum 550 Hz
