Delta ASDA-B2 Servo Drive 100W ASD-B2-0121-B

Series#: Delta

Product Details

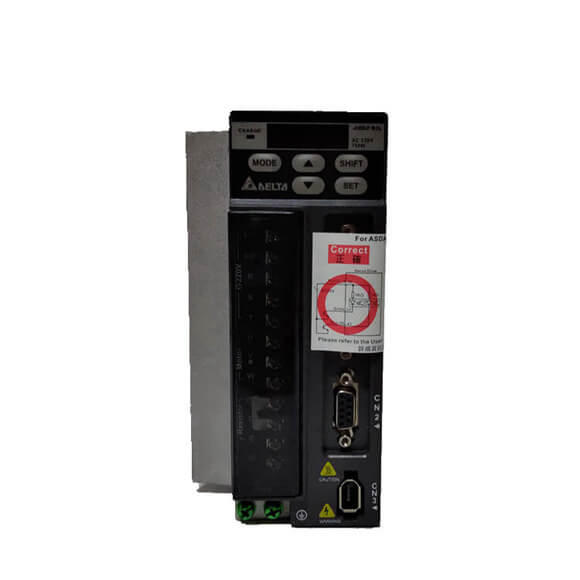

Product Model: DELTA ASDA-B2 Servo Drive ASD-B2-0121-B (100W) – Precision motion control solution for compact automation applications.
17-bit High-Resolution Encoder (160,000 p/rev) – Ensures ultra-smooth positioning and minimal vibration.
Auto/Manual Tuning Modes – Simplifies setup and optimizes performance for varying loads.
Multi-Pulse Input Support – Compatible with line driver (up to 4Mpps) and open collector (200Kpps) signals.
Built-in Dynamic Brake (for 750W to 3kW models) – Enhances safety and stopping precision.
Wide Power Range Coverage – From 100W to 3kW, ideal for CNC, packaging, and robotic axis control.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The DELTA ASDA-B2 Servo Drive ASD-B2-0121-B (100W) is a highly reliable, cost-effective servo drive engineered for precision motion control in industrial automation. As part of the ASDA-B2 series, this drive delivers exceptional feedback resolution with a 17-bit encoder, supporting both position and speed control modes. It is designed to operate with three-phase or single-phase AC input (170–255VAC, 50/60Hz) and features advanced SVPWM control for smooth torque output. The ASD-B2-0121-B is ideal for use in small-scale positioning systems, such as pick-and-place machines, labeling equipment, and conveyor indexing stations. Below is the detailed technical specification table for the entire ASDA-B2 series, including the 100W model.

Parameter	100W (ASD-B2-0121-B)	200W	400W	750W	1kW	1.5kW	2kW	3kW
Phase / Voltage	Three-phase: 170~255VAC, 50/60Hz ±5% Single-phase: 200~255VAC, 50/60Hz ±5%	Three-phase: 170~255VAC, 50/60Hz ±5%
Continuous Output Current	0.9 Arms	1.55 Arms	2.6 Arms	5.1 Arms	7.3 Arms	8.3 Arms	13.4 Arms	19.4 Arms
Cooling System	Natural Air Circulation	Fan Cooling
Encoder Resolution / Feedback	17-bit (160,000 p/rev)
Control of Main Circuit	SVPWM Control
Tuning Modes	Auto / Manual
Dynamic Brake	–	Built-in
Max. Input Pulse Frequency	Line driver: Max. 500Kpps (low speed) / Max. 4Mpps (high speed) Open collector: Max. 200Kpps
Pulse Type	Pulse + Direction, A phase + B phase, CCW pulse + CW pulse
Command Source (Position)	External pulse train / Internal parameters
Smoothing Strategy (Position)	Low-pass filter
Electronic Gear	N/M multiple: N: 1~(2^26-1), M: 1~(2^31-1) 1/50 < N/M < 25600
Torque Limit Operation	Set by parameters
Feed Forward Compensation	Set by parameters
Analog Input Command Voltage Range	0 ~ ±10 VDC
Input Resistance	10 kΩ
Time Constant	2.2 μs
Speed Control Range	3.5:1 (typical)
Command Source (Speed)	External analog signal / Internal parameters
Smoothing Strategy (Speed)	Low-pass and S-curve filter
Torque Limit Operation (Speed)	Set by parameters or via Analog input
Responsiveness Characteristic	Maximum 550 Hz
