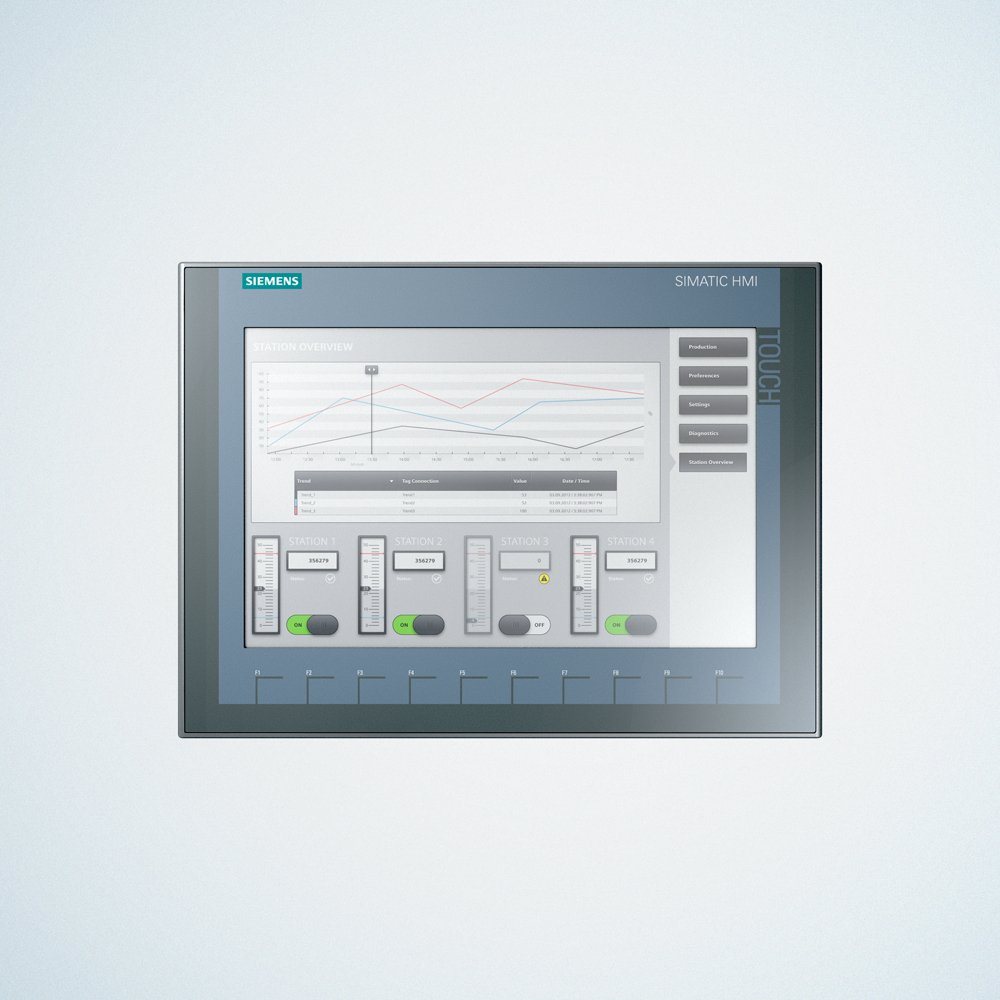

The KTP1200 Basic DP 12" HMI (6AV2123-2MA03-0AX0) is a high-performance operator panel designed for medium-range automation tasks, particularly in PROFIBUS networks. Featuring a vibrant 12-inch TFT display with 64K colors and a resolution of 1280 x 800 pixels, this unit ensures clear visualization of process data. With a robust combination of touch screen and 10 function keys, it provides intuitive control for demanding applications. The device is engineered for seamless integration with S7-1200 controller systems and supports extensive software functions including vector graphics, bar graphics, curve diagrams, recipes, and archiving. Its IP65 front protection and compact dimensions make it suitable for panel mounting in industrial settings.
| Technical Data |
KTP1200 Basic DP |
| Display |
12 inch TFT, 64K colors |
| Resolution |
1280 x 800 pixels |
| Control Elements |
Touch screen / 10 Function keys |
| User Memory |
10 MB |
| Interfaces |
1 x RS 485 for PROFIBUS/MPI, 1 x USB host |
| Degree of Protection |
IP65 (front), NEMA 4x / IP20 (rear) |
| Installation Cutout |
310 x 221 mm (W x H) |
| Front Panel |
330 x 245 mm (W x H) |
| Device Depth |
62 mm |
| Configuration Software |
WinCC Basic (TIA Portal) V13 or higher |
| Messages |
1000 |
| Message Classes |
32 |
| Process Screens |
100 |
| Tags |
800 |
| Vector Graphics |
Supported |
| Bar Graphics |
Supported |
| Curve Diagrams |
f(t) |
| Recipes |
50 |
| Archiving |
Supported |
| Article No. |
6AV2123-2MA03-0AX0 |
- Communication Protocol: PROFIBUS DP via RS 485 for deterministic fieldbus connectivity
- Display Quality: 64K color TFT with wide viewing angle for readability in varied lighting
- Memory Capacity: 10 MB user memory supports complex projects with extensive tag and screen data
- Software Compatibility: Fully compatible with WinCC Basic (TIA Portal) V13 and later versions
- Functional Capabilities: Supports vector graphics, bar graphs, trend curves, recipe management, and data archiving
- Environmental Resilience: IP65 front rating ensures protection against dust and water jets, suitable for washdown areas
- Mechanical Design: Compact 62 mm depth allows easy integration into standard control panels
