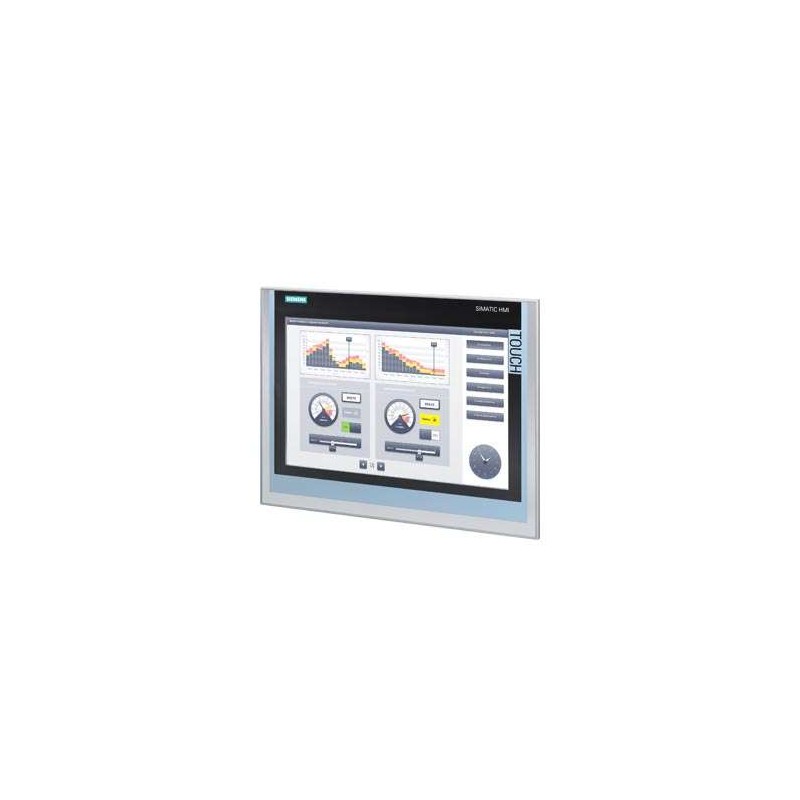

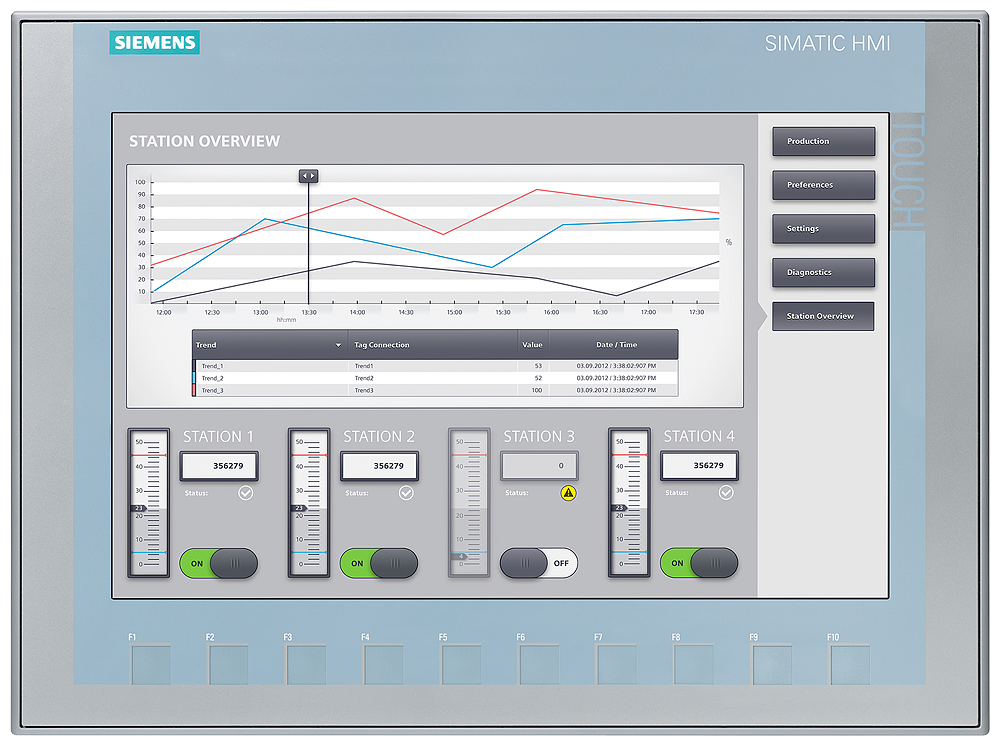

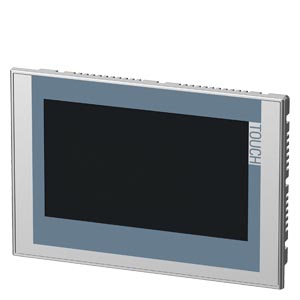

The KTP1200 Basic 12" HMI 6AV2123-2MB03-0AX0 is a robust human-machine interface designed for medium-performance automation tasks in PROFINET environments. Featuring a 12-inch widescreen TFT display with 1280 x 800 pixels and 64K colors, it delivers crisp visuals for complex process visualization. With 10 function keys and a responsive touch screen, operators can efficiently control and monitor S7-1200 controller systems. This unit is ideal for applications requiring high-resolution graphics, extensive tag handling, and reliable industrial-grade protection.
| Technical Data |
KTP1200 Basic (PN) |
KTP1200 Basic DP |
| Hardware |
– |
| Display |
12 inch TFT, 64K colors |
| Resolution |
1280 x 800 |
| Control Elements |
Touch screen / 10 function keys |
| User Memory |
10 MB |
| Interfaces |
1 x RJ45 (PROFINET), 1 x USB host |
1 x RS485 (PROFIBUS/MPI), 1 x USB host |
| Degree of Protection |
IP65 (front), NEMA 4x (front when mounted), IP20 (rear) |
| Installation Cutout |
310 x 221 mm (W x H) |
| Front Panel |
330 x 245 mm (W x H) |
| Device Depth |
62 mm |
| Software Functions |
– |
| Configuration Software |
WinCC Basic (TIA Portal) V13 or higher |
| Messages |
1000 |
– |
| Message Classes |
32 |
– |
| Process Screens |
100 |
– |
| Tags |
800 |
– |
| Vector Graphics |
Yes |
– |
| Bar Graphics |
Yes |
– |
| Curve Diagrams |
f(t) |
– |
| Recipes |
50 |
– |
| Archiving |
Yes |
– |
| Article No. |
6AV2123-2MB03-0AX0 |
6AV2123-2MA03-0AX0 |
- Display Performance: 12-inch widescreen TFT with 64K colors ensures high-contrast visuals for detailed HMI screens.
- User Memory: 10 MB onboard memory supports up to 800 tags, 1000 messages, and 100 process screens.
- Connectivity: One RJ45 for PROFINET (10/100 Mbps) and one USB host for data logging or firmware updates.
- Durability: IP65 front panel rated for washdown environments; IP20 rear allows flexible cabinet mounting.
- Software Integration: Fully compatible with WinCC Basic in TIA Portal V13 and later, enabling seamless project engineering.
- Mechanical Dimensions: Front panel 330 x 245 mm, cutout 310 x 221 mm, depth 62 mm – standard panel mount.
