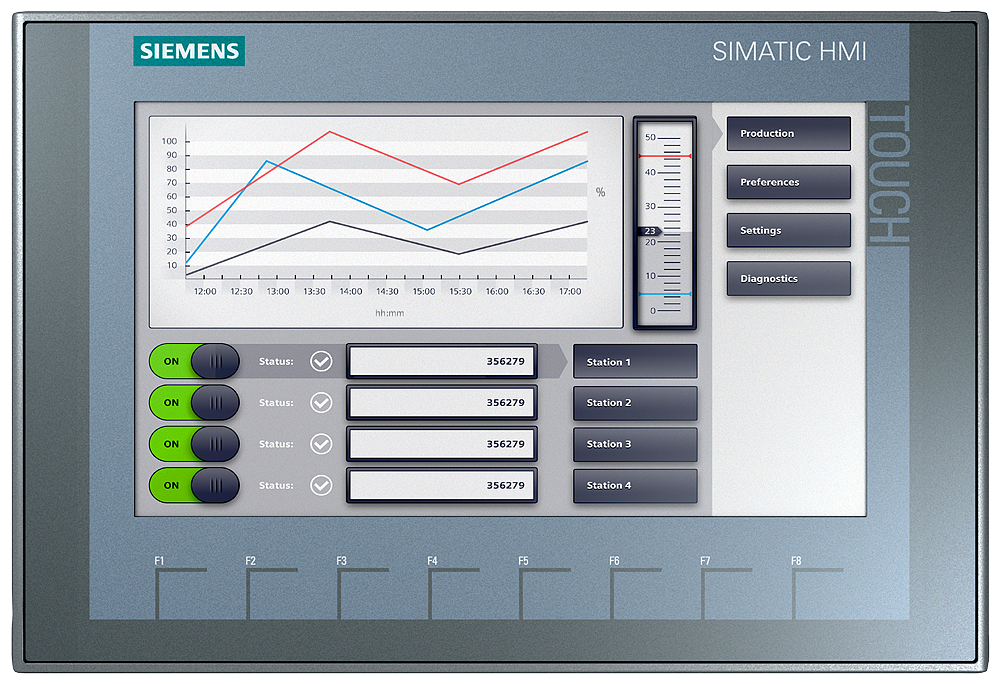

The KTP900 Basic 9" HMI (6AV2123-2JB03-0AX0) is a versatile and durable human-machine interface designed for medium-performance HMI tasks, particularly with SIMATIC S7-1200 controllers and other third-party systems. Featuring a 9-inch widescreen TFT display with 64K colors and an 800 x 480 pixel resolution, it offers clear visualization and responsive touch control complemented by 8 tactile function keys. This unit is engineered for PROFINET networks via its dedicated RJ45 interface, ensuring reliable data exchange in modern industrial environments. With a robust IP65 front protection, 10 MB user memory, and support for up to 1000 messages, it is ideal for applications requiring high uptime and operational efficiency. Below are the detailed technical specifications and additional features.
| Technical Data |
KTP900 Basic (6AV2123-2JB03-0AX0) |
| Display |
9 inch TFT, 64K colors |
| Resolution |
800 x 480 px |
| Control Elements |
Touch screen / 8 Function keys |
| User Memory |
10 MB |
| Interfaces |
1 x RJ45 for PROFINET / 1 x USB host |
| Degree of Protection |
IP65, NEMA 4x (front if mounted) / IP20 rear |
| Installation Cutout |
251 x 166 mm (W x H) |
| Front Panel |
267 x 182 mm (W x H) |
| Device Depth |
47 mm |
| Configuration Software |
WinCC Comfort (TIA Portal) V13 or higher |
| Messages |
1000 |
| Message Classes |
32 |
| Process Screens |
100 |
| Tags |
800 |
| Vector Graphics |
Supported |
| Bar Graphics |
Supported |
| Curve Diagrams |
f(t) |
| Recipes |
50 |
| Archiving |
Supported |
| Article No. |
6AV2123-2JB03-0AX0 |
- High-Contrast Display: 9-inch TFT with 64K colors ensures readability even in bright industrial lighting conditions.
- Enhanced Connectivity: Single RJ45 port supports PROFINET for real-time communication with controllers like S7-1200.
- Rugged Enclosure: IP65/NEMA 4X front protection withstands dust, moisture, and washdown environments.
- Flexible Configuration: Compatible with WinCC Comfort (TIA Portal) V13+ for streamlined project development.
- Large User Memory: 10 MB capacity allows for complex screens, alarms, and recipe storage.
- Comprehensive HMI Features: Supports up to 1000 messages, 32 message classes, 100 process screens, and 800 tags.
- Advanced Visualization: Includes vector graphics, bar graphs, curve diagrams (f(t)), and recipe management (50 recipes).
- Compact Installation: Panel cutout dimensions of 251 x 166 mm with a shallow 47 mm depth for space-saving mounting.
