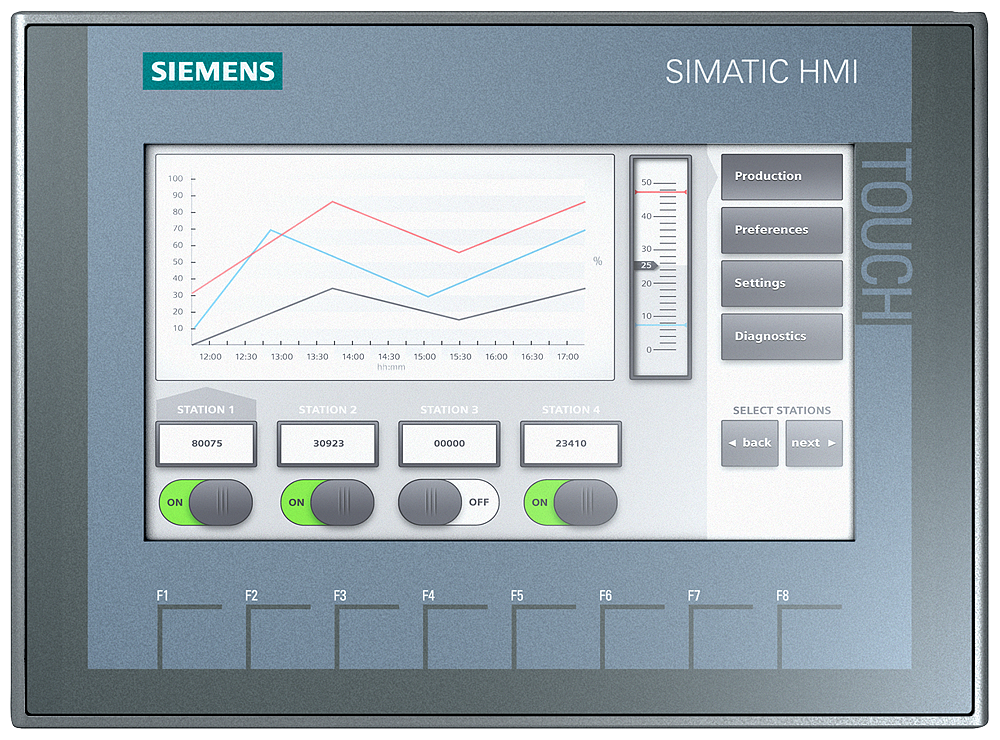

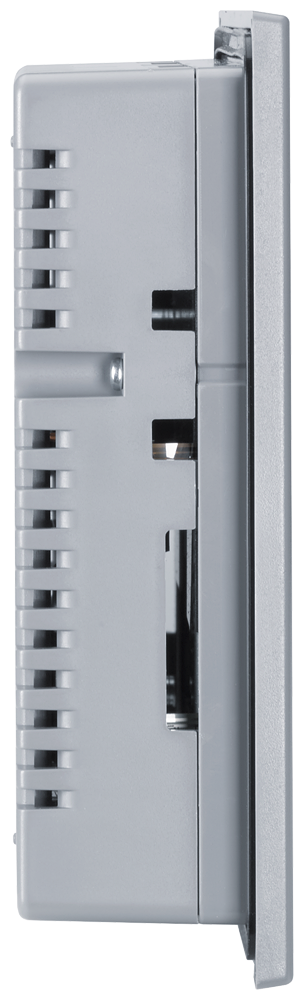

The KTP700 Basic and KTP700 Basic DP 7" (6AV2123-2GA03-0AX0) represent a versatile HMI solution tailored for lower to medium performance applications. This 7-inch widescreen touch panel, featuring a vibrant 64K color TFT display and 8 tactile function keys, offers reliable operator control and monitoring. Available in two distinct variants—one with an Ethernet interface for PROFINET and the other with an RS485 interface for PROFIBUS/MPI—the KTP700 Basic series ensures compatibility with SIMATIC S7-1200 controllers and other automation platforms. Engineered for durability with an IP65 front and IP20 rear, it delivers robust performance in challenging industrial settings.
| Technical Data |
KTP700 Basic |
KTP700 Basic DP |
| Display |
7 inch TFT, 64K colors |
7 inch TFT, 64K colors |
| Resolution |
800 x 480 px |
800 x 480 px |
| Control elements |
Touch screen / 8 Function keys |
| User memory |
10 MB |
10 MB |
| Interfaces |
1 x RJ 45 Ethernet for PROFINET
1 x USB host |
1 x RS 485 for PROFIBUS/MPI
1 x USB host |
| Degree of protection |
IP 65, NEMA 4x (front if mounted) / IP 20 rear |
| Installation cutout |
197 x 141 mm (W x H) |
197 x 141 mm (W x H) |
| Front panel |
214 x 158 mm (W x H) |
214 x 158 mm (W x H) |
| Device depth |
46 mm |
46 mm |
| Configuration software |
WinCC Basic (TIA Portal) V13 or higher |
| Messages |
1000 |
1000 |
| Message classes |
32 |
32 |
| Process screens |
100 |
100 |
| Tags |
800 |
800 |
| Vector graphics |
x |
x |
| Bar graphics |
x |
x |
| Curve diagrams |
f(t) |
f(t) |
| Recipes |
50 |
50 |
| Archiving |
x |
x |
| Article No. |
6AV2123-2GB03-0AX0 |
6AV2123-2GA03-0AX0 |
- Performance & Memory: 10 MB user memory supports up to 100 process screens, 800 tags, and 1000 messages, enabling efficient data handling.
- Visualization Capabilities: Supports vector graphics, bar graphs, curve diagrams (f(t)), and recipe management for comprehensive process visualization.

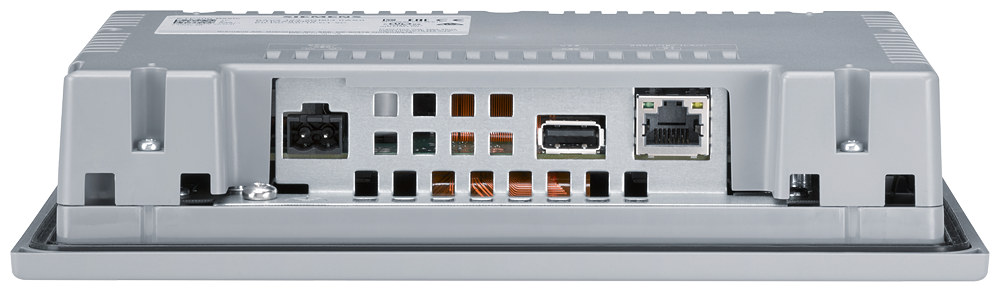

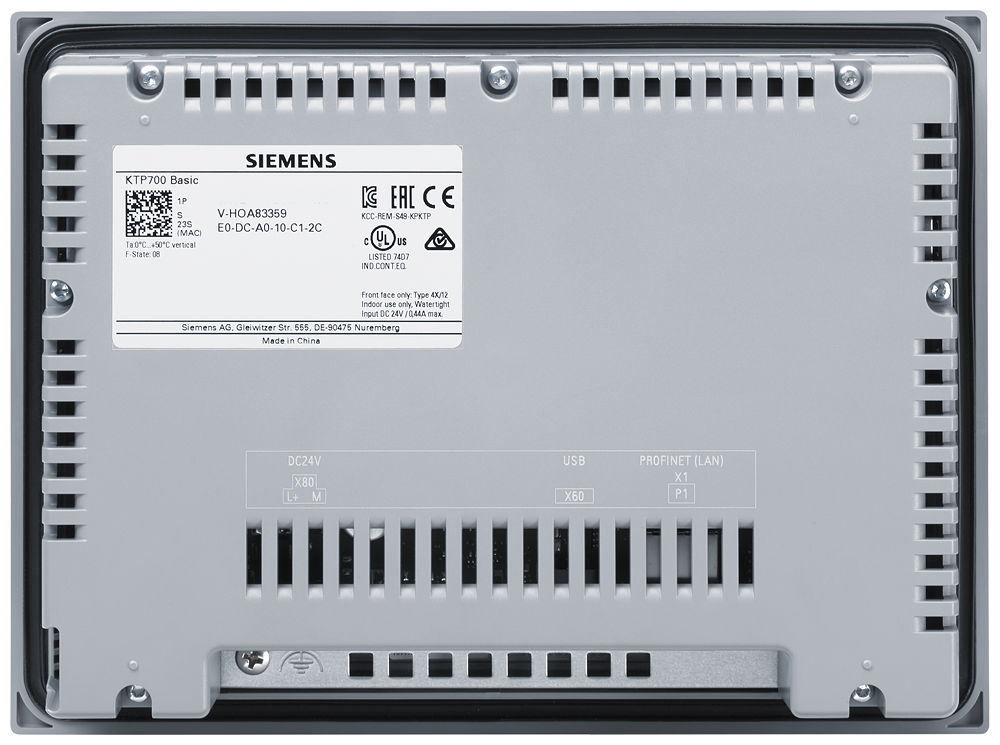

- Connectivity Options: The KTP700 Basic variant offers a single RJ45 Ethernet port for PROFINET, while the KTP700 Basic DP variant provides an RS485 interface for PROFIBUS/MPI networks, both with a USB host port for data transfer.
- Environmental Durability: Rated IP65 (front) and IP20 (rear), with NEMA 4x compliance, ensuring protection against dust and water ingress in industrial environments.
- Software Integration: Configured using WinCC Basic (TIA Portal) V13 or higher, ensuring seamless integration with SIMATIC S7-1200 and other controllers.
