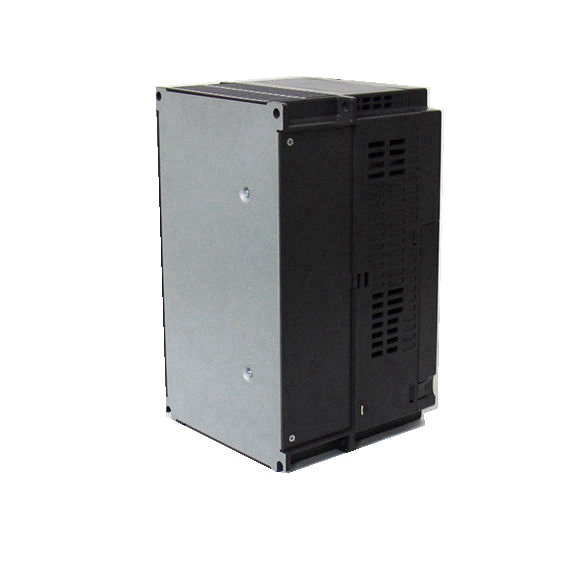

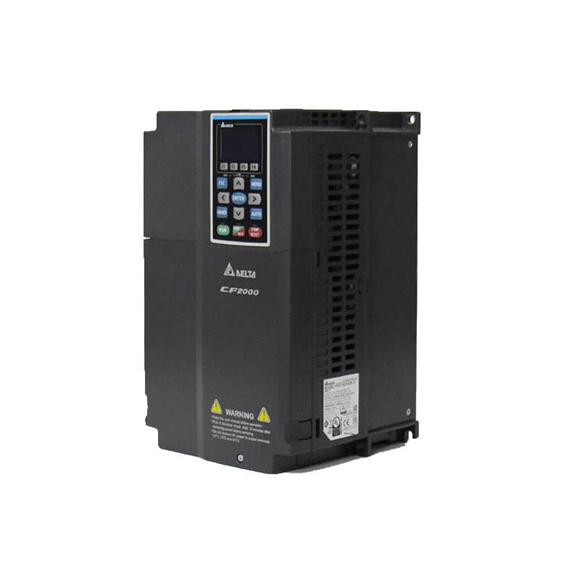

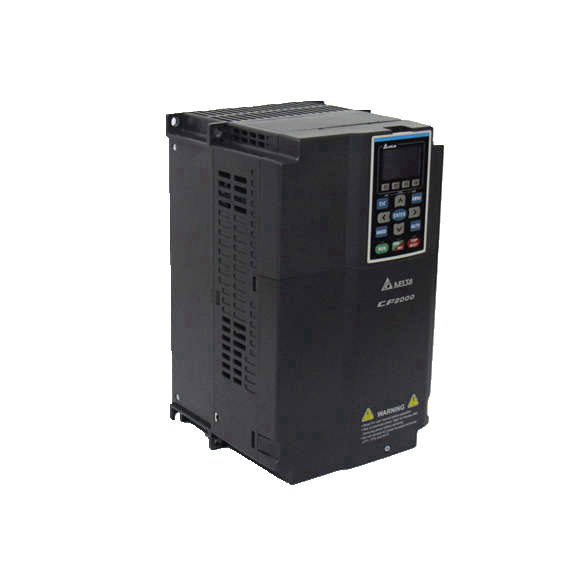

Delta VFD015CP4EB-21 Inverter

Series#: Delta

Product Details

Delta Inverters CP2000 Series 1.5kW VFD015CP4EB-21 380V – High-performance sensorless vector control drive for industrial automation.
Rated power: 1.5 kW / 2 HP, input 380-480V AC, 3-phase, 50/60 Hz.
Built-in EMI filter, dynamic braking transistor, and RS-485 Modbus communication port.
Supports V/F, sensorless vector, and torque control modes for precise motor regulation.
Compact IP20 design with detachable keypad and easy parameter copying function.
Ideal for pumps, fans, conveyors, and general machinery with overload capacity up to 150% for 60 seconds.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Delta Inverters CP2000 Series 1.5kW VFD015CP4EB-21 380V is a robust variable frequency drive engineered for demanding industrial applications. This model integrates advanced sensorless vector control to deliver high starting torque and stable speed regulation across a wide load range. With a compact footprint and built-in communication interfaces, the VFD015CP4EB-21 is ideal for retrofitting existing motor systems or integrating into new automation lines. Its rugged construction ensures reliable operation in harsh environments, while the intuitive keypad simplifies setup and monitoring. Below are the detailed technical specifications for this drive.

Parameter	Specification
Model Number	VFD015CP4EB-21
Series	CP2000
Rated Output Power	1.5 kW (2 HP)
Rated Input Voltage	380-480 V AC, 3-Phase
Input Frequency	50/60 Hz ±5%
Rated Output Current	3.8 A
Output Frequency Range	0.00 to 600.00 Hz
Control Method	V/F, Sensorless Vector, Torque Control
Starting Torque	150% at 0.5 Hz (Sensorless Vector)
Overload Capacity	150% for 60 seconds, 200% for 3 seconds
Carrier Frequency	2 to 15 kHz (Adjustable)
Analog Inputs	2 (0-10V / 4-20 mA selectable)
Analog Outputs	1 (0-10V / 4-20 mA)
Digital Inputs	6 (Programmable, 24V DC)
Digital Outputs	2 (Relay + Open Collector)
Communication Port	RS-485 Modbus RTU (Standard)
Built-in Braking Transistor	Yes (Standard Models)
Built-in EMC Filter	Yes (Class A, Internal)
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overheat, Phase Loss, Ground Fault
Enclosure Rating	IP20
Ambient Temperature	-10°C to +50°C (Derating above 40°C)
Cooling Method	Forced Air (Internal Fan)
Keypad Type	Detachable with LED Display (4-digit)
Dimensions (W x H x D)	Approx. 85 mm x 200 mm x 150 mm
Weight	Approx. 1.2 kg
Compliance	CE, UL, RoHS
