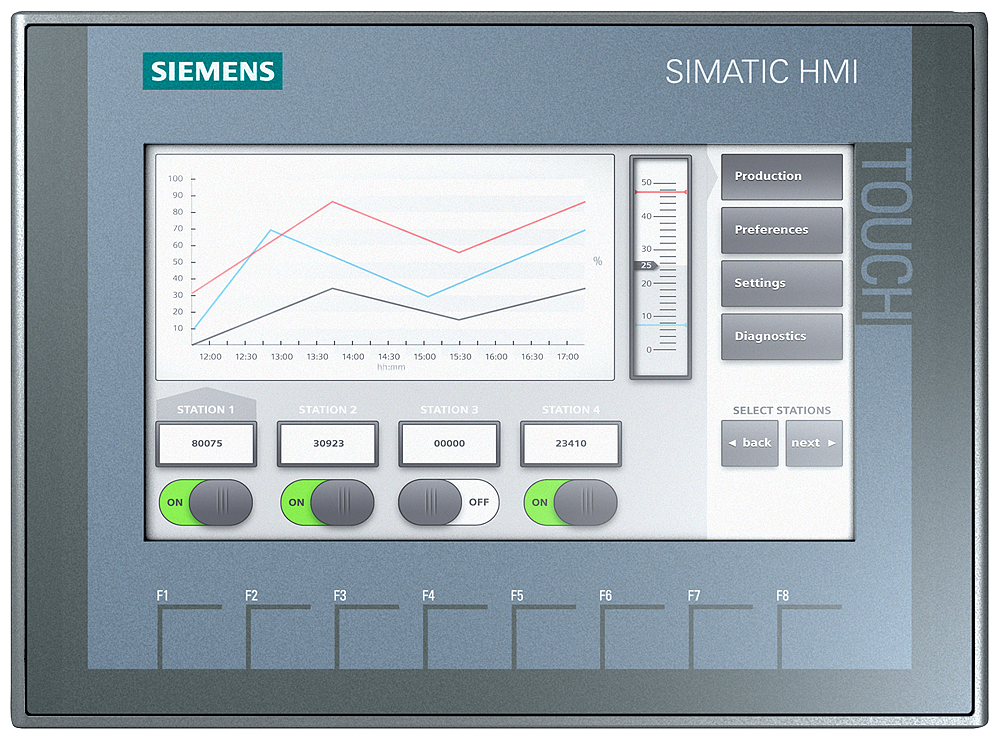

The KTP700 Basic 7 inch HMI 6AV2123-2GB03-0AX0 is a robust operator panel designed for efficient human-machine interface tasks in industrial settings. Featuring a 7-inch widescreen TFT color display with 64K colors and 800 x 480 px resolution, it offers clear visualization of process data. With 8 function keys and a touch screen, it provides flexible control in lower to medium performance applications, particularly with SIMATIC S7-1200 controllers or other automation systems. This Ethernet-based variant (PROFINET) ensures seamless integration, while the USB host enables data logging or firmware updates. Built for durability, it boasts IP65 front protection (NEMA 4x) and IP20 rear, and supports up to 1000 messages, 100 process screens, and 800 tags for comprehensive monitoring.
| Technical Data |
KTP700 Basic |
| Display |
7 inch TFT, 64K colors |
| Resolution |
800 x 480 px |
| Control elements |
Touch screen / 8 Function keys |
| User memory |
10 MB |
| Interfaces |

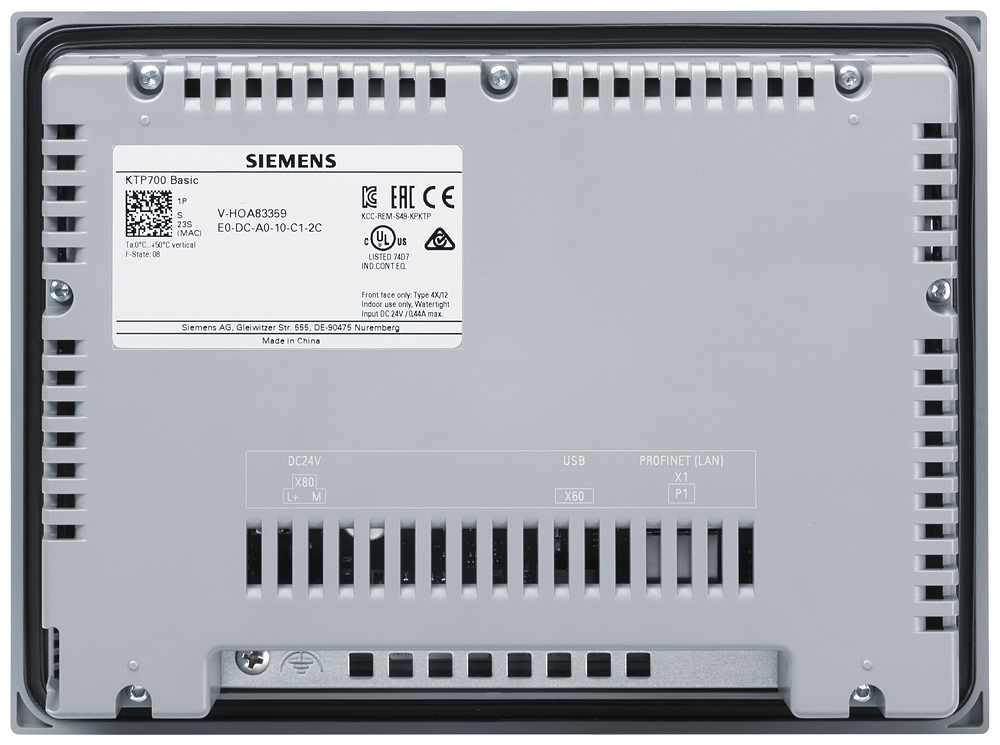

1 x RJ 45 Ethernet for PROFINET, 1 x USB host |
| Degree of protection |
IP 65, NEMA 4x (front if mounted) / IP 20 rear |
| Installation cutout |
197 x 141 mm (W x H) |
| Front panel |
214 x 158 mm (W x H) |
| Device depth |

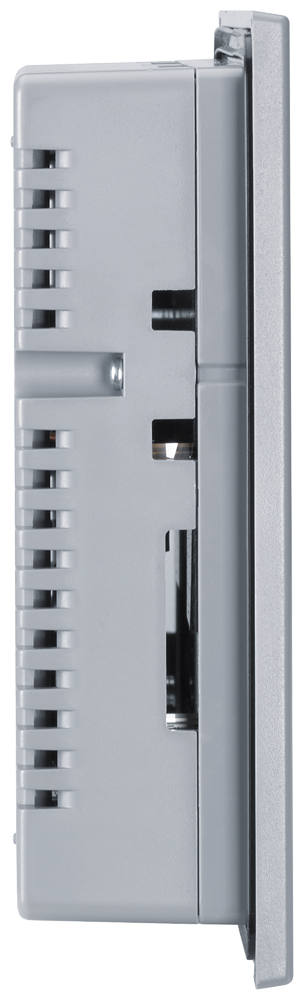

46 mm |
| Configuration software |
WinCC Basic (TIA Portal) V13 or higher |
| Messages |
1000 |
| Message classes |
32 |
| Process screens |
100 |
| Tags |
800 |
| Vector graphics |
x |
| Bar graphics |
x |
| Curve diagrams |
f(t) |
| Recipes |
50 |
| Archiving |
x |
| Article No. |
6AV2123-2GB03-0AX0 |
- Ethernet Connectivity: 1 x RJ45 for PROFINET ensures high-speed data exchange with controllers.
- USB Host Port: Enables external storage for data logging, firmware updates, or project backups.
- High-Durability Front: IP65/NEMA 4x protection resists dust and water jets, ideal for factory floors.
- Software Compatibility: Configurable with WinCC Basic (TIA Portal) V13 or later for easy project engineering.
- Advanced Visualization: Supports vector graphics, bar graphs, curve diagrams, and archiving for detailed process analysis.
- Scalable Memory: 10 MB user memory and support for 800 tags allow handling of complex applications.
