Siemens 6AV2123-2DB03-0AX0 KTP400 Basic HMI

Series#: Siemens

Product Details

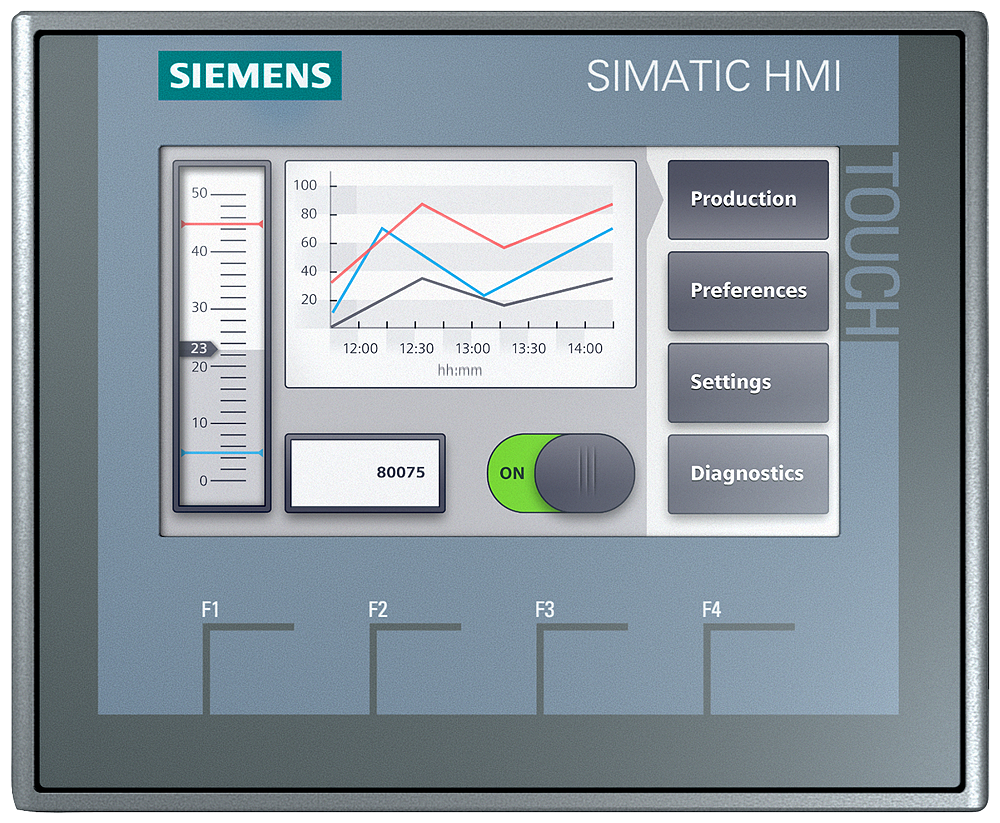

KTP400 Basic 4.3 inch (6AV2123-2DB03-0AX0) – Compact HMI panel for limited-complexity automation tasks.
4.3-inch widescreen TFT display with 64K colors, 480 x 272 px resolution, and intuitive touchscreen + 4 function keys.
Designed for PROFINET networks, ideal for space-constrained machine-side applications with SIMATIC S7-1200 or other controllers.
Robust IP65 front (NEMA 4X) and IP20 rear protection for harsh industrial environments.
Easy configuration via WinCC Basic (TIA Portal) V13 or higher, with 10 MB user memory and 800 tags.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The KTP400 Basic 4.3 inch (6AV2123-2DB03-0AX0) is a reliable, entry-level HMI panel engineered for straightforward operator control and monitoring. Its compact 4.3-inch widescreen design fits seamlessly into tight machine spaces, delivering a vivid color TFT display with 64K colors and crisp 480 x 272 px resolution. Equipped with a responsive touchscreen and four dedicated function keys, this panel streamlines user interaction in PROFINET-based automation systems, pairing perfectly with SIMATIC S7-1200 controllers and third-party devices. Built for durability, it features an IP65-rated front and IP20 rear, ensuring dependable performance in demanding factory settings.

Technical Data	KTP400 Basic (6AV2123-2DB03-0AX0)
Display	4.3 inch TFT, 64K colors
Resolution	480 x 272 px
Control Elements	Touchscreen / 4 Function keys
User Memory	10 MB
Interfaces	1 x RJ45 Ethernet for PROFINET / 1 x USB host
Degree of Protection	IP65, NEMA 4X (front if mounted) / IP20 rear
Installation Cutout	123 x 99 mm (W x H)
Front Panel	141 x 116 mm (W x H)
Device Depth	43 mm
Configuration Software	WinCC Basic (TIA Portal) V13 or higher
Messages	1000
Message Classes	32
Process Screens	100
Tags	800
Vector Graphics	Supported
Bar Graphics	Supported
Curve Diagrams	f(t)
Recipes	50
Archiving	Supported

Hardware Robustness: IP65 front (NEMA 4X) and IP20 rear ensure resistance to dust, water jets, and industrial contaminants.
Connectivity: Single RJ45 Ethernet port supports PROFINET for seamless integration with SIMATIC controllers; USB host enables data exchange and firmware updates.
Display & Interaction: 4.3-inch widescreen with 64K colors and 480 x 272 px resolution; touchscreen plus 4 function keys for flexible input.
Software Capabilities: Configured via WinCC Basic (TIA Portal) V13 or higher – supports up to 1000 messages, 800 tags, 50 recipes, and archiving.
Mounting & Dimensions: Compact cutout (123 x 99 mm) and low depth (43 mm) suit space-limited panels; front panel measures 141 x 116 mm.
