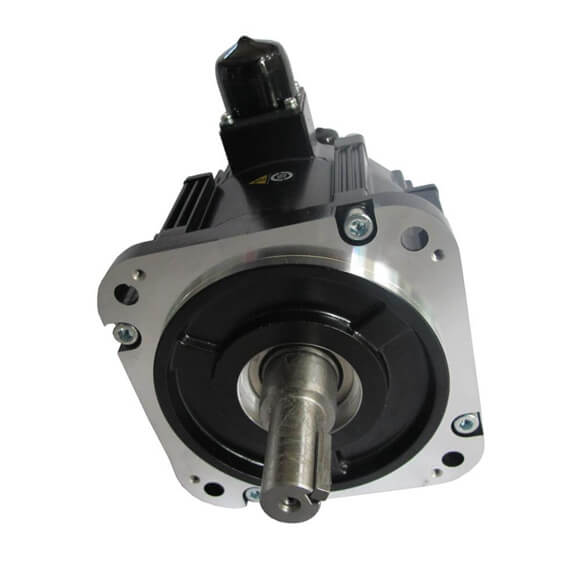

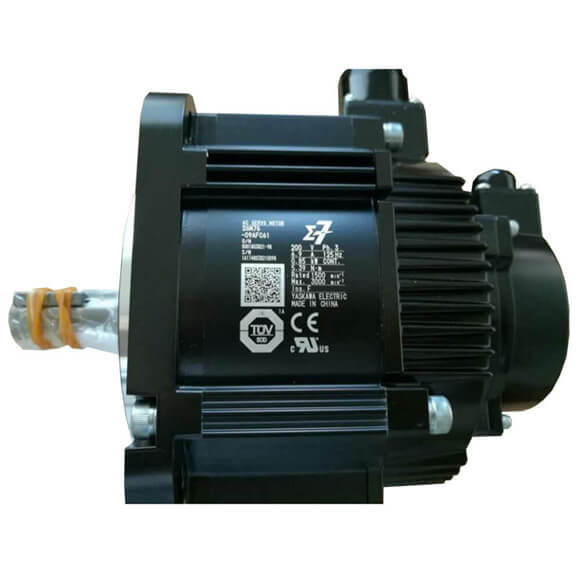

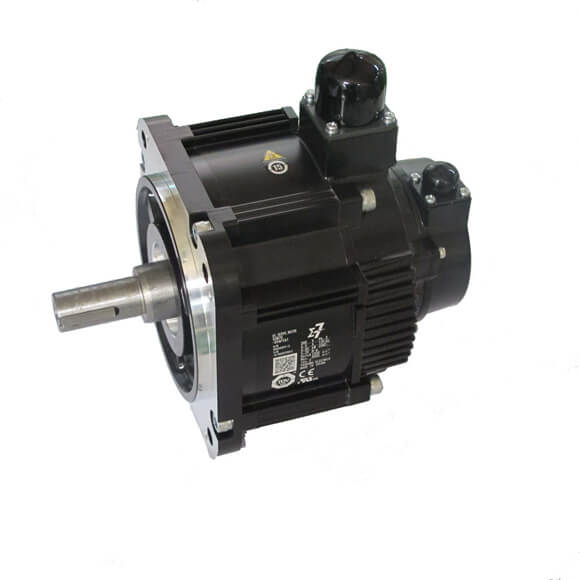

The Yaskawa SGM7G-44AFC6C is a robust 4.4 kW AC servo motor from the Σ-7 series, engineered for high-torque, high-precision applications such as CNC machinery, robotics, and packaging equipment. Featuring a built-in 24V DC brake and a rugged IP67 enclosure, this motor delivers reliable performance in demanding environments. Its 20-bit high-resolution encoder ensures exceptional feedback accuracy, while the rated torque of 28.4 N·m and peak torque of 80.0 N·m provide ample power for acceleration and deceleration. Designed for seamless integration with Yaskawa SGD7S drives, the SGM7G-44AFC6C supports advanced vibration suppression and auto-tuning for optimized motion control. Below is a detailed specification table for this model.
| Parameter |
Specification |
| Model |
YASKAWA SGM7G-44AFC6C |
| Motor Type |
AC Servo Motor with Brake |
| Rated Power |
4.4 kW |
| Rated Torque |
28.4 N·m |
| Peak Torque |
80.0 N·m |
| Rated Speed |
1500 min⁻¹ |
| Maximum Speed |
3000 min⁻¹ |
| Power Supply |
3-Phase AC 200-230V |
| Brake Type |
24V DC Holding Brake (Spring-Applied, Power-Release) |
| Brake Torque |
30 N·m (minimum) |
| Encoder Type |
20-bit Incremental (Absolute optional, check variant) |
| Encoder Resolution |
1,048,576 pulses/rev |
| Protection Class |
IP67 (Shaft end: IP65) |
| Insulation Class |
Class F (155°C) |
| Vibration Class |
V15 (max 15 µm p-p) |
| Mounting Type |
Flange Mount (IEC 72-1) |
| Shaft Type |
Straight Shaft with Keyway (Optional: with Oil Seal) |
| Ambient Temperature |
0 to 40°C (Storage: -20 to 80°C) |
| Ambient Humidity |
20% to 80% RH (Non-condensing) |
| Weight |
Approx. 13.5 kg |
| Compatible Drive |
Yaskawa SGD7S Series (e.g., SGD7S-120A00A) |
| Communication Protocol |
MECHATROLINK-III (Standard), Optional: Analog/Pulse |
| Standard Features |
Auto-Tuning, Vibration Suppression, Electronic Gear |
