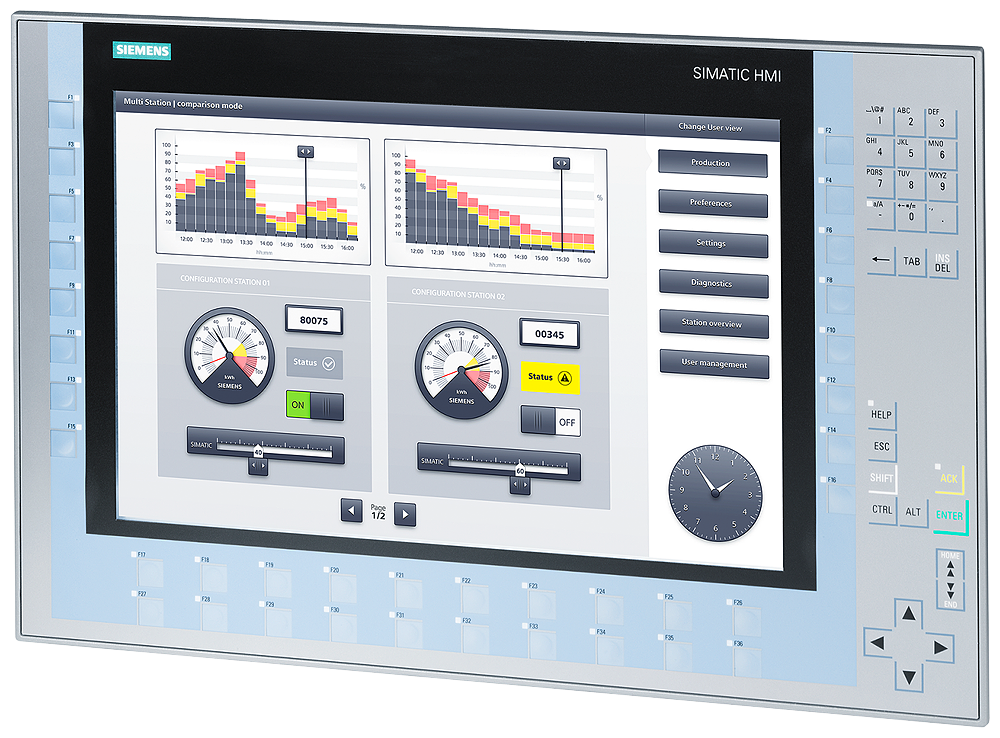

The KP1500 and TP1500 Comfort panels, including model 6AV2124-1QC02-0AX0, represent a significant upgrade in the Siemens Comfort series, delivering a 15.4-inch TFT widescreen display with 16 million colors and a resolution of 1280 x 800 pixels. Designed as the mounting-compatible successor to the MP 377 12-inch series, these units provide 51% additional display area, enhanced performance, and advanced connectivity. The KP1500 variant features a durable membrane keypad with 28 keys and 36 function keys with LEDs, while the TP1500 offers a responsive touch screen interface. Both are engineered for demanding automation applications requiring high-end visualization and control.
| Technical Data |
TP1500 Comfort |
KP1500 Comfort |
| Display |
15.4 inch TFT widescreen display, 16 Mio colors |
| Resolution |
1280 x 800 px |
| Control elements |
Touch screen |
Membrane Keypad (28 keys), 36 function keys with LED |
| User memory |
24 MB |
| Interfaces |
2 x RJ45 for PROFINET (with integrated switch), 1 x RJ45 Ethernet (gigabit capable), 1 x RS485/422 for PROFIBUS/MPI, 2 x USB-host, 1 x USB-device, 2 x SD card slot |
| Degree of protection |
IP65, NEMA 4x (front if mounted) / IP20 rear |
| Installation cutout |
396 x 291 mm (W x H) |
450 x 291 mm (W x H) |
| Front panel |
415 x 310 mm (W x H) |
483 x 310 mm (W x H) |
| Device depth |
75 mm |
75 mm |
| Configuration software |
WinCC Comfort (TIA Portal) or higher |
| Messages |
6000 |
| Message classes |
32 |
| Process pictures |
750 |
| Variables |
4096 |
| Vector graphics |
x |
| Bar graphics |
x |
| Curve diagrams |
f(t), f(x) |
| Recipes |
500 |
| Archiving |
200 |
| Visual Basic Scripts |
200 |
| Article No. |
6AV2124-0QC02-0AX0 |
6AV2124-1QC02-0AX0 |
- Display & Resolution: 15.4-inch widescreen TFT with 16 million colors and 1280 x 800 pixel resolution for crisp, detailed visuals.
- Connectivity: Dual PROFINET ports with integrated switch, gigabit Ethernet, PROFIBUS/MPI, plus USB and SD card slots for flexible integration.
- User Memory: 24 MB of onboard memory supports complex applications with up to 6000 messages and 4096 variables.
- HMI Software: Configured via WinCC Comfort in TIA Portal, supporting vector graphics, bar graphs, curve diagrams, and Visual Basic scripting.
- Durability: IP65/NEMA 4x front protection ensures reliable operation in dusty, wet, or washdown environments.
- Installation Flexibility: Compact 75 mm depth with mounting cutout options for either touch or keypad variants.
