Siemens 6AV2124-0QC02-0AX0 KP1500 Comfort HMI

Series#: Siemens

Product Details

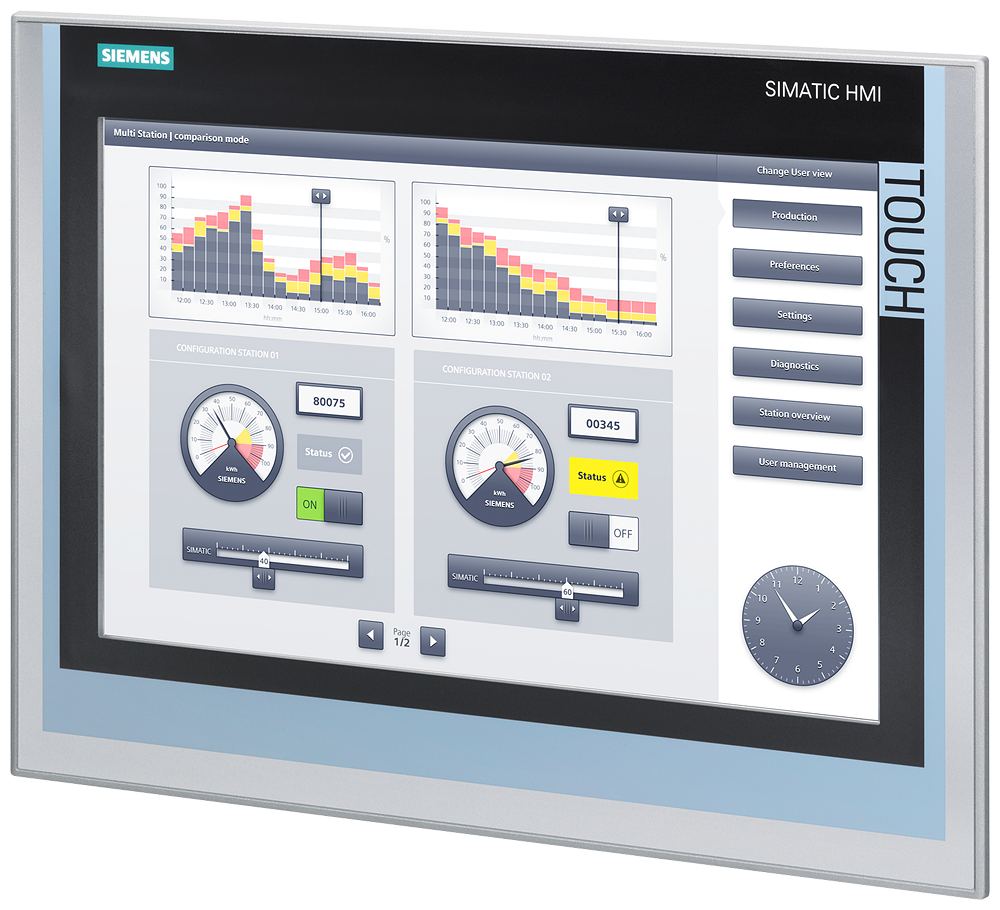

Model KP1500 & TP1500 Comfort 15.4" HMI 6AV2124-0QC02-0AX0 – High-performance industrial HMI for demanding automation tasks.
15.4-inch TFT widescreen display with 1280 x 800 px resolution and 16 million colors for crisp, detailed visuals.
KP1500 features 28 membrane keys + 36 function keys with LEDs; TP1500 offers full touchscreen operation.
Mounting-compatible successor to MP 377 12-inch series, offering 51% more display space and higher performance.
Integrated PROFINET switch, gigabit Ethernet, PROFIBUS/MPI, USB, and SD card slots for versatile connectivity.
IP65/NEMA 4X front protection, ideal for harsh industrial environments.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The KP1500 and TP1500 Comfort 15.4" HMI 6AV2124-0QC02-0AX0 represent the pinnacle of Siemens Comfort Panel technology, engineered for high-end human-machine interface applications where PC-like screen resolution and robust control are essential. As the direct mounting-compatible successors to the MP 377 12-inch series, these panels deliver a 51% increase in display area, superior resolution, and enhanced processing power, making them ideal for complex process visualization, machine control, and data-intensive tasks in industries such as automotive, pharmaceuticals, and food & beverage.

Technical Data	TP1500 Comfort	KP1500 Comfort
Display	15.4 inch TFT widescreen display, 16 Mio colors
Resolution	1280 x 800 px
Control elements	Touch screen	Membrane Keypad (28 keys), 36 function keys with LED
User memory	24 MB
Interfaces	2 x RJ 45 for PROFINET (with integrated switch) 1 x RJ 45 Ethernet for PROFINET (gigabit capable) 1 x RS 485/422 for PROFIBUS/MPI 2 x USB-host, 1 x USB-device 2 x SD card slot
Degree of protection	IP 65, NEMA 4x (front if mounted) / IP 20 rear
Installation cutout	396 x 291 mm (W x H)	450 x 291 mm (W x H)
Front panel	415 x 310 mm (W x H)	483 x 310 mm (W x H)
Device depth	75 mm	75 mm
Configuration software	WinCC Comfort (TIA Portal) or higher
Messages	6000
Message classes	32
Process pictures	750
Variables	4096
Vector graphics	x
Bar graphics	x
Curve diagrams	f (t), f (x)
Recipes	500
Archiving	200
Visual Basic Scripts	200
Article No.	6AV2124-0QC02-0AX0	6AV2124-1QC02-0AX0

High-Performance Hardware: 24 MB user memory and a 15.4-inch widescreen TFT with 1280 x 800 px resolution ensure smooth, high-fidelity HMI operations.
Advanced Connectivity: Dual PROFINET ports with integrated switch, gigabit Ethernet, and PROFIBUS/MPI interface enable seamless integration into multi-protocol networks.
Robust Data Handling: Supports up to 6000 messages, 4096 variables, 750 process pictures, and 500 recipes for comprehensive process control and data logging.
Scalable Software Environment: Configurable via WinCC Comfort (TIA Portal) with support for Visual Basic Scripts, curve diagrams, and archiving for custom automation logic.
Industrial Durability: IP65/NEMA 4X front protection and a compact 75 mm depth make it suitable for panel-mount installations in washdown or dusty environments.
