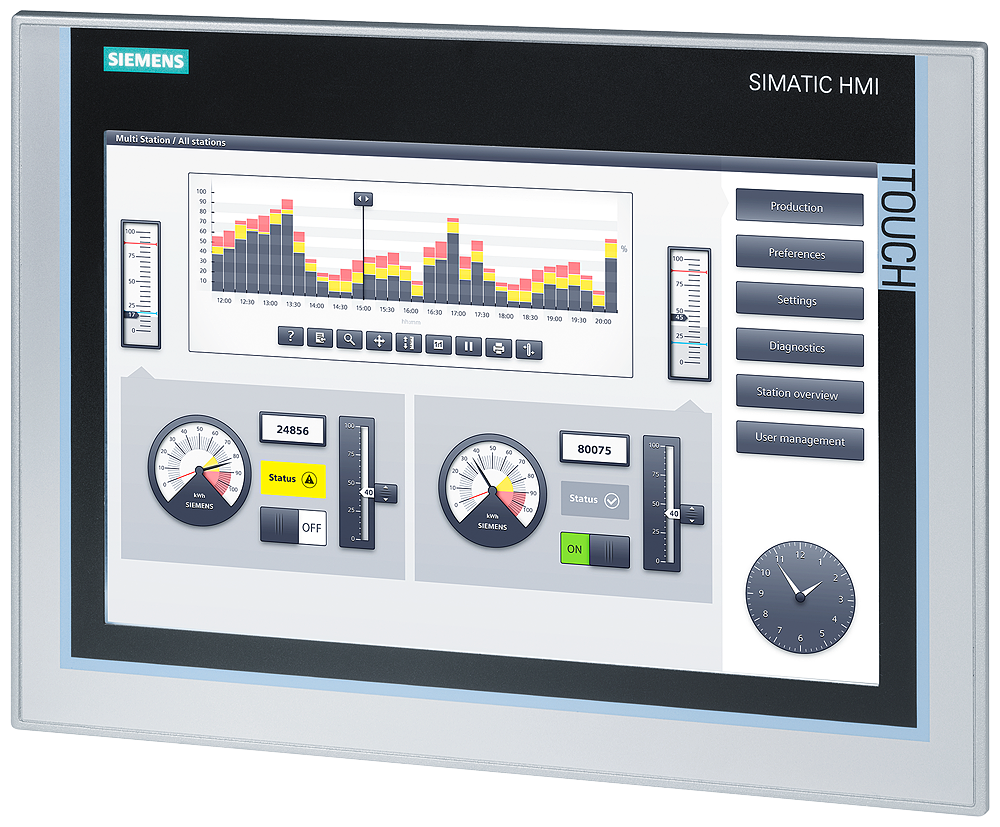

The KP1200 and TP1200 Comfort 12 inch HMI series, specifically model 6AV2124-0MC01-0AX0, represents a significant leap in industrial automation control. These panels are the direct successors to the MP 277 10 inch series, offering a generous 12.1-inch widescreen TFT display with 16 million colors and a crisp 1280 x 800 pixel resolution. Whether you require the tactile feedback of mechanical keys (KP1200) or the intuitive touch interface (TP1200), both variants deliver robust performance for demanding HMI applications. Engineered for seamless integration, they support PROFINET, PROFIBUS, and MPI protocols, ensuring compatibility with modern and legacy systems.
| Technical Data |
TP1200 Comfort |
KP1200 Comfort |
| Display |
12.1 inch TFT widescreen display, 16 Mio colors |
| Resolution |
1280 x 800 px |
| Control elements |
Touch screen |
Membrane Keypad (28 keys), 34 function keys with LED |
| User memory |
12 MB |
| Interfaces |
2 x RJ 45 Ethernet for PROFINET, 1 x RS 485/422 for PROFIBUS/MPI, 2 x USB-host, 1 x USB-device, 2 x SD card slot |
| Degree of protection |
IP 65, NEMA 4x (front if mounted) / IP 20 rear |
| Installation cutout |
310 x 221 mm (W x H) |
434 x 268 mm (W x H) |
| Front panel |
330 x 241 mm (W x H) |
454 x 289 mm (W x H) |
| Device depth |
63 mm |
63 mm |
| Software functions |
- |
| Configuration software |
WinCC Comfort (TIA Portal) or higher |
| Messages |
4000 |
| Message classes |
32 |
| Process pictures |
500 |
| Variables |
2048 |
| Vector graphics |
Supported |
| Bar graphics |
Supported |
| Curve diagrams |
f (t), f (x) |
| Recipes |
300 |
| Archiving |
50 |
| Visual Basic Scripts |
100 |
| Article No. |
6AV2124-0MC01-0AX0 |
6AV2124-1MC01-0AX0 |
- High-Performance Processor: Equipped with a powerful ARM Cortex A8 processor for fast screen transitions and complex data handling.
- Enhanced Connectivity: Dual Ethernet ports enable PROFINET IO controller or device functionality, while the RS 485/422 interface supports PROFIBUS DP up to 12 Mbps.
- Robust Data Management: 12 MB user memory supports extensive recipe management (300 recipes), archiving (50 archives), and up to 2048 process variables.
- Flexible Expansion: Two USB host ports for connecting peripherals (mouse, keyboard, printer) and two SD card slots for data logging or firmware updates.
- Industrial-Grade Durability: IP65 front protection ensures resistance to dust and water jets, rated NEMA 4x for washdown environments.
- Advanced Visualization: Supports vector graphics, bar graphs, and multi-curve diagrams (f(t) and f(x)) for real-time process monitoring.
