Delta Servo Motor and Drive Set ECMA-F11830RS+ASD-B2-3023-B

Delta Servo Motor and Drive Set ECMA-F11830RS+ASD-B2-3023-B

Series#: Delta

Product Details

High-performance DELTA SERVO MOTOR AND DRIVE SET ECMA-F11830RS+ASD-B2-3023-B, engineered for precision motion control in industrial automation.
Rated at 3.0 kW output power, delivering robust torque and speed for CNC machinery, robotics, and packaging systems.

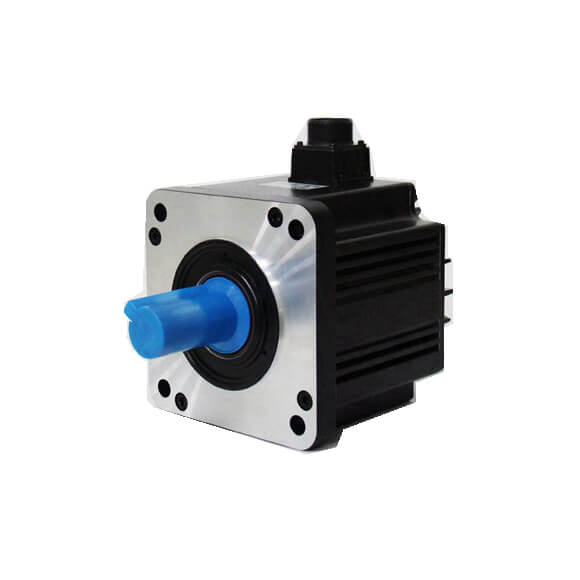

Integrated ECMA-F11830RS motor with 2500 PPR incremental encoder for high-resolution feedback and smooth operation.

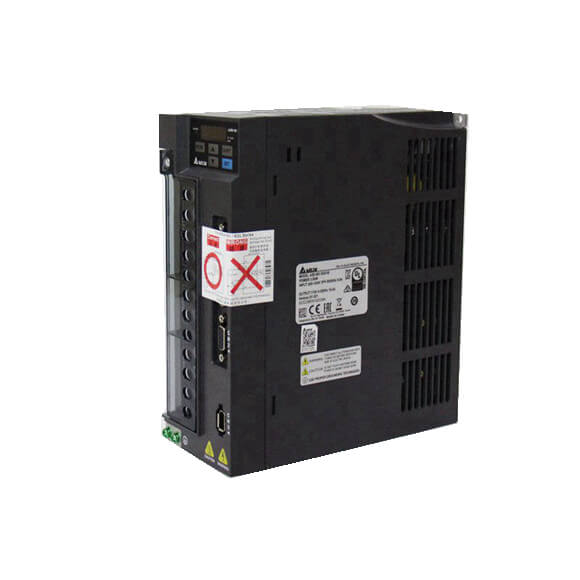

ASD-B2-3023-B drive features advanced auto-tuning and over-current protection, ensuring stable performance under load.
Supports multiple control modes: position, speed, and torque, offering flexibility for complex automation tasks.
Compact footprint and IP65-rated motor enclosure for reliable operation in harsh industrial environments.
100% Genuine and New, rigorously inspected before international dispatch.

WhatsApp Inquiry

Specification

Datasheet (PDF)

The DELTA SERVO MOTOR AND DRIVE SET ECMA-F11830RS+ASD-B2-3023-B represents a cutting-edge solution for high-precision motion control, combining a robust 3.0 kW servo motor with a versatile drive unit. This set is specifically designed for applications requiring rapid acceleration, high torque density, and minimal settling time, such as in pick-and-place systems, injection molding machines, and automated assembly lines. The ECMA-F11830RS motor, paired with the ASD-B2-3023-B drive, delivers exceptional performance through a 2500 PPR encoder and advanced digital signal processing, ensuring accurate position tracking and smooth velocity regulation. With a wide input voltage range and comprehensive protection features, this drive set is ideal for both retrofit projects and new system designs, providing reliable operation even in electrically noisy environments.

Parameter	Specification (ECMA-F11830RS + ASD-B2-3023-B)
Motor Model	ECMA-F11830RS
Drive Model	ASD-B2-3023-B
Rated Power	3.0 kW
Rated Torque	9.55 Nm
Maximum Torque	28.65 Nm (300% overload capacity)
Rated Speed	3000 RPM
Maximum Speed	5000 RPM
Encoder Type	Incremental, 2500 PPR (10000 ppr after 4x multiplication)
Input Voltage (Drive)	3-phase, 200-230 VAC, 50/60 Hz
Input Current (Drive)	15.0 A (RMS)
Control Modes	Position, Speed, Torque
Position Control Input	Pulse train (Line driver/Open collector, up to 500 kHz)
Speed Control Input	Analog ±10 VDC, or digital via RS-485
Torque Control Input	Analog ±10 VDC
Protection Features	Over-current, Over-voltage, Under-voltage, Overload, Overheat, Encoder fault
Motor Feedback	Standard 2500 PPR incremental encoder (5-wire differential)
Communication Interface	RS-485 (Modbus RTU), Pulse train, Analog I/O
Operating Temperature	0°C to 55°C (motor), 0°C to 50°C (drive)
Storage Temperature	-20°C to 80°C
Motor Ingress Protection	IP65 (shaft seal and connectors)
Motor Shaft	Keyed, with oil seal
Motor Weight	Approx. 7.5 kg
Drive Weight	Approx. 1.8 kg
Dimensions (Motor)	Flange 130 mm x 130 mm, shaft Ø 22 mm, length 210 mm
Dimensions (Drive)	185 mm (H) x 75 mm (W) x 160 mm (D)
Certifications	CE, UL, RoHS
