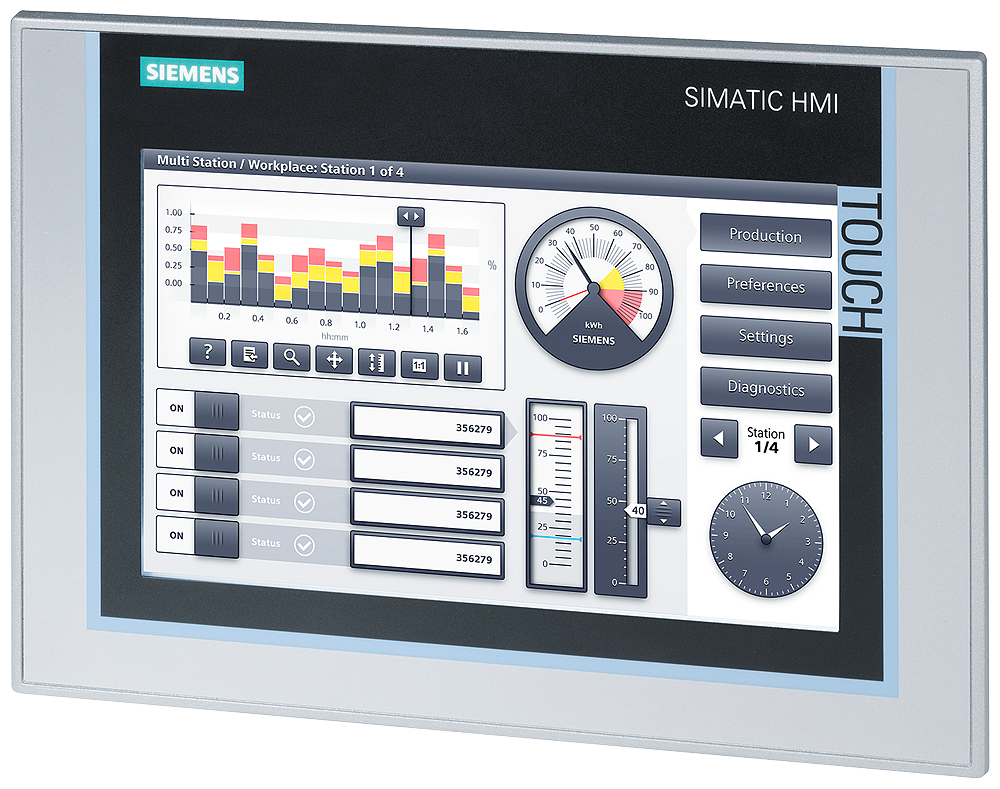

The KP900 and TP900 Comfort 9-inch HMI series, represented by the 6AV2124-0JC01-0AX0 for the touch variant, delivers cutting-edge performance for demanding HMI applications. These panels offer a superior 16 million color TFT widescreen display, ensuring exceptional clarity and responsiveness. The KP900 is engineered for environments requiring robust mechanical keys, while the TP900 provides a sleek touch interface. As the mounting-compatible successors to the MP 277 8-inch panels, they provide 32% more display area and enhanced resolution, making them ideal for modernizing legacy systems. With extensive connectivity and a 12 MB user memory, they excel in complex automation tasks.
| Technical Data |

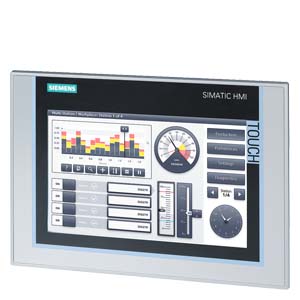

TP900 Comfort (6AV2124-0JC01-0AX0) |

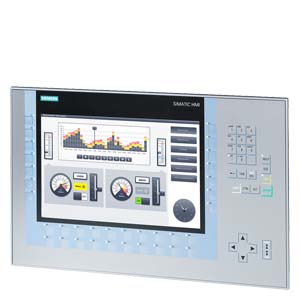

KP900 Comfort |
| Display |
9.0 inch TFT widescreen display, 16 Mio colors |
| Resolution |
800 x 480 px |
| Control elements |
Touch screen |
Membrane Keypad (28 keys), 26 function keys with LED |
| User memory |
12 MB |
| Interfaces |
2 x RJ 45 Ethernet for PROFINET, 1 x RS 485/422 for PROFIBUS/MPI, 2 x USB-host, 1 x USB-device, 2 x SD card slot |
| Degree of protection |
IP 65, NEMA 4x (front if mounted) / IP 20 rear |
| Installation cutout |
250 x 166 mm (W x H) |
338 x 206 mm (W x H) |
| Front panel |
274 x 190 mm (W x H) |
362 x 230 mm (W x H) |
| Device depth |
63 mm |
63 mm |
| Configuration software |
WinCC Comfort (TIA Portal) or higher |
| Messages |
4000 |
| Message classes |
32 |
| Process pictures |
500 |
| Variables |
2048 |
| Vector graphics |
x |
| Bar graphics |
x |
| Curve diagrams |
f (t), f (x) |
| Recipes |
300 |
| Archiving |
50 |
| Visual Basic Scripts |
100 |
| Article No. |
6AV2124-0JC01-0AX0 |
6AV2124-1JC01-0AX0 |
- Display Technology: 9-inch TFT widescreen with 16 million colors ensures vibrant, high-contrast graphics for process visualization.
- Processor & Memory: 12 MB user memory supports complex projects with up to 500 process pictures and 2048 variables.
- Connectivity: Dual PROFINET ports enable seamless integration into industrial networks; PROFIBUS/MPI supports legacy systems.
- Data Management: Supports 300 recipes, 50 archiving functions, and 100 Visual Basic Scripts for advanced automation logic.
- Durability: IP65 front protection ensures operation in harsh environments; NEMA 4X rated for washdown applications.
- Software Compatibility: Fully configurable with WinCC Comfort (TIA Portal) for streamlined engineering and diagnostics.
