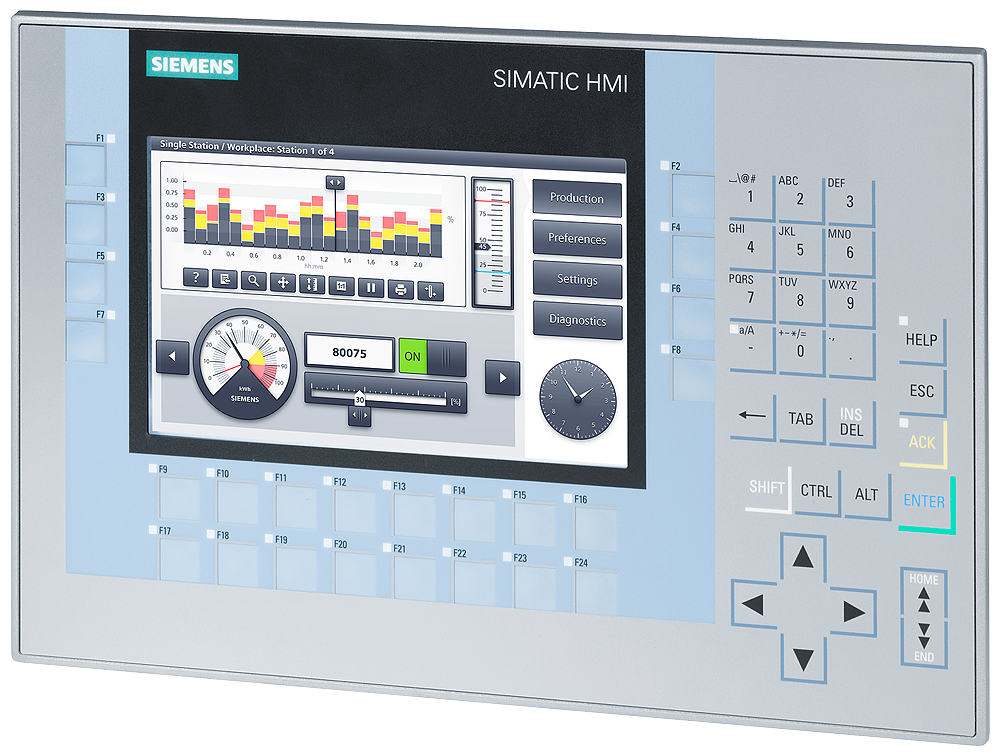

The Siemens KP700 and TP700 Comfort 7 inch HMI, with part number 6AV2124-1GC01-0AX0, represents a significant leap in industrial human-machine interface technology, delivering high-end performance for applications requiring either mechanical key input or pure touch operation. This 7-inch TFT widescreen panel offers 16 million colors and a sharp 800 x 480 px resolution, providing 40% more display space and over twice the screen resolution of its predecessors like the OP 277 and TP 177B. Designed for seamless integration into modern automation architectures, it features dual RJ45 Ethernet ports with an integrated PROFINET switch, a PROFIBUS/MPI interface, and extensive expansion options via USB and SD slots. With a user memory of 12 MB, it supports up to 4000 messages, 500 process pictures, and 2048 variables, all configurable through WinCC Comfort (TIA Portal). The front panel achieves IP65/NEMA 4X protection, making it suitable for harsh industrial environments. Below are the detailed technical specifications.
| Technical Data |
TP700 Comfort |
KP700 Comfort |
| Hardware |
- |
| Display |
7.0 inch TFT widescreen display, 16 Mio colors |
| Resolution |
800 x 480 px |
| Control elements |
Touch screen |
Membrane Keypad (28 keys), 24 function keys with LED |
| User memory |
12 MB |
| Interfaces |
2 x RJ 45 Ethernet for PROFINET (with integrated switch), 1 x RS 485/422 for PROFIBUS/MPI, 2 x USB-host, 1 x USB-device, 2 x SD card slot |
| Degree of protection |
IP 65, NEMA 4x (front if mounted) / IP 20 rear |
| Installation cutout |
197 x 141 mm (W x H) |
280 x 176 mm (W x H) |
| Front panel |
214 x 158 mm (W x H) |
308 x 204 mm (W x H) |
| Device depth |
63 mm |
69 mm |
| Software functions |
- |
| Configuration software |
WinCC Comfort (TIA Portal) or higher |
| Messages |
4000 |
| Message classes |
32 |
| Process pictures |
500 |
| Variables |
2048 |
| Vector graphics |
x |
| Bar graphics |
x |
| Curve diagrams |
f (t), f (x) |
| Recipes |
300 |
| Archiving |
50 |
| Visual Basic Scripts |
100 |
| Article No. |
6AV2124-0GC01-0AX0 |
6AV2124-1GC01-0AX0 |
- Display & Resolution: 7.0-inch TFT widescreen with 16 million colors and 800 x 480 px resolution, delivering crisp visuals and enhanced readability.
- Control Flexibility: TP700 offers pure touch operation; KP700 features a 28-key membrane keypad with 24 LED-backlit function keys for tactile feedback in noisy or gloved environments.
- Connectivity Suite: Dual RJ45 Ethernet with integrated PROFINET switch, RS485/422 for PROFIBUS/MPI, dual USB host, one USB device, and two SD card slots for extensive peripheral and network integration.
- Environmental Protection: IP65/NEMA 4X front protection (when mounted) and IP20 rear, ensuring durability in washdown and dusty industrial settings.
- Mounting Compatibility: TP700 fits a 197x141 mm cutout; KP700 fits a 280x176 mm cutout – both designed as drop-in replacements for legacy OP 277, TP 177B, TP 277, and MP 177 panels.
- Software Capabilities: Configured via WinCC Comfort (TIA Portal), supports 4000 messages, 32 message classes, 500 process pictures, 2048 variables, vector/bar graphics, curve diagrams (f(t), f(x)), 300 recipes, 50 archives, and 100 VBS scripts.
- Power & Memory: 12 MB user memory for complex projects, with high-performance processor for fast screen transitions and data processing.
