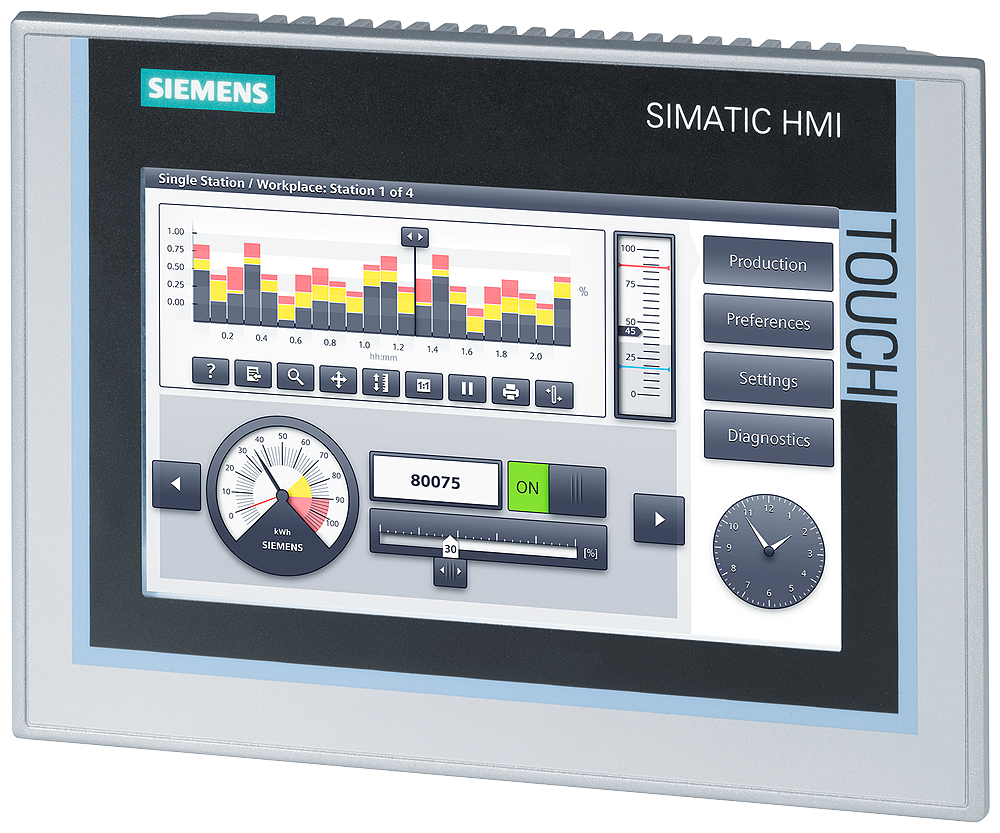

The Siemens SIMATIC HMI TP700 Comfort, model 6AV2124-0GC01-0AX0, is a high-performance 7-inch widescreen TFT touch panel designed for demanding industrial automation applications. This Comfort Panel combines intuitive touch operation with advanced connectivity, including dual PROFINET ports with an integrated switch and a PROFIBUS/MPI interface, ensuring seamless integration into modern control architectures. With its robust IP65 front protection and 12 MB user memory, the TP700 Comfort delivers reliable, real-time visualization and control for complex processes, making it an ideal choice for machine builders and system integrators.
| Technical Data |
Specification |
| Display |
7.0 inch TFT widescreen, 16 Mio colors |
| Resolution |
800 x 480 px |
| Control Elements |
Touch screen |
| User Memory |
12 MB |
| Interfaces |
2 x RJ45 Ethernet (PROFINET with switch), 1 x RS485/422 (PROFIBUS/MPI), 2 x USB-host, 1 x USB-device, 2 x SD card slot |
| Degree of Protection |
IP65 (front), NEMA 4x (front), IP20 (rear) |
| Installation Cutout |
197 x 141 mm (W x H) |
| Front Panel |
214 x 158 mm (W x H) |
| Device Depth |
63 mm |
| Configuration Software |
WinCC Comfort (TIA Portal) or higher |
| Messages |
4000 |
| Message Classes |
32 |
| Process Pictures |
500 |
| Variables |
2048 |
| Vector Graphics |
Supported |
| Bar Graphics |
Supported |
| Curve Diagrams |
f(t), f(x) |
| Recipes |
300 |
| Archiving |
50 |
| Visual Basic Scripts |
100 |
| Article No. |
6AV2124-0GC01-0AX0 |
- Connectivity: Dual PROFINET ports with integrated switch for daisy-chaining, plus PROFIBUS/MPI for legacy systems.
- User Memory: 12 MB for extensive project data, recipes, and archives.
- Software Compatibility: Fully configurable with WinCC Comfort (TIA Portal) for advanced HMI applications.
- Visualization Capabilities: Supports up to 500 process pictures, 2048 variables, and 4000 messages for comprehensive monitoring.
- Data Handling: 300 recipes and 50 archives enable flexible batch processing and historical data logging.
- Scripting: 100 Visual Basic Scripts for custom automation logic and dynamic behavior.
- Durability: IP65 front protection ensures reliable operation in dusty or wet environments.
