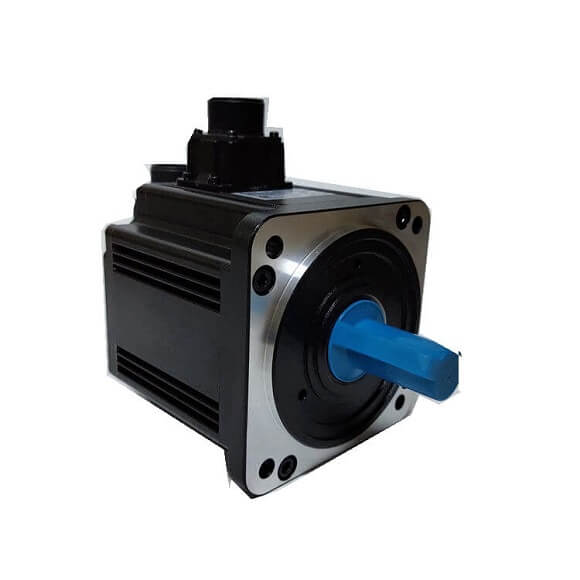

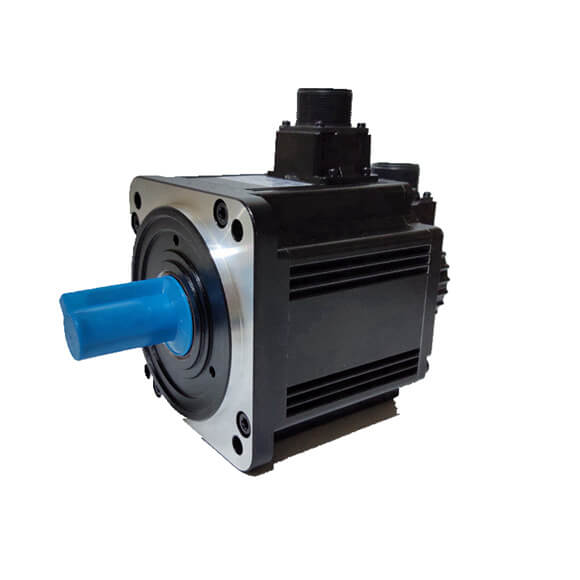

The ECMA-C11010RS is a premium 1 kW AC servo motor from the renowned Delta ECMA series, engineered for high-speed, high-torque applications in packaging, robotics, CNC, and textile machinery. Featuring a 20-bit incremental encoder, this low inertia motor delivers precise feedback for closed-loop control, ensuring minimal settling time and excellent tracking. The RS configuration includes both an oil seal and a key-way with screw holes, providing robust shaft protection and easy coupling integration. Compatible with Delta ASD-A2 series drives (e.g., ASD-A2-1021-B/L/U/M), it supports basic or full closed-loop control with optional CANopen bus. Backed by rigorous quality testing, this unit is 100% new and original, ready to ship globally.
| Parameter |
Specification (ECMA-C11010RS) |
| Rated Power |
1.0 kW |
| Rated Torque |
3.18 N·m |
| Maximum Torque |
9.55 N·m |
| Rated Speed |
3000 rpm |
| Maximum Speed |
5000 rpm |
| Rotor Inertia |
Low inertia (approx. 0.277 x 10⁻⁴ kg·m²) |
| Encoder Resolution |
20-bit absolute (1,048,576 pulses/rev) |
| Encoder Type |
Incremental with serial communication |
| Shaft Type |
Key-way with screw holes (RS variant) |
| Oil Seal |
Yes (included) |
| Brake |
No (without brake) |
| Insulation Class |
Class F (155°C) |
| Protection Rating |
IP40 (motor body); IP65 (shaft end with oil seal) |
| Operating Voltage |
220 VAC (single or three-phase depending on drive) |
| Feedback Cable |
Standard 20-bit encoder cable (supplied separately) |
| Weight |
Approx. 3.2 kg |
| Mounting Flange |
80 mm square (IEC standard) |
| Ambient Temperature |
0°C to +40°C (operating) |
| Humidity |
20% to 80% RH (non-condensing) |
