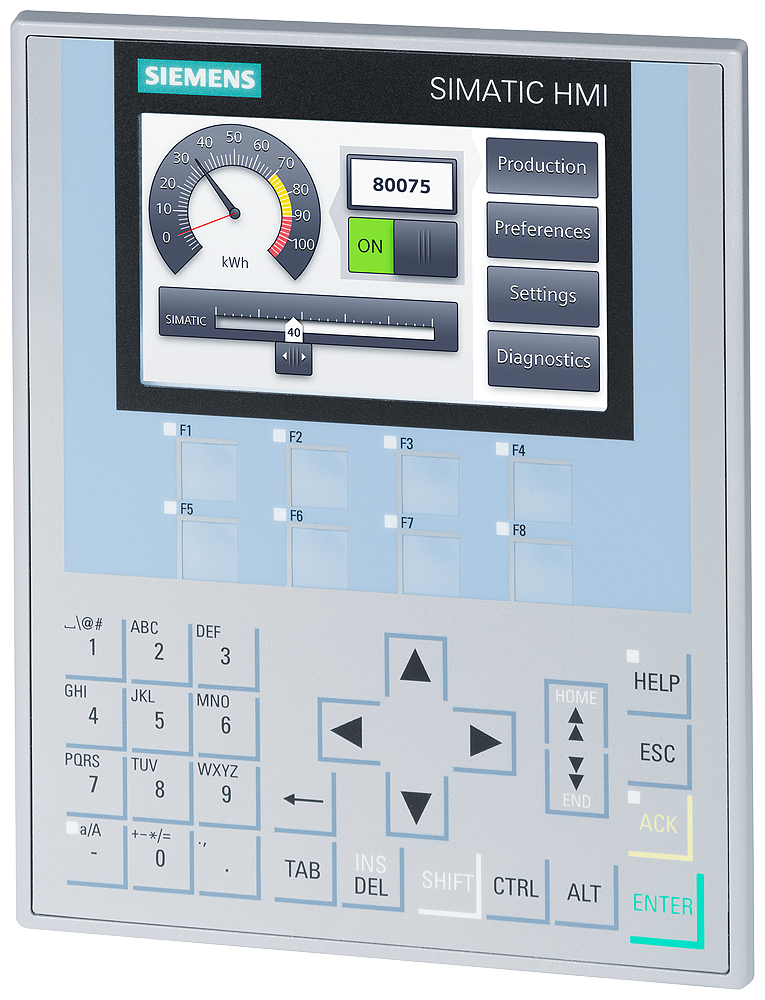

The 4.3 inch SIMATIC HMI KP400 and KTP400 Comfort (6AV2124-1DC01-0AX0) represent the pinnacle of compact human-machine interface technology, engineered by Siemens for demanding automation tasks. As the mounting-compatible successors to the OP77B and TP177 4.3 inch, these panels deliver superior performance, enhanced functionality, and a significantly higher screen resolution. The KP400 model excels in applications requiring mechanical keys within cramped spaces, while the KTP400 offers a touch-screen solution for space-constrained environments. Both units are built with robust industrial-grade components, ensuring reliable operation in extreme conditions. With a 4.3-inch TFT widescreen display, 16 million colors, and a 480 x 272 pixel resolution, operators gain clear, real-time data visualization. The devices support extensive software features including 4000 messages, 500 process pictures, 1024 variables, and 100 recipes, all configurable via WinCC Comfort (TIA Portal). Designed for seamless integration into PROFINET and PROFIBUS networks, this HMI family is ideal for machine builders and system integrators seeking high-end performance in a compact footprint.
| Technical Data |
KTP400 Comfort |
KP400 Comfort |
| Hardware |
- |
- |
| Display |
4.3 inch TFT widescreen display, 16 Mio colors |
| Resolution |
480 x 272 px |
| Control elements |
Touch screen, 4 function keys with LED |
Membrane Keypad (28 keys), 8 function keys with LEDs |
| User memory |
4 MB |
| Interfaces |
1 x RJ 45 Ethernet for PROFINET, 1 x RS 485/422 for PROFIBUS/MPI, 1 x USB-host, 1 x USB-device, 2 x SD card slot |
| Degree of protection |
IP 65, NEMA 4x (front if mounted) / IP 20 rear |
| Installation cutout |
122 x 98 mm (W x H) |
135 x 171 mm (W x H) |
| Front panel |
140 x 116 mm (W x H) |
152 x 188 mm (W x H) |
| Device depth |
48 mm |
48 mm |
| Software functions |
- |
- |
| Configuration software |
WinCC Comfort (TIA Portal) or higher |
| Messages |
4000 |
| Message classes |
32 |
| Process pictures |
500 |
| Variables |
1024 |
| Vector graphics |
x |
| Bar graphics |
x |
| Curve diagrams |
f (t), f (x) |
| Recipes |
100 |
| Archiving |
10 |
| Visual Basic Scripts |
50 |
| Article No. |
6AV2124-2DC01-0AX0 |
6AV2124-1DC01-0AX0 |
Additional Technical Insights:
- Connectivity & Expansion: Dual SD card slots enable flexible data logging and firmware updates, while USB host/device ports support peripherals like keyboards or barcode scanners.
- Environmental Durability: IP65 front protection (NEMA 4X) withstands dust, water jets, and washdown conditions, with IP20 rear for safe cabinet integration.
- Software Flexibility: Supports Visual Basic Scripts (50), curve diagrams f(t)/f(x), and vector/bar graphics for advanced visualization and logic control.
- Industrial Communication: Integrated PROFINET and PROFIBUS/MPI interfaces ensure seamless connectivity to PLCs, drives, and other automation components.
- Space-Saving Design: Ultra-slim 48 mm depth allows mounting in tight cabinets, with cutout dimensions tailored for each variant.
