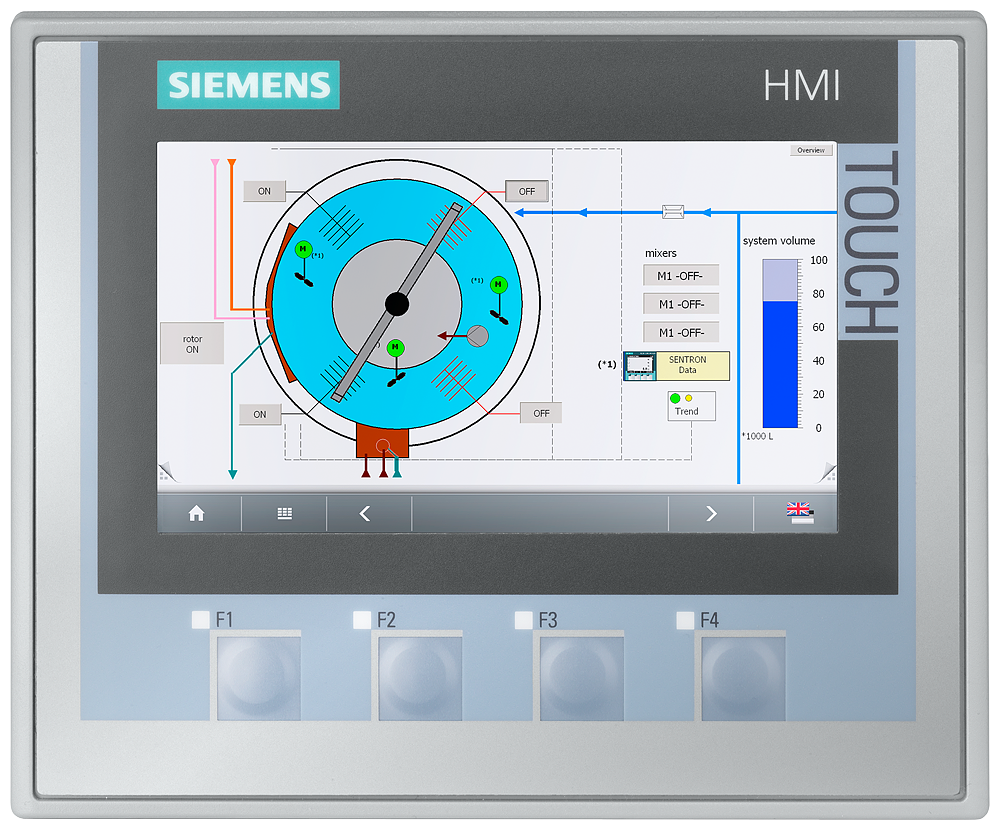

The 4.3 inch SIMATIC KTP400 Comfort and KP400 Comfort (Model 6AV2124-2DC01-0AX0) represent the pinnacle of compact HMI engineering, designed for demanding automation environments where space is at a premium. These panels deliver high-end performance, combining a vivid 4.3-inch TFT widescreen display with robust industrial features. As the direct successors to the OP77B and TP177 4.3 inch, they provide a significant leap in processing power, screen resolution, and functionality, ensuring seamless upgrades for legacy systems. Whether you need the intuitive touch interface of the KTP400 or the tactile durability of the KP400 membrane keypad, these units offer unmatched reliability and flexibility.
| Technical Data |
KTP400 Comfort |
KP400 Comfort |
| Hardware |
- |
| Display |
4.3 inch TFT widescreen display, 16 Mio colors |
| Resolution |
480 x 272 px |
| Control elements |
Touch screen, 4 function keys with LED |
Membrane Keypad (28 keys), 8 function keys with LED |
| User memory |
4 MB |
| Interfaces |
1 x RJ 45 Ethernet for PROFINET, 1 x RS 485/422 for PROFIBUS/MPI, 1 x USB-host, 1 x USB-device, 2 x SD card slot |
| Degree of protection |
IP 65, NEMA 4x (front if mounted) / IP 20 rear |
| Installation cutout |
122 x 98 mm (W x H) |
135 x 171 mm (W x H) |
| Front panel |
140 x 116 mm (W x H) |
152 x 188 mm (W x H) |
| Device depth |
48 mm |
48 mm |
| Software functions |
- |
| Configuration software |
WinCC Comfort (TIA Portal) or higher |
| Messages |
4000 |
| Message classes |
32 |
| Process pictures |
500 |
| Variables |
1024 |
| Vector graphics |
x |
| Bar graphics |
x |
| Curve diagrams |
f (t), f (x) |
| Recipes |
100 |
| Archiving |
10 |
| Visual Basic Scripts |
50 |
| Article No. |
6AV2124-2DC01-0AX0 |
6AV2124-1DC01-0AX0 |
- Display & Interaction: High-brightness TFT widescreen with 16 million colors ensures clear visualization. KTP400 variant provides a touch interface, while KP400 offers a rugged membrane keypad for harsh environments.
- Connectivity & Expansion: Integrated PROFINET and PROFIBUS/MPI interfaces enable direct integration into industrial networks. Dual USB ports and SD card slots facilitate data logging, firmware updates, and recipe management.
- Memory & Performance: 4 MB user memory supports extensive process pictures, messages, and recipes. Capable of handling 1024 variables and 50 Visual Basic Scripts for advanced automation tasks.
- Protection & Durability: IP65/NEMA 4x front protection ensures resistance to dust and water jets, suitable for washdown environments. Compact depth of 48 mm allows for flush panel mounting.
- Software Compatibility: Fully configurable with WinCC Comfort (TIA Portal) for streamlined engineering and scalable HMI solutions.
