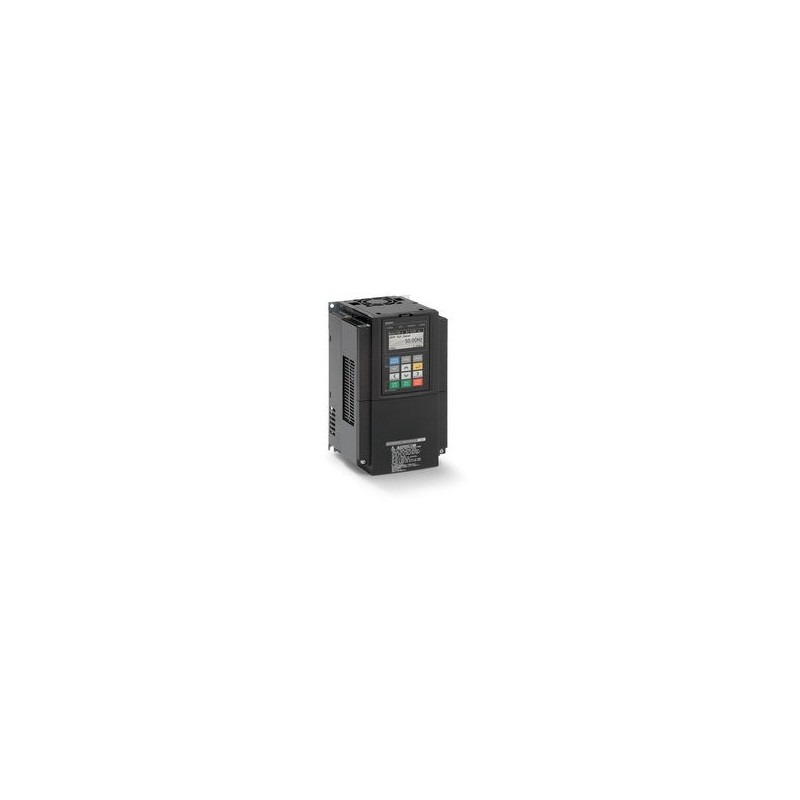

The 3G3RX-A4110-E1F OMRON is a state-of-the-art variable frequency drive designed to optimize motor performance in applications such as conveyors, pumps, fans, and compressors. Leveraging advanced sensorless vector control, this unit delivers exceptional starting torque and dynamic response, even at low speeds. Its compact footprint and built-in EMC filter simplify installation, while the intuitive keypad and software tools enable rapid setup and diagnostics. The drive supports both AC and DC bus configurations, with a focus on energy savings and reduced harmonics. Ideal for retrofit projects or new installations, the 3G3RX-A4110-E1F ensures reliable operation under demanding conditions.
| Parameter |
Specification |
| Model |
3G3RX-A4110-E1F |
| Manufacturer |
OMRON |
| Product Type |
General-Purpose Inverter |
| Rated Power (AC Models) |
11 kW (15 HP) |
| Rated Input Voltage |
3-Phase, 380-480 V AC, 50/60 Hz |
| Rated Output Current |
24 A (continuous) |
| Overload Capacity |
150% for 60 seconds, 200% for 3 seconds |
| Control Method |
Sensorless Vector Control, V/f Control, Advanced Open Loop |
| Frequency Range |
0.01 to 600 Hz |
| Starting Torque |
150% at 0.5 Hz |
| Protection Features |
Overcurrent, Overvoltage, Undervoltage, Overload, Overtemperature, Ground Fault |
| Communication Protocols |
Modbus RTU, BACnet MS/TP, Option Cards for Profibus, DeviceNet, EtherNet/IP |
| Built-in EMC Filter |
Yes (Class A / Class B selectable) |
| Enclosure Rating |
IP20 (NEMA 1 equivalent) |
| Ambient Temperature |
-10°C to +50°C (derating above 40°C) |
| Dimensions (W x H x D) |
140 mm x 260 mm x 180 mm |
| Weight |
Approx. 2.8 kg |
| Compliance |
CE, UL, cUL, RoHS |
| Standard Models |
Includes 3G3RX-A4110-E1F and similar series; AC and DC variants available |
