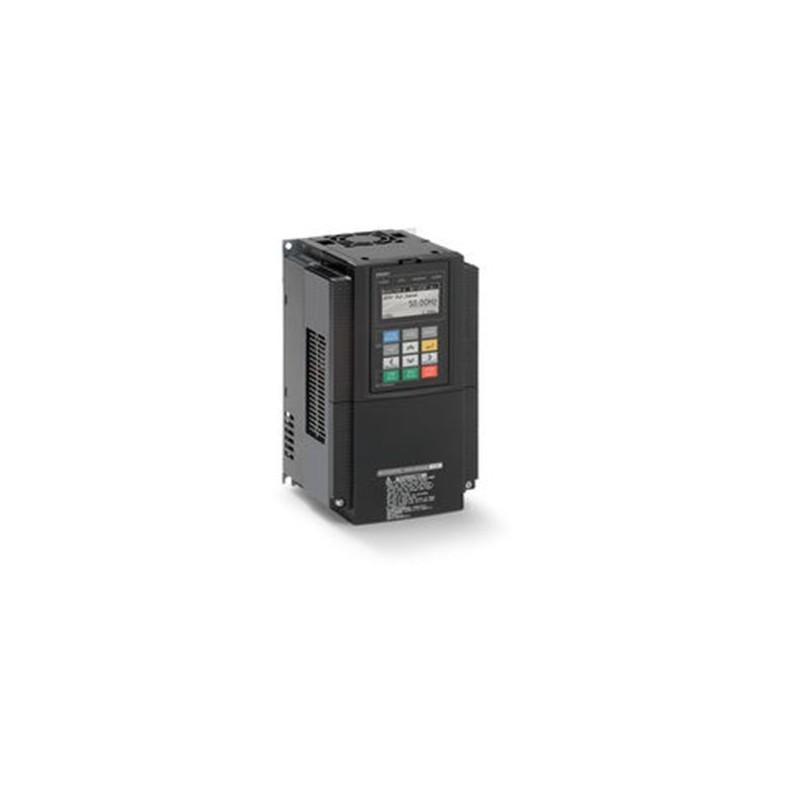

Omron 3G3RX-A2007-E1F AC Drive

Series#: Omron

Product Details

Model: 3G3RX-A2007-E1F – High-performance OMRON RX Series compact AC drive for precise motor control.
Rated for 0.75 kW (1 HP) output, 200-240V AC input, three-phase, ideal for small to medium industrial applications.
Built-in EMC filter (Class C2) for reduced electromagnetic interference, meeting global compliance standards.
Advanced vector control technology ensures smooth torque at low speeds and high dynamic response.
Easy-to-use keypad with multi-language support and USB programming port for quick setup.
Compact footprint saves panel space, with integrated braking transistor for dynamic braking capability.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The OMRON 3G3RX-A2007-E1F is a robust, space-saving AC drive from the RX Series, engineered for reliable speed and torque control in industrial automation environments. This specific model, the 3G3RX-A2007-E1F, operates on a 200-240V AC three-phase supply and delivers a nominal output of 0.75 kW (1 HP), making it a perfect match for conveyors, pumps, fans, and small machinery. It incorporates a built-in Class C2 EMC filter to minimize electrical noise, ensuring compliance with international standards without external components. The drive features sensorless vector control for precise low-speed torque and autotuning functions to optimize motor performance. Its compact design includes a standard braking transistor, allowing dynamic braking with an external resistor. The user-friendly control panel provides local parameter adjustment, and the USB port enables easy configuration via OMRON's CX-Drive software. For demanding applications, the 3G3RX-A2007-E1F supports Modbus RTU communication for seamless integration into PLC networks.

Parameter	Specification
Model Number	3G3RX-A2007-E1F
Series	OMRON RX Series
Input Voltage	200-240V AC, 3-Phase, 50/60 Hz
Output Power	0.75 kW (1 HP)
Output Current (Rated)	4.2 A
Input Current (Rated)	6.0 A
Control Method	Sensorless Vector Control, V/f Control
Frequency Range	0.1 – 400 Hz
Overload Capacity	150% for 60 seconds
Braking Transistor	Built-in
EMC Filter	Built-in, Class C2 (EN 61800-3)
Protection Rating	IP20 (NEMA 1)
Communication Protocol	Modbus RTU (RS-485), USB
Ambient Temperature	-10°C to +50°C (14°F to 122°F)
Storage Temperature	-20°C to +60°C (-4°F to 140°F)
Humidity	5% to 95% RH (non-condensing)
Altitude	Up to 1000 m (3300 ft) without derating
Weight	Approx. 1.2 kg (2.65 lbs)
Dimensions (W x H x D)	68 mm x 128 mm x 130 mm (2.68 x 5.04 x 5.12 inches)
Certifications	CE, UL, cUL, RoHS
