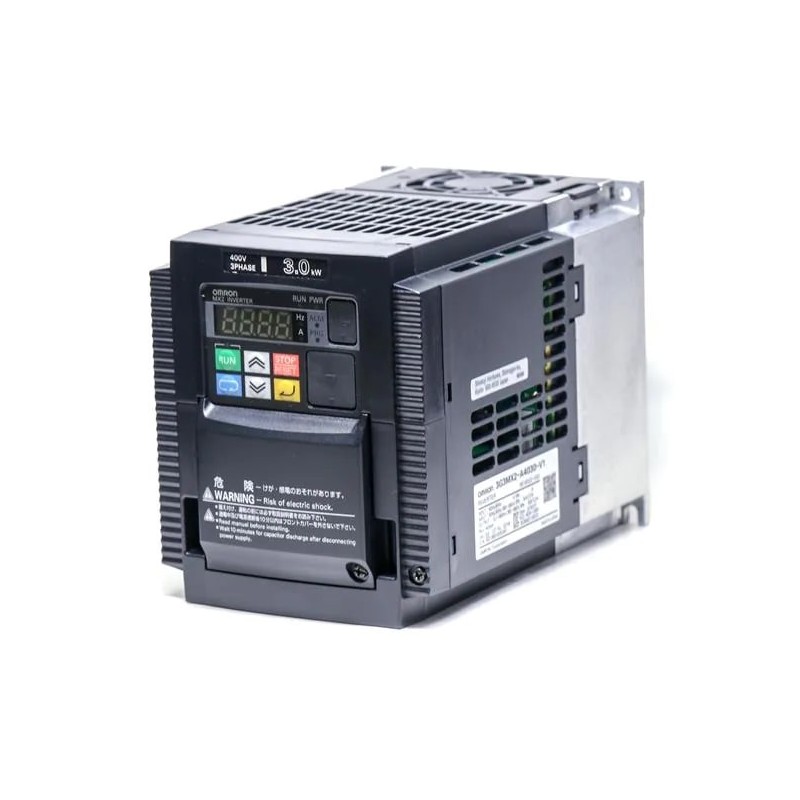

The OMRON 3G3MX2-A4030-E is a robust, high-torque inverter engineered for demanding industrial environments. This 400V AC drive delivers 30 kW of output power, leveraging advanced vector control technology to ensure precise speed and torque management across a wide range of motor applications. With built-in EMC compliance and a DC reactor, the 3G3MX2-A4030-E minimizes electrical noise and harmonic distortion, making it ideal for sensitive automation systems. Its flexible communication options, including Modbus RTU and CANopen, allow effortless integration into existing PLC networks, while the intuitive keypad and parameter cloning feature simplify commissioning and maintenance. Designed for longevity, this unit operates reliably in temperatures up to 50°C and includes a protective coating for harsh environments.
| Parameter |
Specification |
| Product Series |
3G3MX2 (MX2 Series) |
| Model Number |
3G3MX2-A4030-E |
| Input Voltage |
3-Phase 380-480 VAC, 50/60 Hz |
| Rated Output Power |
30 kW (40 HP) |
| Rated Output Current |
60 A (at 400 VAC) |
| Control Method |
V/f, Vector Control (with Auto-Tuning), Sensorless Vector Control |
| Frequency Range |
0.00 to 400.00 Hz |
| Overload Capacity |
150% for 60 seconds, 200% for 3 seconds |
| Protection Class |
IP20 (NEMA 1) |
| Ambient Temperature |
-10°C to +50°C (derating above 40°C) |
| Communication Interfaces |
Modbus RTU (RS-485), CANopen (optional) |
| Built-in Features |
EMC Filter (Class C3), DC Reactor, Braking Transistor |
| Keypad |
LED display with parameter copy function |
| Dimensions (W x H x D) |
Approx. 220 x 380 x 200 mm (without options) |
| Weight |
Approx. 8.5 kg |
| Certifications |
CE, UL, cUL |
