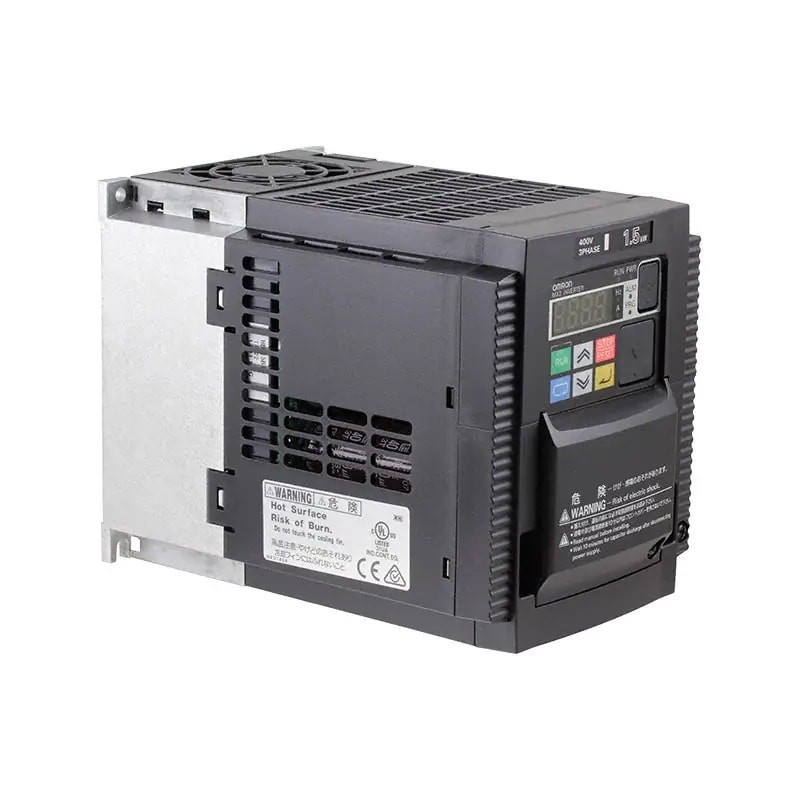

The OMRON 3G3MX2-A4015-E is a robust and versatile inverter designed for demanding industrial applications requiring precise motor control. Part of the MX2 series, this 400V-class, 1.5kW drive offers exceptional performance with sensorless vector control, enabling accurate speed and torque management even at low speeds. Its compact footprint and built-in dynamic braking capability make it suitable for space-constrained installations, while the integrated EMC filter ensures compliance with global electromagnetic compatibility standards. The 3G3MX2-A4015-E supports multiple control modes, including V/f and vector control, and features user-friendly programming via a digital keypad. With robust protection against overcurrent, overvoltage, and thermal overload, this inverter is engineered for long-term reliability in continuous operation.
| Parameter |
Specification |
| Model Number |
3G3MX2-A4015-E |
| Manufacturer |
OMRON |
| Product Series |
MX2 Series |
| Input Voltage |
3-phase 380–480V AC, 50/60 Hz |
| Output Power |
1.5 kW (2.0 HP) |
| Rated Output Current |
4.0 A |
| Control Method |
V/f control, Sensorless Vector Control (with auto-tuning) |
| Frequency Range |
0.1–400 Hz |
| Overload Capacity |
150% for 60 seconds, 200% for 3 seconds |
| Protection Functions |
Overcurrent, Overvoltage, Undervoltage, Thermal Overload, Ground Fault, Phase Loss |
| Communication Interface |
RS-485 Modbus RTU (standard), optional fieldbus modules |
| EMC Filter |
Built-in, meets EN 61800-3 Category C2 |
| Dynamic Braking |
Built-in braking transistor for up to 100% braking torque |
| Ambient Temperature |
-10°C to +50°C (derating above 40°C) |
| Enclosure Rating |
IP20 (open type) |
| Dimensions (W x H x D) |
Approx. 108 mm x 220 mm x 150 mm |
| Weight |
Approx. 1.6 kg |
| Certifications |
CE, UL, cUL, RoHS |
| Warranty |
Standard 12 months from date of purchase |
