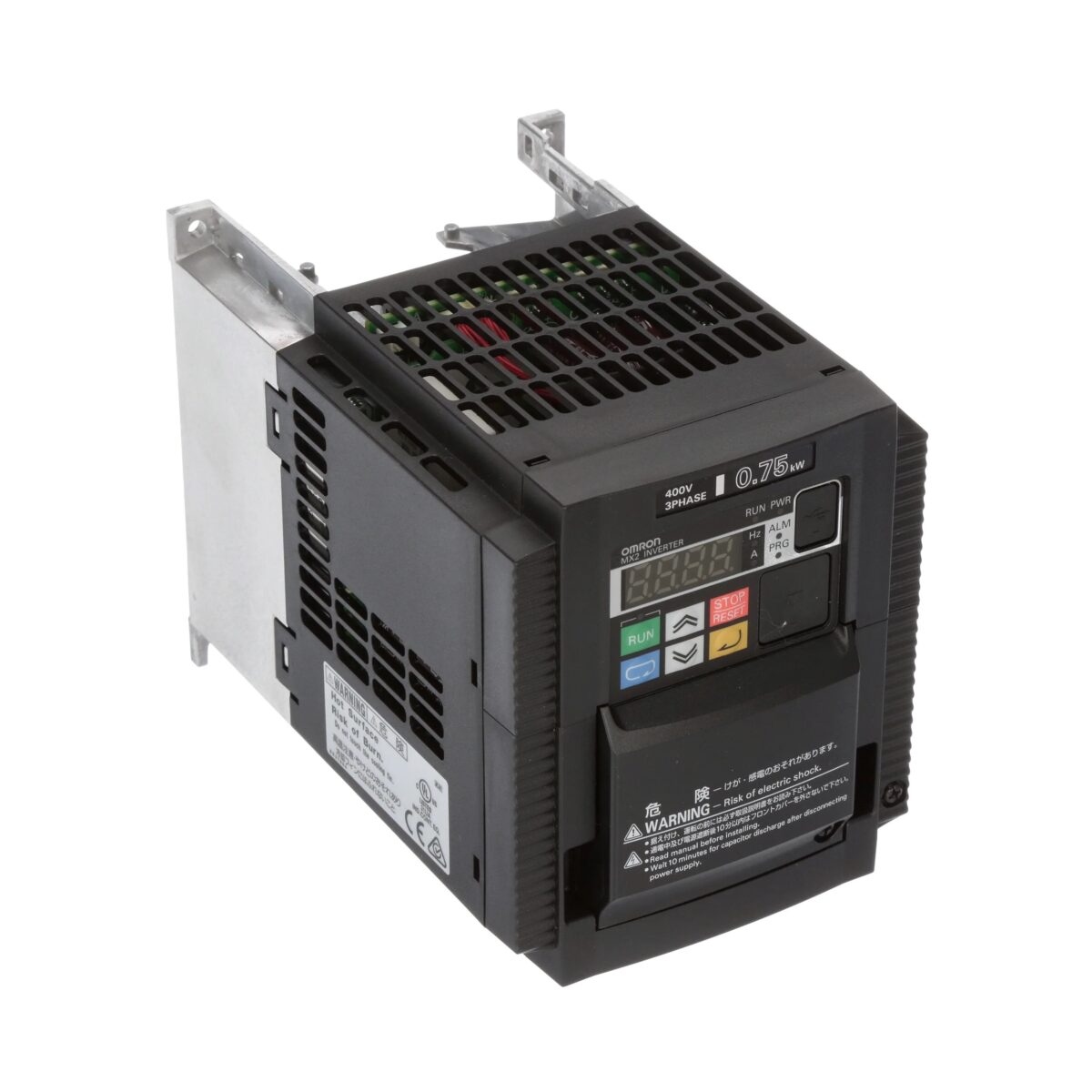

Omron 3G3MX2-A4007-V1 AC Drive

Series#: Omron

Product Details

Product Model: 3G3MX2-A4007-V1 OMRON – A high-performance general-purpose inverter designed for precise motor control in industrial automation.
Advanced Vector Control: Delivers superior torque and speed regulation for asynchronous motors, ideal for demanding applications.
Built-in PLC Functionality: Integrated programmable logic control reduces external components and simplifies system design.
Wide Input Voltage Range: Supports 3-phase 380-480V AC input, ensuring stable operation in fluctuating industrial power environments.
Compact and Rugged Design: Space-saving enclosure with IP20 protection, suitable for panel mounting in harsh factory conditions.
Comprehensive Protection: Features overcurrent, overvoltage, and thermal overload safeguards to extend equipment lifespan.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The OMRON 3G3MX2-A4007-V1 is a robust variable frequency drive engineered for reliable motor control in medium-voltage industrial settings. This model, part of the acclaimed MX2 series, integrates advanced sensorless vector control to optimize energy efficiency and torque response across a wide speed range. With a rated output of 0.75 kW (1 HP) and a compact footprint, it is ideal for conveyor systems, pumps, fans, and packaging machinery. The drive features an intuitive keypad interface, built-in PID control, and support for Modbus RTU communication, enabling seamless integration into existing automation networks. Its rugged construction and comprehensive protection features ensure long-term durability even in challenging environments.

Parameter	Specification
Product Model	3G3MX2-A4007-V1
Series	MX2 Series
Rated Output Power	0.75 kW (1 HP)
Rated Output Current	2.1 A (at 400V AC)
Input Voltage	3-Phase 380-480V AC ±10%
Input Frequency	50/60 Hz ±5%
Output Voltage	3-Phase 0-480V AC (Proportional to Input)
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f, Sensorless Vector Control, V/f with PG (Optional)
Overload Capacity	150% for 60 seconds, 200% for 3 seconds (Heavy Duty)
Protection Rating	IP20 (Panel Mount)
Ambient Operating Temperature	-10°C to +50°C (Derate above 40°C)
Communication Interface	Modbus RTU (RS-485) Standard; Optional: DeviceNet, Profibus, CANopen
Built-in Functions	PID Control, Multi-Speed Operation, S-Curve Acceleration/Deceleration, DC Injection Braking
Digital Inputs	6 (Programmable)
Digital Outputs	2 (Relay and Transistor)
Analog Inputs	2 (0-10V, 4-20mA)
Analog Outputs	1 (0-10V)
Dimensions (W x H x D)	68 mm x 128 mm x 110 mm (Approx.)
Weight	0.8 kg (Approx.)
Compliance	CE, UL, cUL, RoHS
Warranty	12 Months from Date of Purchase
